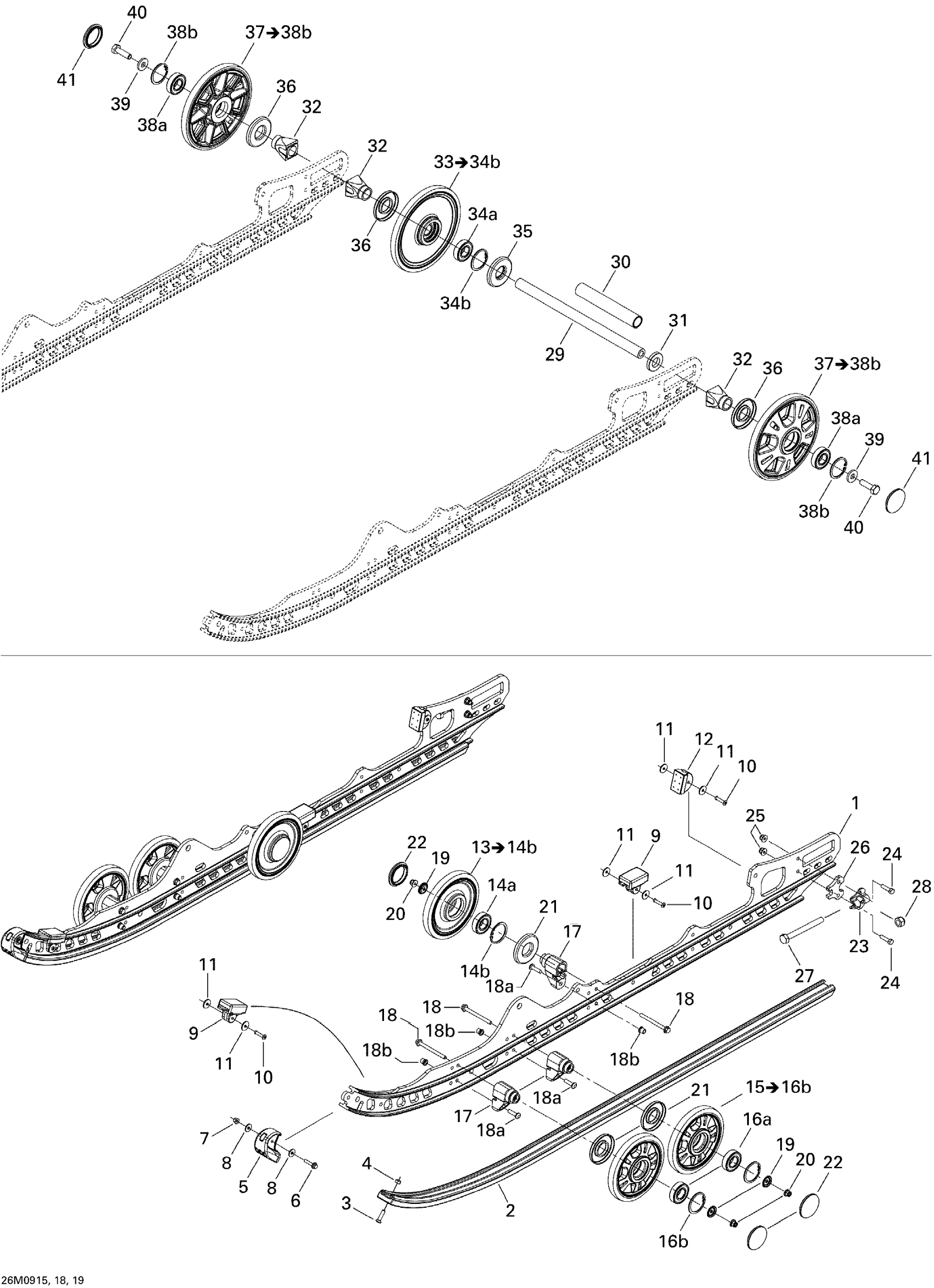

Ski-Doo MX Z Renegade X 1200 4-TEC, 2009 Rear Suspension Renegade X Diagram

#

Description
Price

1

RUNNER 137'' - Call your local BRP dealership

503191902

Unavailable

2

Black, Slider Shoe 137''

503191306

$29.49

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Hex. Flange Elastic Nut M5

233251414

$1.04

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$12.99

10

Pop Rivet 3/16"

293150142

$2.29

11

Washer

503191273

$1.35

12

Rubber Stopper

503191291

$19.99

13

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

14a

Ball Bearing | Package-STD

503190396

$14.30

14b

Retaining Ring

415129371

$12.01

15

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

15

Wheel 141 mm Ass'y, Yellow | LE Model

503191621

$37.99

16a

Ball Bearing | Package-STD

503190396

$14.30

16b

Retaining Ring

415129371

$12.01

17

Casted Support

503193894

$16.49

18

Hex. Flange Screw M6 X 70

207667056

$4.44

18a

Hex. Flange Screw M6 X 25

207662544

$0.64

18b

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Wheel Cup M6

503191820

$4.99

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Labyrinth Seal

503190434

$6.09

22

Wheel Cap

570063600

$3.49

23

Tensioner

503192583

$8.29

24

Hex. Screw M6 X 30

207063044

$1.26

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

Spacer

503193250

$16.49

27

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

28

Elastic Locking Nut M10 X 1.5

233601416

$1.69

29

Rear Axle

503190429

$59.99

30

Spacer

503196317

$18.49

31

Washer

503190432

$14.22

32

Rear Wheel Spacer

503190428

$8.14

33

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$51.99

34a

Ball Bearing | Package-STD

503190396

$14.30

34b

Retaining Ring

415129371

$12.01

35

Labyrinth Seal

503190682

$6.19

36

Labyrinth Seal

503190434

$6.09

37

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$51.99

37

Yellow Wheel Ass'y, 180 mm | LE Model

503191626

$51.99

38a

Ball Bearing | Package-STD

503190396

$14.30

38b

Retaining Ring

415129371

$12.01

39

Washer

503190439

$5.93

40

Hex. Screw With Nylon

250000019

$1.69

41

Wheel Cap

570063600

$3.49
