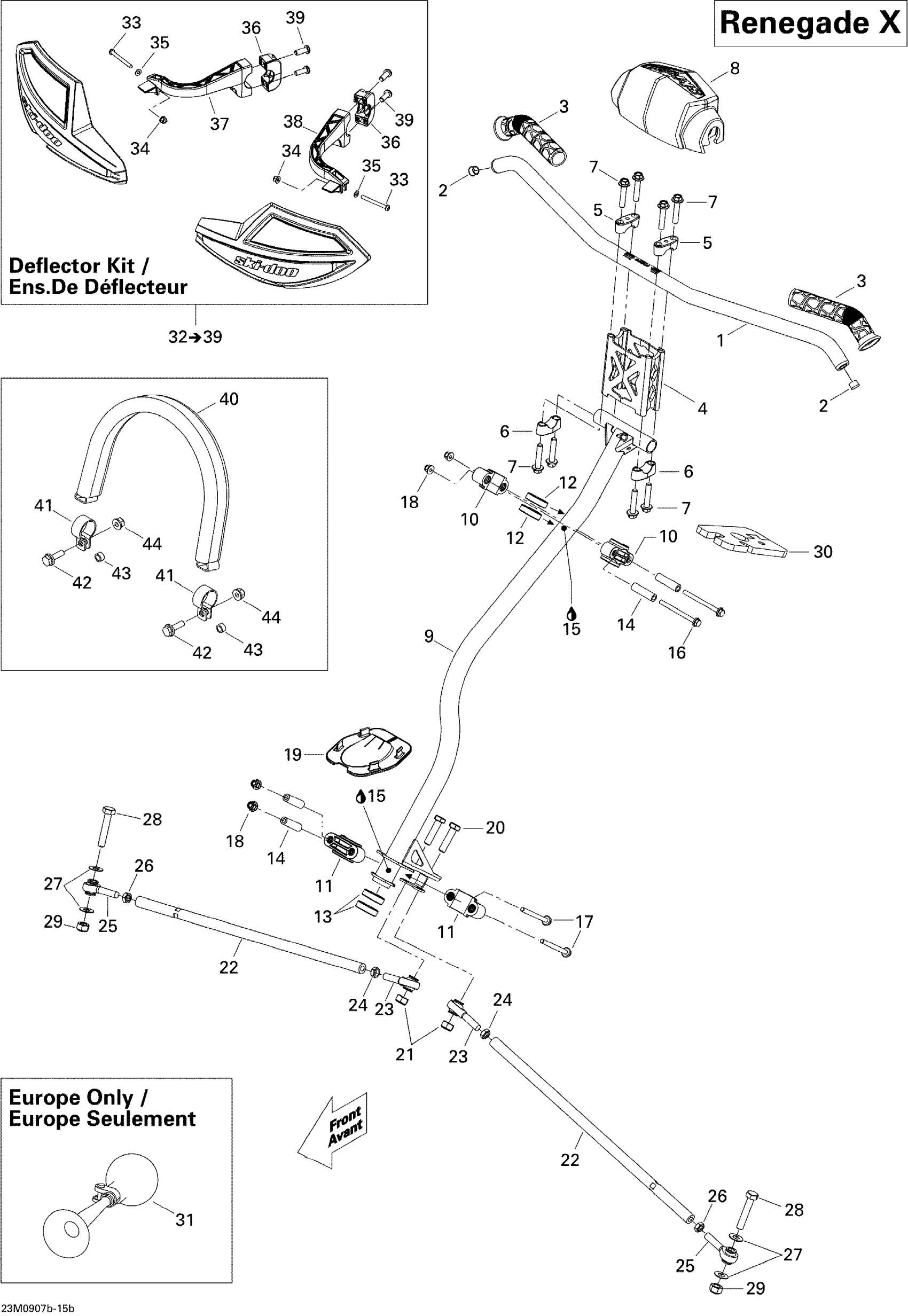

Ski-Doo MX Z Renegade X 1200 4-TEC, 2009 Steering RENEGADE X Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

2

CAP - Call your local BRP dealership

506152425

Unavailable

3

Grip

506152486

$14.27

4

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

5

Steering Support | Includes 40 to 40a

506152751

$11.58

6

Steering Support | Includes 40 to 40a

506152751

$11.58

7

Hex. Flange Screw M8 X 40

250000352

$3.16

8

Steering Pad

506152192

$52.96

9

Steering Column

506152964

$183.55

10

Upper Half Housing

506152219

$1.63

11

Lower Half-Housing

506152217

$5.40

12

Upper Vibration Ring

506152292

$0.70

13

Lower Vibration Ring

506152518

$4.39

14

Housing Bushing

506152297

$9.93

15

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

16

Hex. Flange Screw M6 X 70

207667056

$4.15

17

Hex. Flange Screw M6 X 70

207667044

$0.81

18

Elastic Flange Nut M6 X 1.0

233261416

$2.00

19

Plate

506152163

$9.93

20

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

21

Elastic Stop Nut M10

232500416

$1.79

22

Tie-Rod Ass'y

506152496

$58.18

23

LH Thread Ball Joint

506152081

$38.78

24

LH Threaded Hex. Jam Nut M10

250100016

$0.70

25

RH Threaded Ball Joint

506152019

$38.78

26

RH Threaded Hex. Jam Nut M10

732610010

$0.70

27

Washer

506152194

$4.28

28

Hex. Screw M10 X 55

207005544

$2.12

29

Elastic Stop Nut M10

232500416

$1.79

30

CUSHION - Call your local BRP dealership

506152334

Unavailable

31

Horn

549011291

$34.30

32

Deflector Kit | Includes 32 to 39

517304110

Unavailable

33

Socket Head Screw M4 X 40 | X

205444086

$1.63

34

Elastic Stop Nut M4

232541484

$0.70

35

Flat Washer 4 mm

234041480

$0.70

36

U-Clamp | XT

517303264

$11.09

37

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

38

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

39

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

40

Strap Ass'y | Package XMR

506152115

$41.76

41

Black Support Plate

506152536

$8.34

42

Hex. Flange Screw M6 X 20

207662084

$0.96

43

Bushing | Package XMR

506152156

$5.19

44

Hex. Flange Elastic Nut M6

233261494

$1.45
