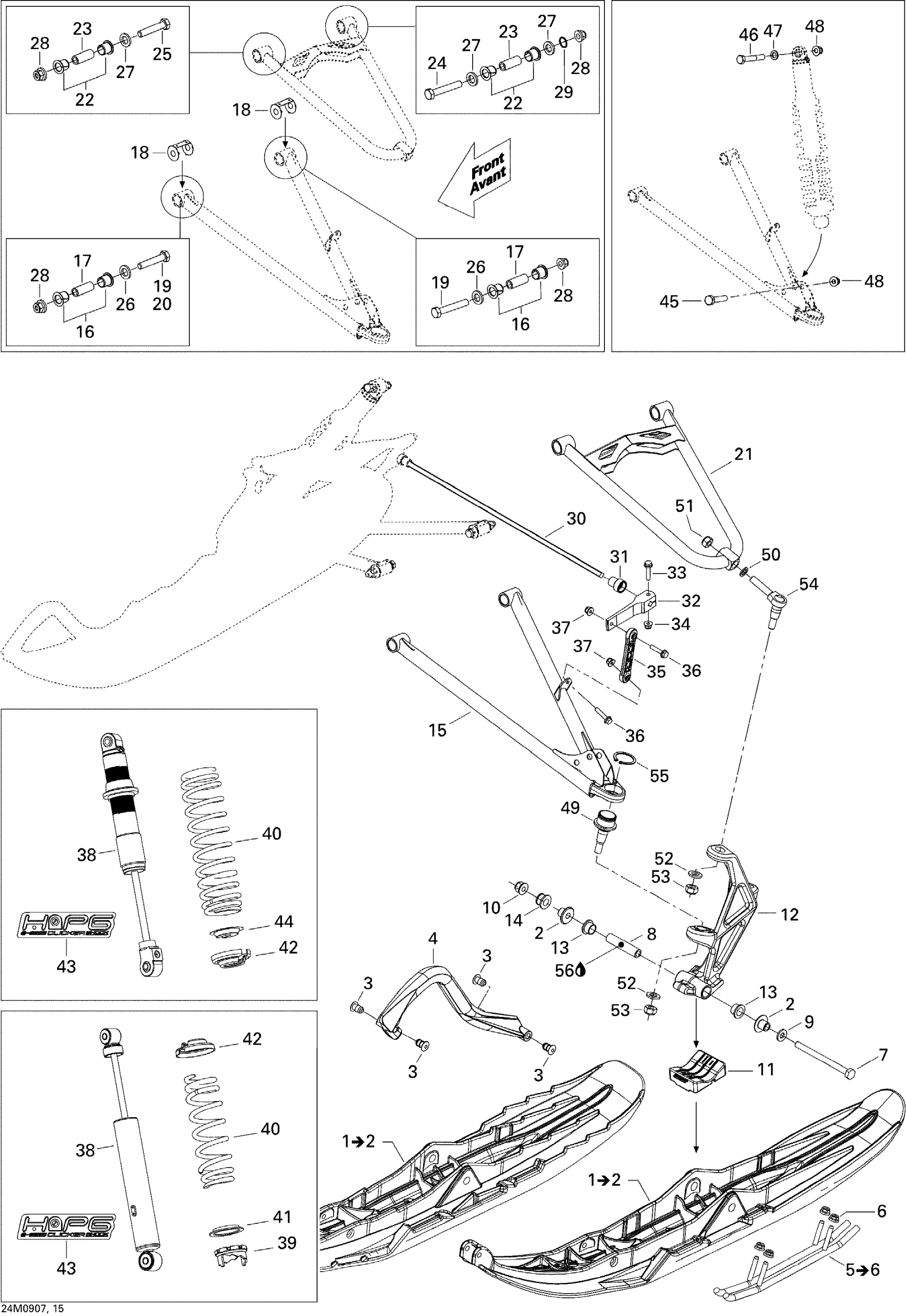

Ski-Doo MX Z Renegade X 1200 4-TEC, 2009 07- Front Suspension And Ski Renegade X Diagram

#

Description
Price

1

RH Pilot Ski 5.7, Black

505072478

Unavailable

1

LH Pilot Ski 5.7, Black

505072479

Unavailable

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$179.99

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$179.99

2

Ski Bushing

505071781

$16.18

3

Retainer 17mm long

505071812

$5.95

4

Black, Handle

505070963

$35.99

5

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

8

Spacer

506133300

$23.99

9

Washer

732900049

$0.58

10

Hex. Flange Elastic Nut M10

233201414

$1.58

11

Ski Stopper

505071779

$18.78

12

Clear, LH Ski Leg

505073007

$249.99

12

Clear, RH Ski Leg

505073008

$239.99

13

Leg Bushing

505072690

$12.49

14

Spacer

505071999

$14.99

15

Black, RH Lower Arm

505072664

$204.99

15

Black, LH Lower Arm

505072665

$204.99

16

Bushing

505072208

$3.28

17

Bushing

505072214

$18.89

18

Wear Plate

505072634

$6.29

19

Screw Hex. M10 X 70

250001024

$2.11

20

Hex. Screw M10 X 75

250001063

$13.16

21

Upper Arm | SE White/White Models

505072374

$154.99

22

Bushing

505072250

$3.28

23

Sleeve

505072143

$9.00

24

Screw Hex. M10 X 60

250001023

$2.11

25

Screw Hex. M10 X 50

250001022

$1.69

26

Washer

503189564

$0.74

27

Washer

505072392

$4.76

28

Hex. Flange Elastic Nut M10

250100165

$0.85

29

O-Ring

505072448

$2.32

30

Stabilisator

505072602

$68.99

31

Bushing

505072064

$2.32

32

Stabilisator Lever

505072394

$18.73

33

Hex. Flange Screw M6 X 30

207663046

$1.69

34

Elastic Flange Nut M6 X 1.0

233261416

$2.11

35

Sway Bar Double Joint Link

505072204

$21.99

36

Hex. Flange Screw M6 X 30

207663046

$1.69

37

Elastic Flange Nut M6 X 1.0

233261416

$2.11

38

FRONT SHOCK HPG - Call your local BRP dealership | Includes 1 to 7

505072491

Unavailable

38

FRONT SHOCK HPG - Call your local BRP dealership | Includes 1 to 7

505072491

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Deep Black, Spring

505072528

$67.99

40

YELLOW SPRING - Call your local BRP dealership | RENEGADE ADR 1000

505072514

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Spring Stopper

706200881

$12.99

43

HPG DECAL - Call your local BRP dealership

505072222

Unavailable

43

HPG DECAL - Call your local BRP dealership

505072222

Unavailable

44

Cap

706200785

$4.69

45

Hex. Screw M10 X 55

207005544

$2.22

46

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

47

Washer

503189564

$0.74

48

Hex. Flange Elastic Nut M10

233201414

$1.58

49

Ball Joint

505073636

$51.99

50

Washer

503189276

$3.28

51

Hex. Elastic Hex. Nut M12

250100089

$0.46

52

Flat Washer 12 mm

234021410

$0.72

53

Hex. Elastic Hex. Nut M12

250100089

$0.46

54

Upper Ball Joint

505072257

$17.58

55

Circlip

293370035

$2.64

56

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
