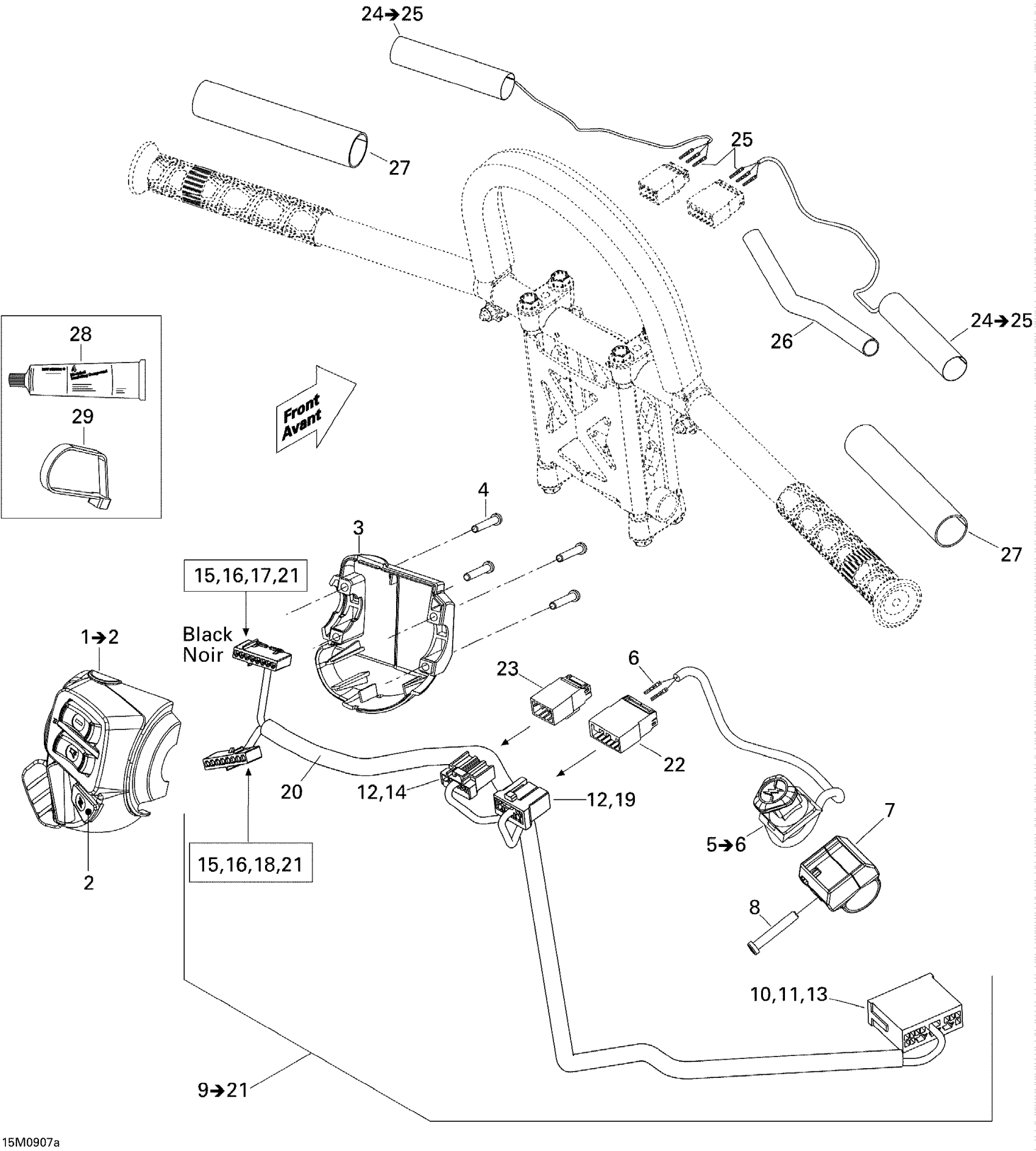

Ski-Doo MX Z Renegade 800R Power T.E.K., 2009 10- Steering Wiring Harness 800R Renegade Diagram

#

Description
Price

1

LH Housing

515177022

$229.99

2

Start/RER Button

515176088

$20.99

3

Switch Housing Plate

515175926

$20.99

4

Torx Screw #8-18

250000263

$1.04

5

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

6

Male Terminal

515175232

$1.58

7

Kill Switch Support

515176825

$10.49

8

Torx Screw #8-18

250000263

$1.04

9

Wiring Harness | Includes 9 to 21

515176509

Unavailable

10

Male Terminal

515175232

$1.58

11

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

12

Female Terminal

515175231

$4.39

13

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

14

Female Terminal Housing, 6 Circuits

515175543

$9.49

15

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

16

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

17

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

18

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

19

Female Terminal Housing, 8 Circuits

515175819

$7.62

20

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

21

Female Terminal

515175941

$2.69

22

Male Terminal Housing, 8 Circuits

515175817

$8.79

23

Male Terminal Housing, 6 Circuits

515175662

$8.79

24

Heating Element

506152422

$99.99

25

Male Terminal

515175232

$1.58

26

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

27

Insulant

506153178

$12.99

28

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

29

Tie Wrap 94 mm | 4X4

293750001

$1.03

29

Tie Wrap 142 mm

293750002

$1.25

29

Tie-Rap 180 mm

414115200

$0.11

29

Tie Wrap 368 mm

293750008

$1.04
