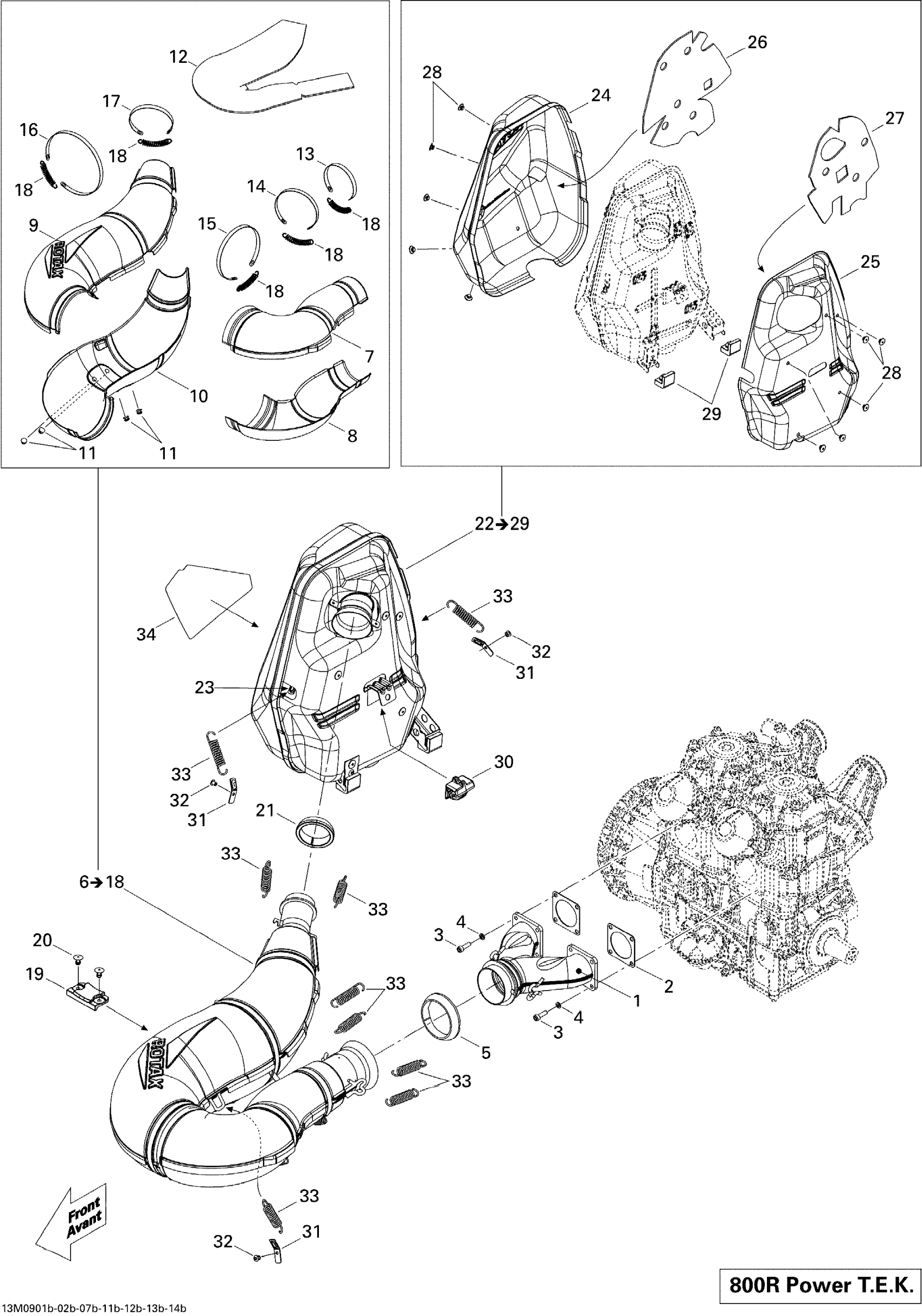

Ski-Doo MX Z Renegade 800R Power T.E.K., 2009 Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold

420673370

Unavailable

2

Gasket

420430480

$12.67

3

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.52

4

Washer

514053953

$0.73

5

Exhaust Gasket

514053487

$25.34

6

EXHAUST TUNED PIPE - Call your local BRP dealership

514055061

Unavailable

7

FRONT UPPER HALF ENVELOPPE - Call your local BRP dealership

514054988

Unavailable

8

FRONT LOWER HALF ENVELOPPE - Call your local BRP dealership

514054989

Unavailable

9

Rear Upper Half Enveloppe

514055039

$65.64

10

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$51.46

11

Henrob Rivet

293150091

$0.73

12

INSULATING WOOL - Call your local BRP dealership

514054273

Unavailable

13

Retaining Strap

514053536

$12.21

14

Retaining Strap

514054408

$10.24

15

Retaining Strap

514054409

$10.24

16

Retaining Strap

514054410

$10.24

17

Retaining Strap

514053499

$8.10

18

Spring

514053643

$6.01

19

Bumper

514054275

$14.21

20

Pop Rivet 3/16"

293150103

$0.52

21

Exhaust Gasket

514054174

$26.84

22

MUFFLER_EXHAUST ASSY - Call your local BRP dealership

514054965

Unavailable

23

Spring Bracket

514054155

Unavailable

24

RH Deflector

514054984

$52.96

25

LH DEFLECTOR - Call your local BRP dealership | 800R ETEC

514054202

Unavailable

26

RH INSULATING WOOL - Call your local BRP dealership

514054298

Unavailable

27

LH Insulating Wool

514054299

$18.63

28

Pop Rivet 3/16”

390910000

$0.55

29

Lower Stopper

514054274

$18.63

30

Upper Stopper

514054606

$17.13

31

Spring Bracket

514054522

$6.09

32

Pop Rivet 3/16"

390402200

$0.30

33

Spring

514054226

$6.01

34

Reflective Sheet

514054488

$11.28
