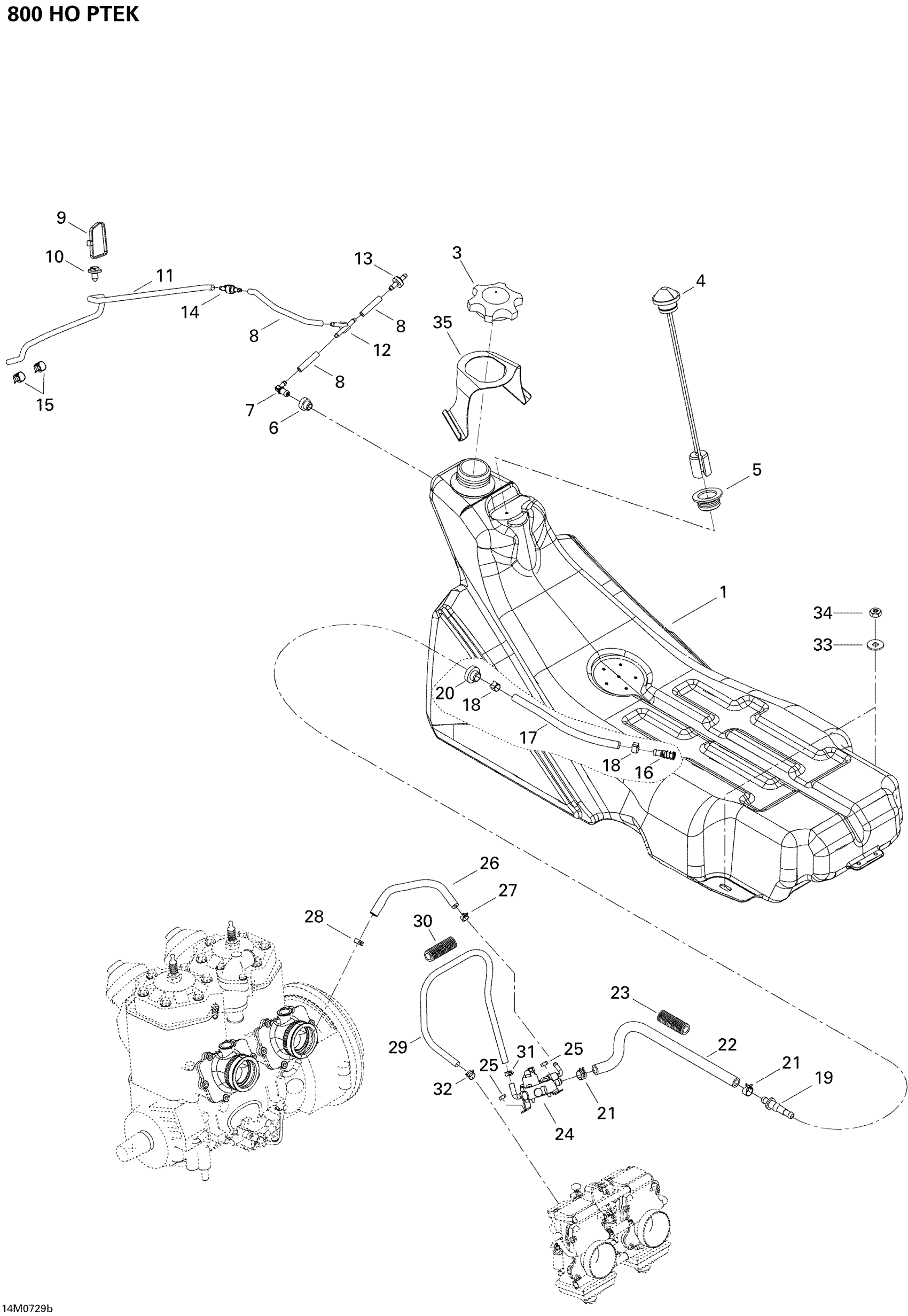

Ski-Doo MX Z Renegade 800 HO PTEK, 2007 02- Fuel System 800 HO PTEK Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033171

Unavailable

3

Fuel Tank Cap

513033025

$24.49

4

FUEL GAUGE - Call your local BRP dealership

513033358

$48.99

5

Grommet

293720058

$11.99

6

Grommet

513032908

$10.49

7

Male Connector

414580700

$4.12

8

Polyurethane Hose 10000Mm Long

219704410

$56.99

9

Tie-Rap 180 mm

414115200

$0.11

10

Mount Dart

293730040

$1.04

11

Polyurethane Hose 10000Mm Long

219704410

$56.99

12

Y-Fitting

293710059

$9.69

13

Check Valve

275500398

$10.99

14

Check Valve

275500505

$31.99

15

Spring Clamp

414554800

$0.88

16

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

17

Hose

513033070

$14.99

18

Norma Spring Clamp

513033010

$9.69

19

Male Connector

414872700

$1.90

20

Grommet | Europe

707800347

$10.49

21

Crimp Clamp

293650053

$3.09

22

Formed Hose

513033374

$30.99

23

Tubing 16 Mm 1000Mm Long

219704408

$7.49

24

Fuel Pump

403901812

$84.99

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

HOSE - Call your local BRP dealership

513033035

Unavailable

27

Spring Clamp

414415200

$0.88

28

Universal Spring Clamp

513033029

$5.39

29

Tube

415117800

Unavailable

30

Tubing 10 MM 1000MM Long

219704407

$2.79

31

Oetiker Clamp

293650042

$3.09

32

Spring Clamp

414420700

$0.72

33

Flat Washer 8 mm

234082410

$1.47

34

Hex. Elastic Stop Nut M8

232581414

$0.56

35

SUPPORT - Call your local BRP dealership

513033066

Unavailable
