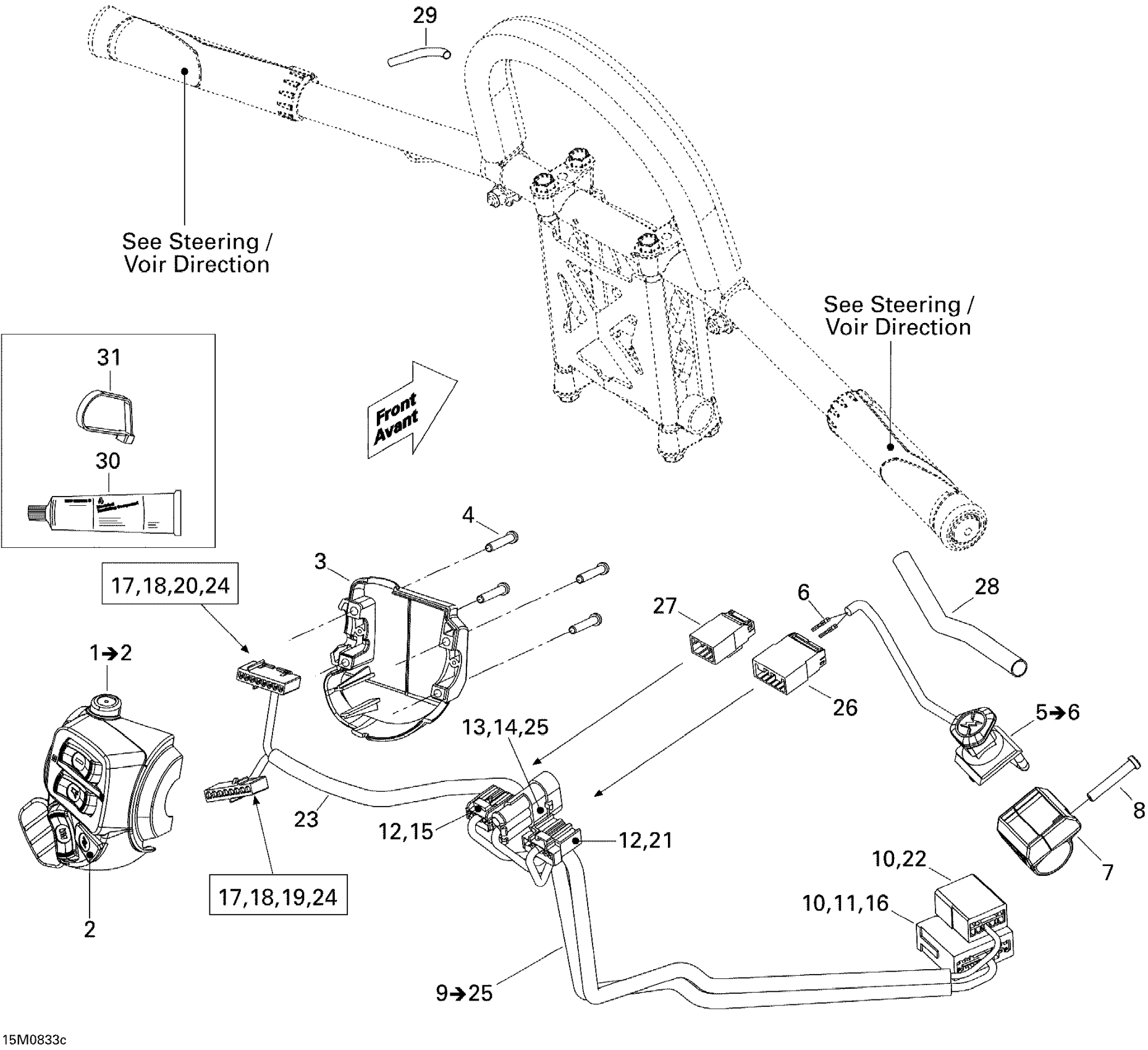

Ski-Doo MX Z RENEGADE 600 HO SDI, 2008 Steering Wiring Harness 600HO SDI, Renegade Diagram

#

Description
Price

1

LH SWITCH HOUSING - Call your local BRP dealership | Includes 1 to 2

515176685

Unavailable

2

Start/RER Button

515176088

$18.43

3

Switch Housing Plate

515175926

$17.66

4

Torx Screw #8-18

250000263

$1.02

5

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

6

Male Terminal

515175232

$1.49

7

Kill Switch Support

515176825

$8.60

8

Torx Screw #8-18

250000263

$1.02

9

Steering Wiring Harness | Includes 9 to 25

515176565

Unavailable

10

Male Terminal

515175232

$1.49

11

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

12

Female Terminal

515175231

$4.12

13

Housing

710000568

$10.83

14

Wire Seal

278001013

$2.72

15

Female Terminal Housing, 6 Circuits

515175543

$8.57

16

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

$13.69

17

FEMALE TERMINAL - Call your local BRP dealership

515175808

$5.74

18

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

$7.65

19

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

$2.69

20

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

21

Female Terminal Housing, 8 Circuits

515175819

$7.46

22

Male Terminal Housing, 8 Circuits

515175817

$8.57

23

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

$37.66

24

Female Terminal

515175941

$2.48

25

Male Terminal

515176164

$6.43

26

Male Terminal Housing, 8 Circuits

515175817

$8.57

27

Male Terminal Housing, 6 Circuits

515175662

$8.57

28

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

$37.66

29

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

30

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

31

Tie Wrap 94 mm | 4X4

293750001

$0.83

31

Tie Wrap 142 mm

293750002

$0.88

31

Tie-Rap 180 mm

414115200

$0.09

31

Tie Wrap 368 mm

293750008

$0.85
