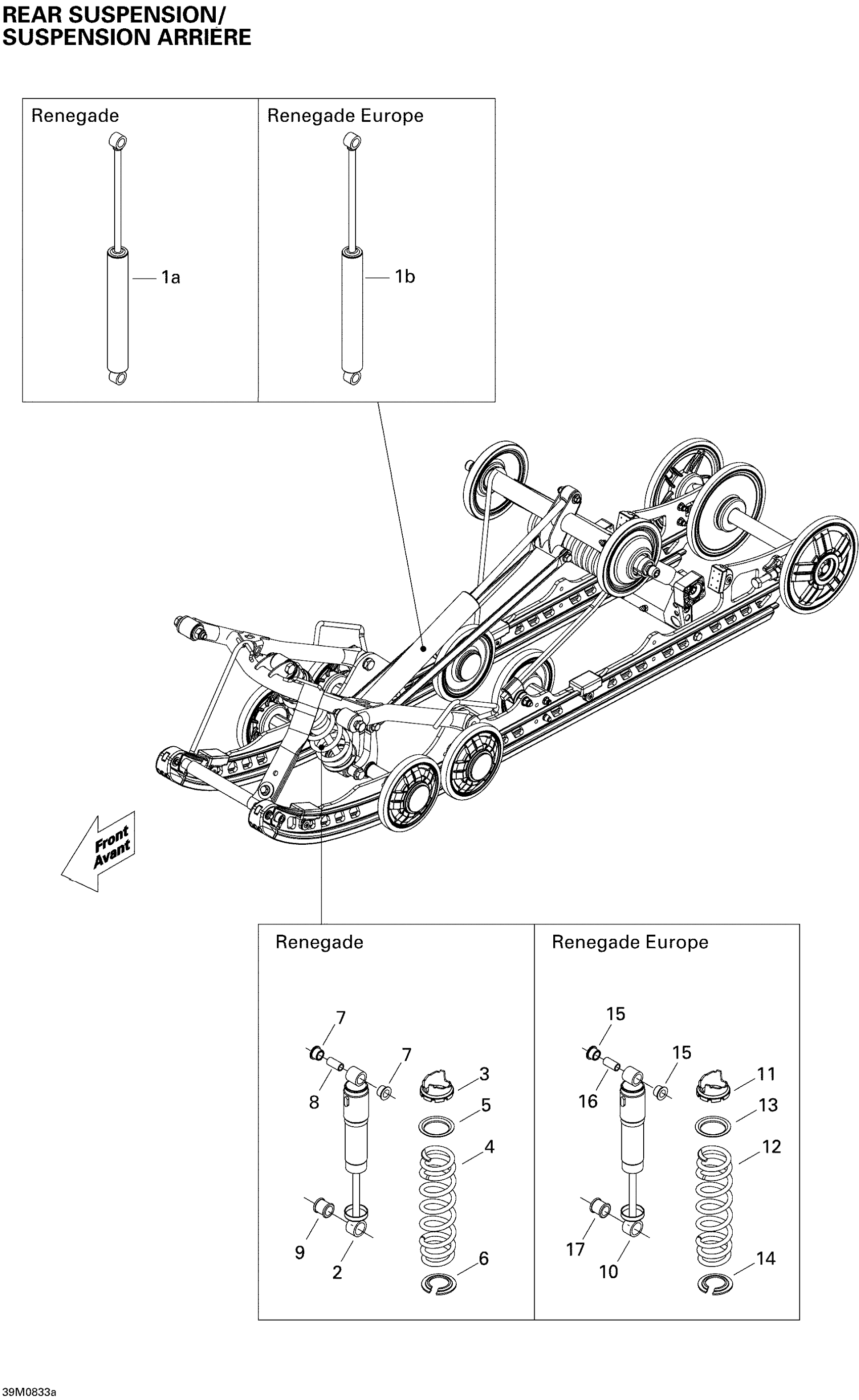

Ski-Doo MX Z RENEGADE 600 HO SDI, 2008 Rear Suspension Shocks Renegade Diagram

#

Description
Price

1a

Rear Shock HPG SEAL

503193192

$231.31

1b

REAR SHOCK - Call your local BRP dealership | Europe

503191815

Unavailable

2

Center Shock

503191799

Unavailable

3

Adjustment Cam

505073625

$11.82

4

Black, Spring

503191329

$64.90

5

Spring Guide

503191872

$2.12

6

Spring Stopper

503194270

$16.39

7

Urethane Bushing

503189117

$6.67

8

Bushing | Includes 240d to 240d1

503189282

$4.06

9

Bushing

503189271

$10.15

10

CENTER SHOCK - Call your local BRP dealership | Europe

503191813

Unavailable

11

Adjustment Cam

505073625

$11.82

12

Black, Spring

503191329

$64.90

13

Spring Guide

503191872

$2.12

14

Spring Stopper

503194270

$16.39

15

Urethane Bushing

503189117

$6.67

16

Bushing | Includes 240d to 240d1

503189282

$4.06

17

Bushing

503189271

$10.15
