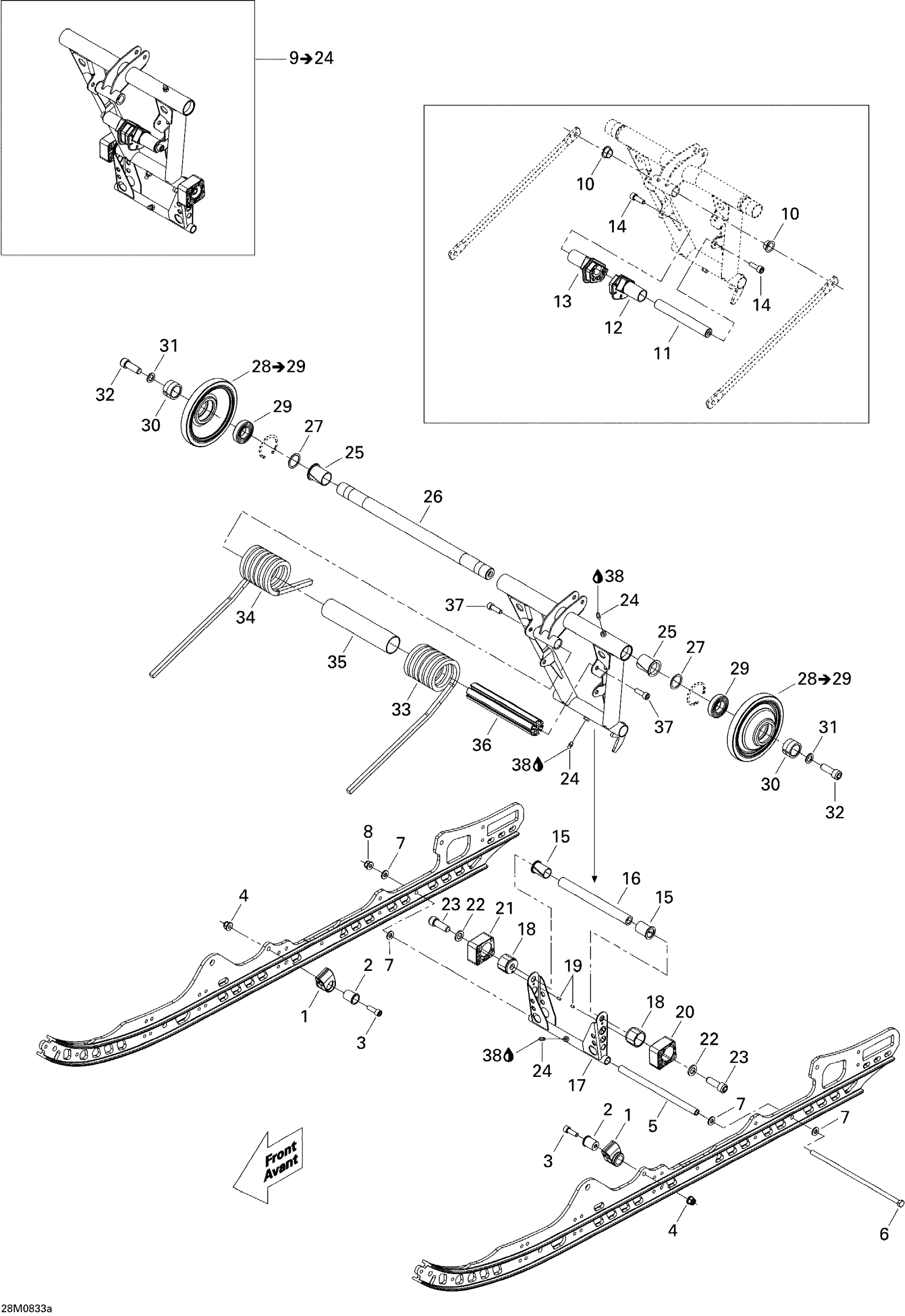

Ski-Doo MX Z RENEGADE 600 HO SDI, 2008 Rear Arm Renegade Diagram

#

Description
Price

1

Spring Support Kit

861805547

$8.14

1

Spring Support Kit

861805547

$8.14

2

Spring Support Kit

861805547

$8.14

2

Spring Support Kit

861805547

$8.14

3

Socket Head Screw M8 X 25

205082544

$0.92

3

Socket Head Screw M8 X 25

205082544

$0.92

4

Hex. Flange Elastic Nut M8

233281414

$1.14

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Pivot Arm Axle

503189156

$20.74

5

Pivot Arm Axle

503189156

$20.74

6

Bolt M8 X 248mm

503192440

$29.97

6

Bolt M8 X 248mm

503192440

$29.97

7

Washer

503189157

$3.20

7

Washer

503189157

$3.20

8

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Hex. Flange Elastic Nut M8

233281414

$1.14

9

REAR ARM ASS'Y - Call your local BRP dealership | Includes 9 to 24

503191528

$159.20

9

REAR ARM ASS'Y - Call your local BRP dealership | Includes 9 to 24

503191528

$159.20

10

Swivel Bushing

503191555

$5.71

10

Swivel Bushing

503191555

$5.71

11

Spring Cam Axe

503191178

$27.66

11

Spring Cam Axe

503191178

$27.66

12

LH Spring Cam

503191191

$13.88

12

LH Spring Cam

503191191

$13.88

13

RH Spring Cam

503191190

$13.78

13

RH Spring Cam

503191190

$13.78

14

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

14

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

15

Cushion

503191640

$5.71

15

Cushion

503191640

$5.71

16

Lower Shaft

503192330

$46.12

16

Lower Shaft

503192330

$46.12

17

Pivot Arm

503191302

$118.43

17

Pivot Arm

503191302

$118.43

18

Block Guide

503189488

$37.66

18

Block Guide

503189488

$37.66

19

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

$1.00

19

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

$1.00

20

LH Block, 4 Positions

503191563

Unavailable

20

LH Block, 4 Positions

503191563

Unavailable

21

RH Block, 4 Positions

503191562

Unavailable

21

RH Block, 4 Positions

503191562

Unavailable

22

Washer | 7415/7416. 7417/7418.

503189148

$2.72

22

Washer | 7415/7416. 7417/7418.

503189148

$2.72

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

24

Grease Fitting

408200700

$2.80

24

Grease Fitting

408200700

$2.80

25

Cushion

503191451

$11.17

25

Cushion

503191451

$11.17

26

UPPER SHAFT - Call your local BRP dealership

503191233

Unavailable

26

UPPER SHAFT - Call your local BRP dealership

503191233

Unavailable

27

Washer

503190328

$11.34

27

Washer

503190328

$11.34

28

WHEEL 144 MM ASS'Y - Call your local BRP dealership

503191739

Unavailable

28

WHEEL 144 MM ASS'Y - Call your local BRP dealership

503191739

Unavailable

29

Ball Bearing

503193548

$16.89

29

Ball Bearing

503193548

$16.89

30

Retaining Ring

503191099

$5.85

30

Retaining Ring

503191099

$5.85

31

Washer

503189276

$3.20

31

Washer

503189276

$3.20

32

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

32

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

33

LH SPRING, SQUARE - Call your local BRP dealership

503191188

$53.82

33

LH SPRING, SQUARE - Call your local BRP dealership

503191188

$53.82

33

Black LH Spring, Square

503191613

$59.97

33

Black LH Spring, Square

503191613

$59.97

34

RH SPRING, SQUARE - Call your local BRP dealership

503191186

Unavailable

34

RH SPRING, SQUARE - Call your local BRP dealership

503191186

Unavailable

34

Black RH Spring, Square

503191612

$59.97

34

Black RH Spring, Square

503191612

$59.97

35

Plastic Bushing

503191345

$6.89

35

Plastic Bushing

503191345

$6.89

36

Spring Axle

503191344

$34.58

36

Spring Axle

503191344

$34.58

37

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

37

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
