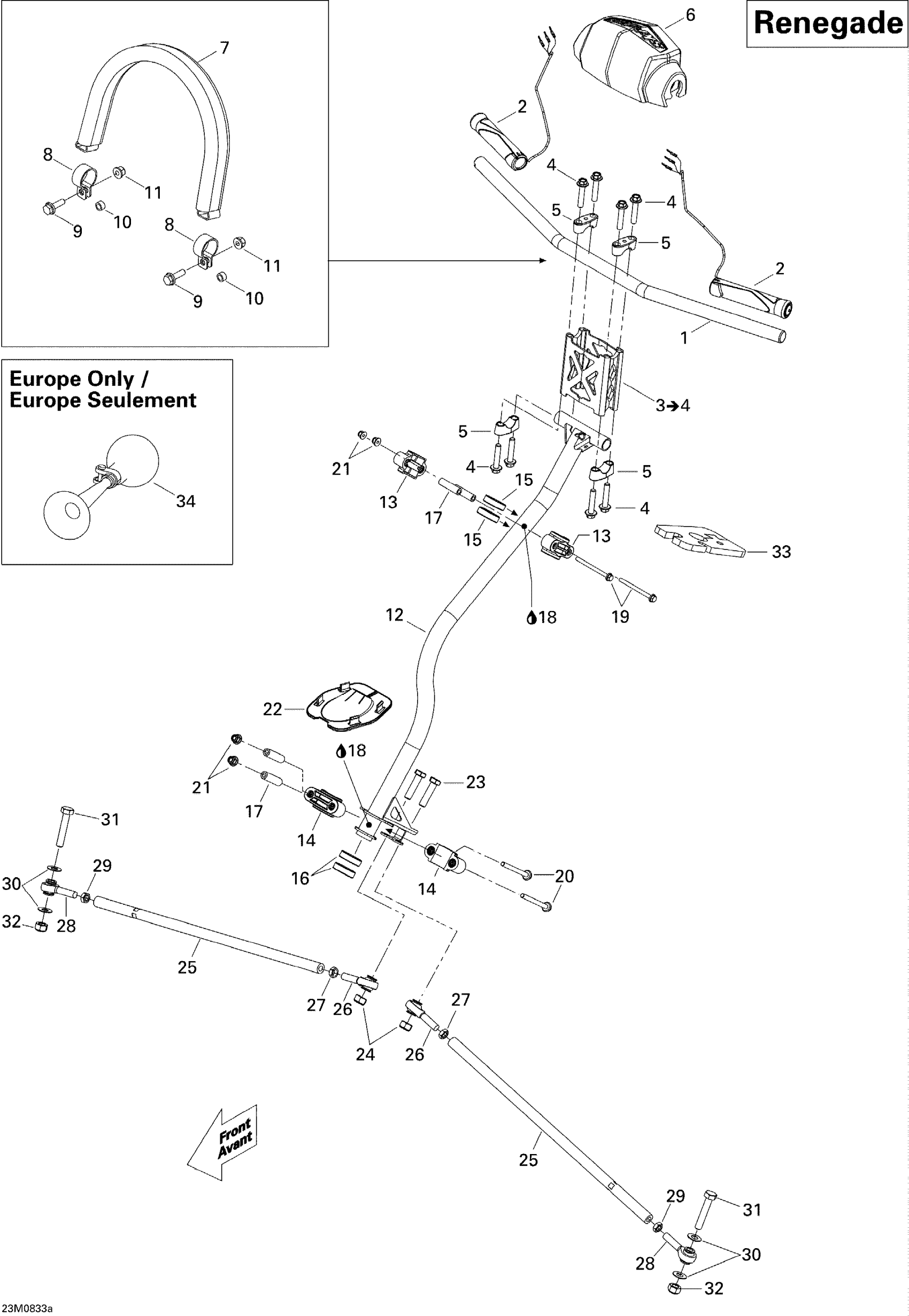

Ski-Doo MX Z RENEGADE 600 HO SDI, 2008 Steering Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152203

Unavailable

2

Heated Handle Grip

506152211

$76.84

3

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

4

Hex. Flange Screw M8 x 40

250000285

$0.75

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Steering Pad

506152192

$52.96

7

Strap Ass'y | Package XMR

506152115

$41.76

8

Black Support Plate

506152536

$8.34

9

Hex. Flange Screw M6 X 20

207662084

$0.96

10

Bushing | Package XMR

506152156

$5.19

11

Hex. Flange Elastic Nut M6

233261494

$1.26

12

Steering Column

506152964

$183.55

13

Upper Half Housing

506152219

$1.63

14

Lower Half-Housing

506152217

$5.40

15

Upper Vibration Ring

506152292

$0.70

16

Lower Vibration Ring

506152518

$4.39

17

Housing Bushing

506152297

$9.93

18

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

19

Hex. Flange Screw M6 X 70

207667056

$3.61

20

HEX. FLANGED SCREW M6 X 65 - Call your local BRP dealership

207666534

Unavailable

21

Elastic Flange Nut M6 X 1.0

233261416

$1.74

22

Plate

506152163

$9.93

23

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

24

Elastic Stop Nut M10

232500416

$1.56

25

Tie-Rod Ass'y

506152496

$58.18

26

LH Thread Ball Joint

506152081

$38.78

27

LH Threaded Hex. Jam Nut M10

250100016

$0.70

28

RH Threaded Ball Joint

506152019

$38.78

29

RH Threaded Hex. Jam Nut M10

732610010

$0.70

30

Washer

506152194

$4.28

31

Hex. Screw M10 X 55

207005544

$1.85

32

Elastic Stop Nut M10

232500416

$1.56

33

CUSHION - Call your local BRP dealership

506152334

Unavailable

34

Horn

549011291

$34.30
