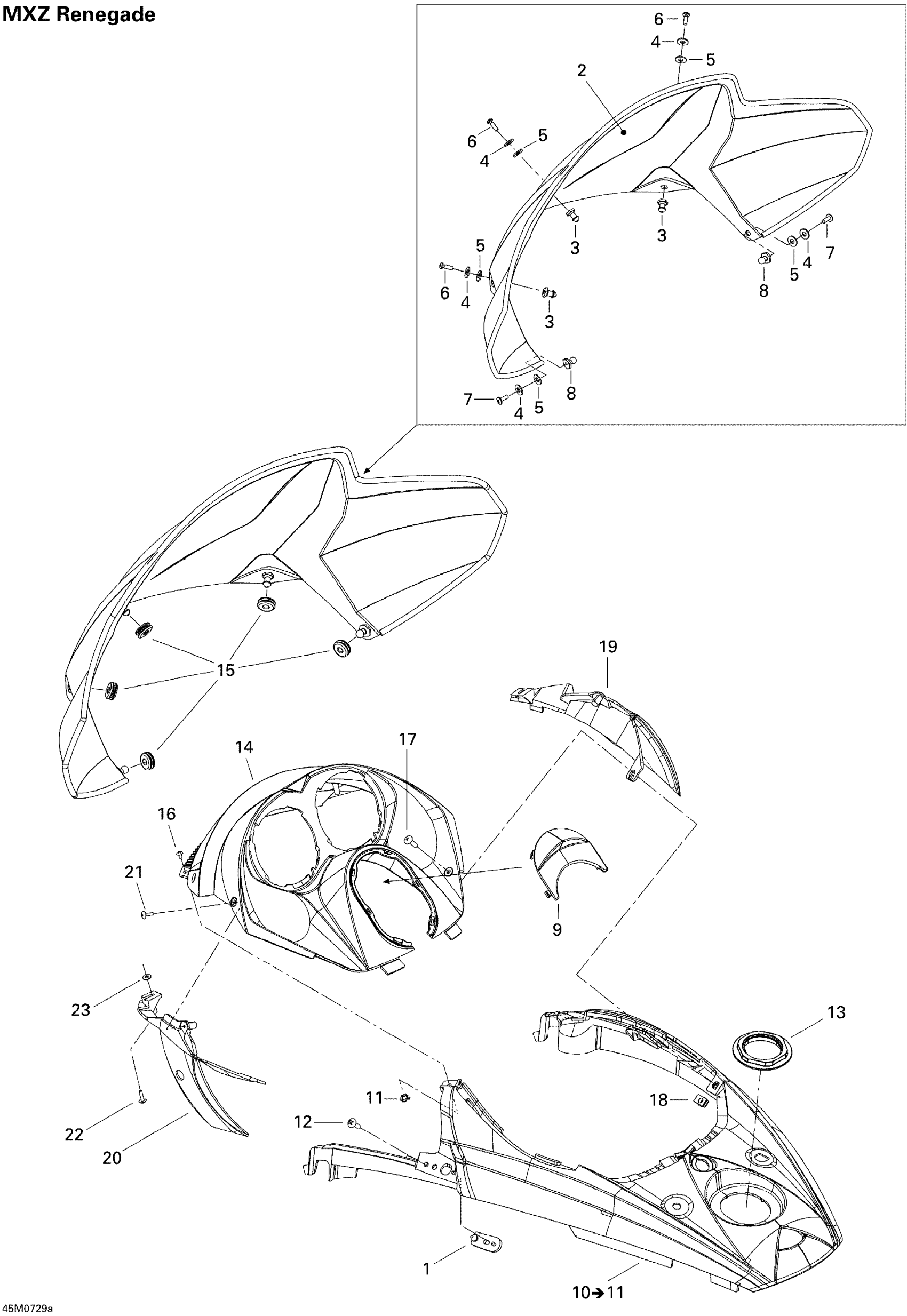

Ski-Doo MX Z Renegade 600 HO SDI, 2007 Windshield And Console REN 600 Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Windshield With Trim, Medium

517303511

$124.58

3

Knob

517303439

$3.73

4

Washer M5

250200025

$0.61

5

Rubber Washer 5 mm

250200024

$1.77

6

Torx Screw K50 X 16

250000720

$1.39

7

Torx Screw M5 X 14

250000742

$1.20

8

Knob

517245800

$10.83

9

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

10

Center Console | Includes 11 to 12

517303066

Unavailable

10

Center Console, White | Includes 10 to 11, White/Black

517303675

Unavailable

11

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

12

Torx Screw M6 X 20

250000722

$1.34

13

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

14

INDICATOR SUPPORT - Call your local BRP dealership

517303538

Unavailable

15

Grommet

517302841

$2.22

16

Torx Screw M4 X 8

250000127

$1.09

17

Torx Screw M5 X 20

250000724

$1.39

18

Panel Nut M5 X 0.8

250000958

$3.48

19

RH AIR DEFLECTOR - Call your local BRP dealership

517303413

Unavailable

20

LH AIR DEFLECTOR - Call your local BRP dealership

517303414

Unavailable

21

Phillips Screw K40 X 16

250000723

$0.81

22

Screw M4 X 16

250000725

$2.87

23

Flat Washer 4 mm, Stainless

234042600

$0.92
