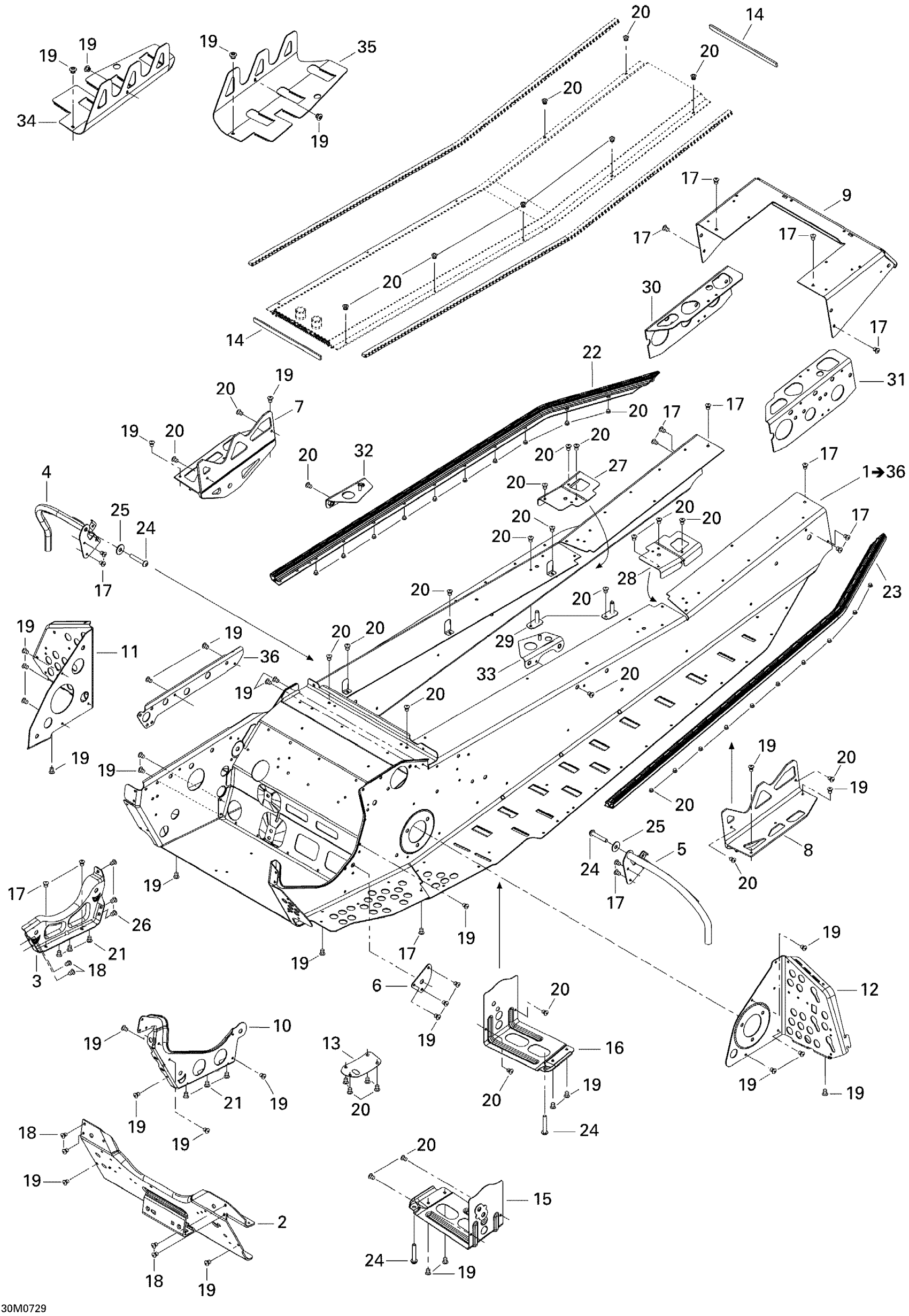

Ski-Doo MX Z Renegade 600 HO SDI, 2007 09- Frame Diagram

#

Description
Price

1

FRAME - Call your local BRP dealership | Includes 1 to 36

415129232

Unavailable

2

FRONT PAN - Call your local BRP dealership

518323239

Unavailable

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

5

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

6

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

7

RH SLIDE BRACKET - Call your local BRP dealership

518324780

Unavailable

8

LH Slide Bracket

518324781

Unavailable

9

Rear Cap

518325177

Unavailable

10

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

Unavailable

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

13

PLATE - Call your local BRP dealership

518324169

Unavailable

14

GASKET - Call your local BRP dealership

293200104

Unavailable

15

RH Reinforcement, Black

518324634

Unavailable

16

LH REINFORCEMENT, BLACK - Call your local BRP dealership

518324635

Unavailable

17

Avex Rivet

390909200

$0.30

18

Avex Rivet

390909100

$0.30

19

Pop Rivet 3/16"

390402200

$0.35

20

Pop Rivet 3/16"

390402400

$0.35

21

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

22

RH ROLLER - Call your local BRP dealership

518324957

Unavailable

23

LH ROLLER - Call your local BRP dealership

518324958

Unavailable

24

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

25

Flat Washer 8 mm

234082410

$1.47

26

Hemlock Rivet, 6.5 mm

293150096

$3.27

27

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

28

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

29

Tank Bracket

518322791

Unavailable

30

RH REINFORCEMENT - Call your local BRP dealership

518324959

Unavailable

31

LH Reinforcement

518324960

Unavailable

32

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

33

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

34

RH TUNNEL LINER - Call your local BRP dealership

518325268

Unavailable

35

LH Tunnel Liner

518325269

$48.99

36

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

Unavailable
