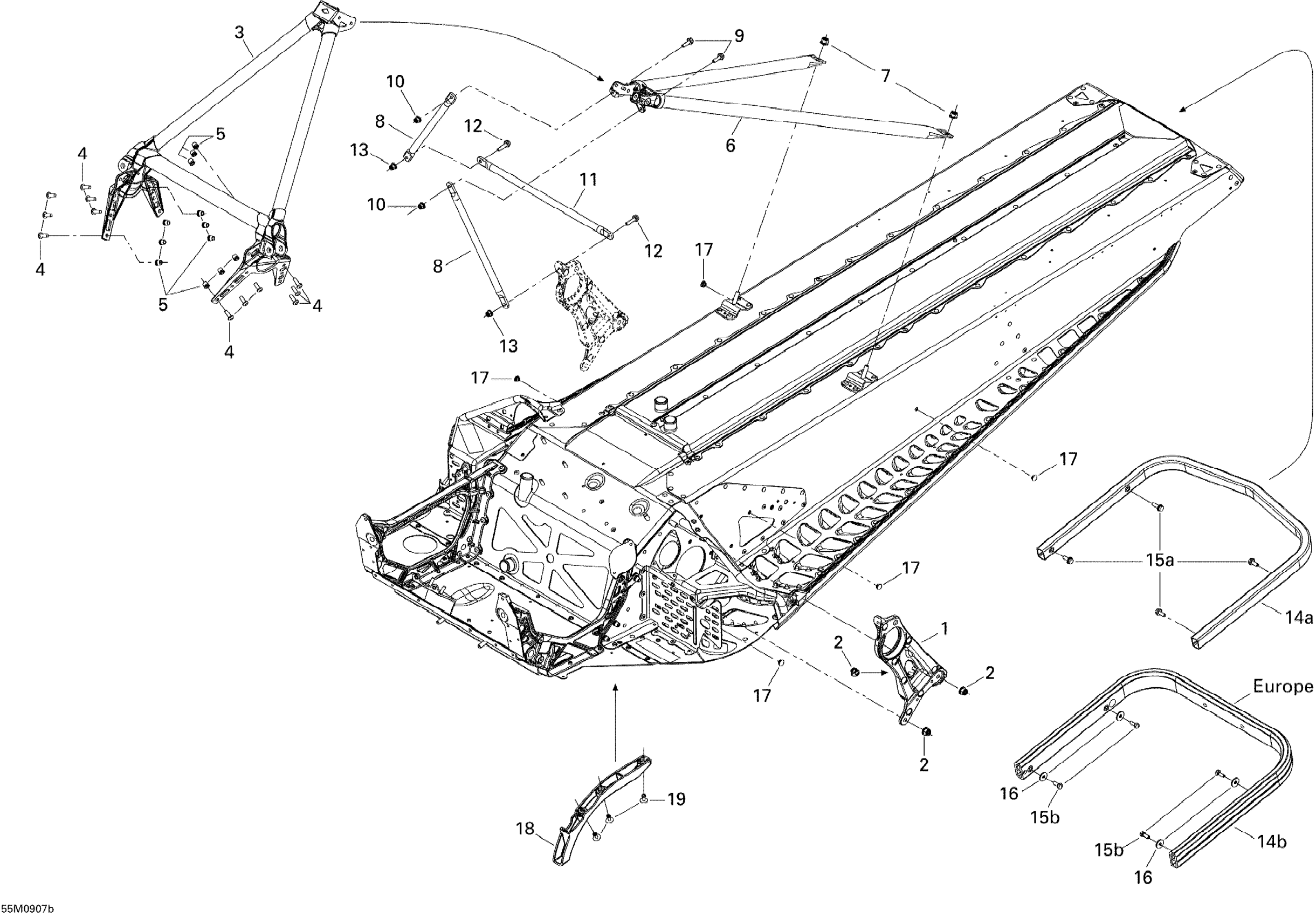

Ski-Doo MX Z Renegade 600 H.O. E-TEC, 2009 09- Frame and Components 2 Diagram

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Front Member

518326970

$299.99

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Rear Member

518326559

$264.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Upper Lateral Column Support

518325114

$22.49

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Center Column Support

518325115

$22.49

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Clear Rear Bumper

518324980

$99.49

Clear Rear Bumper | Sport

518325577

$111.49

Hex. Flange Screw M6 X 16

207661644

$0.74

HEX. CAP SCREW M6 X 16 - Call your local BRP dealership

207161686

Unavailable

Flat Washer

224061201

$1.37

Full Moon Dart 8 mm

293730041

$2.21

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

Pop Rivet 3/16”

293150108

$1.19
