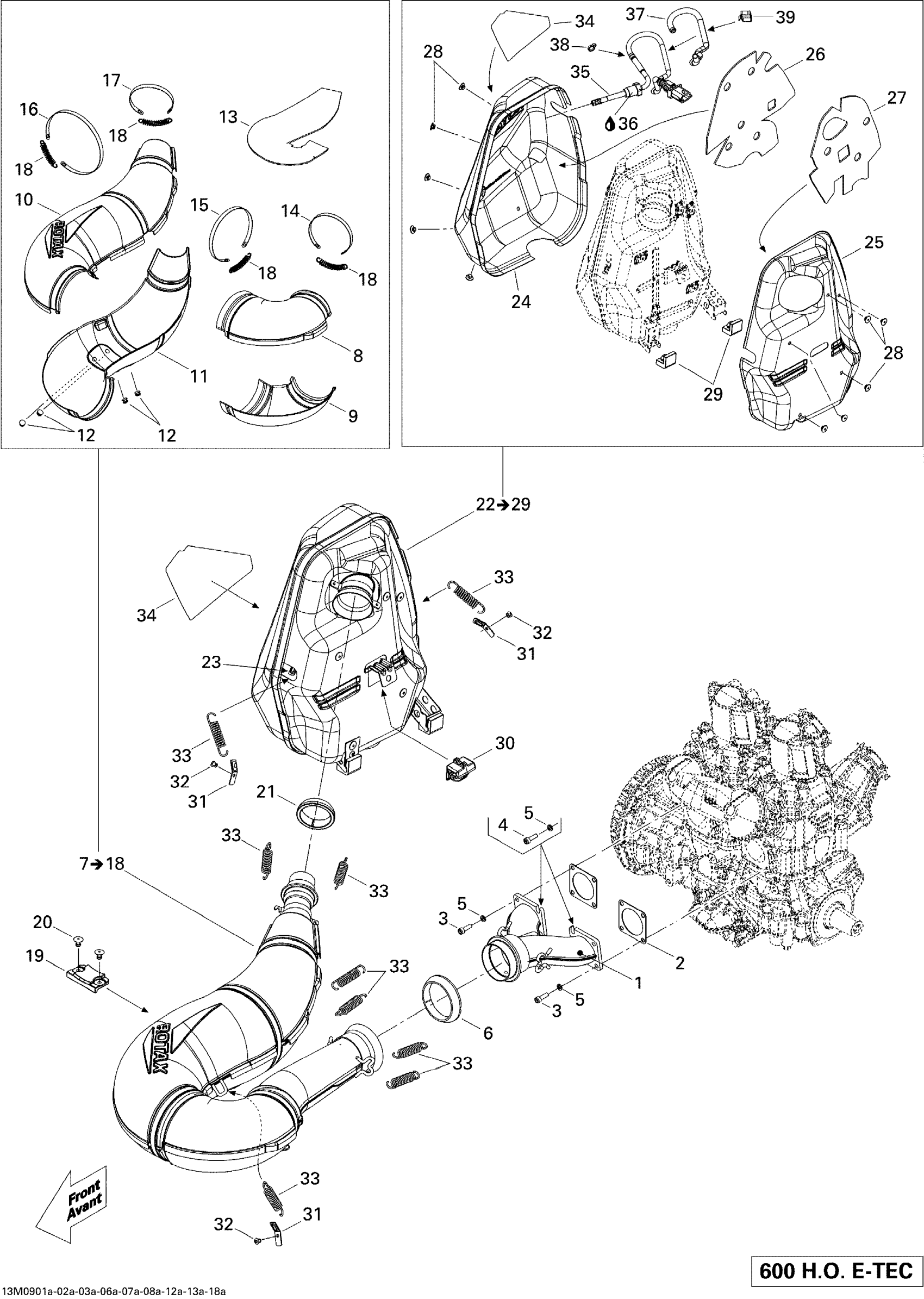

Ski-Doo MX Z Renegade 600 H.O. E-TEC, 2009 01- Exhaust System Diagram

Exhaust Manifold This part replaces 420673420.

420673421

$289.99

Gasket

420850552

$8.85

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.79

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.79

Washer

514053953

$0.77

Exhaust Gasket

514053487

$26.49

Exhaust Tuned Pipe | Includes 200 to 200k

514055065

$762.99

Front Upper Half Enveloppe

514054992

$40.99

Front Lower Half Enveloppe

514054993

$40.99

Rear Upper Half Enveloppe

514055039

$65.99

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$56.99

Henrob Rivet

293150091

$0.77

Insulating Wool

514054487

$20.99

Retaining Strap

514054408

$13.10

Retaining Strap

514054409

$13.10

Retaining Strap

514054410

$13.10

Retaining Strap

514053499

$11.47

Spring

514053643

$6.35

Bumper

514054275

$16.34

Pop Rivet 3/16"

293150103

$0.55

Exhaust Gasket

514054174

$28.49

Muffler Ass'y | Includes 400 to 400g

514054970

$858.49

Spring Bracket

514054155

Unavailable

RH Deflector

514054985

$58.99

LH DEFLECTOR - Call your local BRP dealership | 800R ETEC

514054202

Unavailable

RH INSULATING WOOL - Call your local BRP dealership

514054298

Unavailable

LH Insulating Wool

514054299

$20.99

Pop Rivet 3/16”

390910000

$0.57

Lower Stopper

514054274

$20.49

Upper Stopper

514054606

$19.99

Spring Bracket

514054522

$8.45

Pop Rivet 3/16"

390402200

$0.35

Spring

514054226

$6.35

Reflective Sheet

514054488

$14.99

Temperature Sensor

514054641

$219.99

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

Tubing 6 Mm 3000Mm Long

219704425

$13.75

Tie Wrap 94 mm | 4X4

293750001

$1.03

Clip

414227300

$1.67
