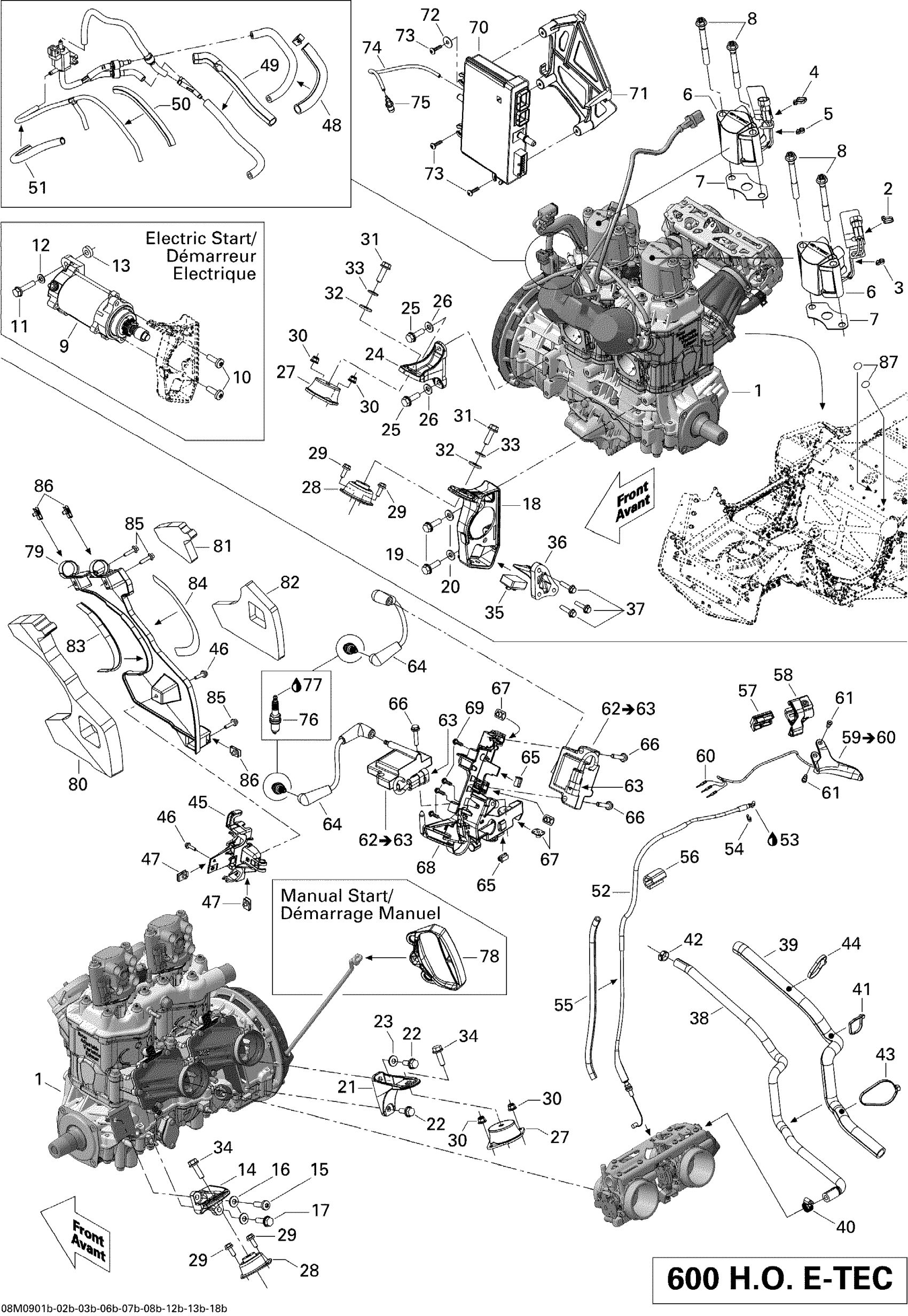

Ski-Doo MX Z Renegade 600 H.O. E-TEC, 2009 01- Engine 600HO Diagram

#

Description
Price

1

Engine 600HOE With Rewind Starter | Manual Start

400604035

Unavailable

1

Engine 600HOE Withtout Rewind Starter | Electrical Start

400604038

Unavailable

2

Tie Wrap 142 mm

293750002

$1.25

3

Tie Wrap 142 mm

293750002

$1.25

4

Tie Wrap 142 mm

293750002

$1.25

5

Tie Wrap 142 mm

293750002

$1.25

6

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

7

Gasket

420430930

$4.99

8

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

9

Starter

515178473

$319.49

10

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

11

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

12

Flat Washer With Teflon 8 mm

250200008

$3.80

13

Washer

515176500

$11.12

14

Rear Support, PTO

512060478

$31.99

15

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

16

Conical Spring Washer M8

234281474

$1.48

17

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

18

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

19

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

20

Conical Spring Washer M8

234281474

$1.48

21

REAR MAG SUPPORT - Call your local BRP dealership

512060470

Unavailable

22

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

23

Conical Spring Washer M8

234281474

$1.48

24

Front Support, MAG

512060469

$31.99

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

26

Conical Spring Washer M8

234281474

$1.48

27

Rubber Mount

512060729

$65.99

28

Rubber Mount

512060387

$46.99

29

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

32

Yellow, Washer

503183200

$3.19

33

Conical Spring Washer M8

234281474

$1.48

34

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

35

STOPPER - Call your local BRP dealership

512060488

Unavailable

36

Stopper Support

512060576

$29.49

37

Hex. Flange Screw M6 X 25

207562544

$1.69

38

Formed Hose, Output

512060740

$31.99

39

Tubing 16 Mm 1000Mm Long

219704408

$7.49

40

Norma Clamp

293650084

$4.12

41

Tie-Rap 180 mm

414115200

$0.11

42

Oetiker Clamp

293650046

$2.89

43

Tie-Rap 180 mm

414115200

$0.11

44

Tie-Rap 180 mm

414115200

$0.11

45

Solenoid Support

512060298

$14.22

46

Hex.Flange Screw M5 X 20

207652044

$1.90

47

Panel Nut M5 X 0.8

250000958

$4.23

48

Was 409901800 Tubing (13 mm)

219704400

$14.49

49

Was 409901800 Tubing (13 mm)

219704400

$14.49

50

Was 409901700 Tubing (9 mm)

219704399

$84.99

51

Was 409901700 Tubing (9 mm)

219704399

$84.99

52

Throttle Cable

512060611

$110.99

53

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

54

Circlip

414274500

$0.90

55

Was 409901700 Tubing (9 mm)

219704399

$84.99

56

Protector

512060313

$10.33

57

Upper Housing Ass'y

512060198

Unavailable

58

Lower Housing

512060860

$17.53

59

Throttle Handle Ass'y

512061252

$124.99

60

Male Terminal

515175232

$1.58

61

Flange Screw

732601143

$4.12

62

Ignition Coil

512060953

$132.49

63

Housing

710000568

$11.12

64

Ignition Cable, 177mm long

512061126

$28.49

65

Clip

710000992

$4.29

66

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

67

Nut Welded, M6

293100003

$9.12

68

Ignition Coils Support

512060888

$11.60

69

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

70

Calibrated Module

512060780

$749.99

71

Calibrated Module Support

512060858

$14.22

72

Flat Washer

250200040

$1.90

73

Truss Head Torx Screw K50 X 20

250000297

$2.11

74

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

75

Male Connector

414814100

$2.22

76

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$30.49

77

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

78

Starter Grip

512060136

$14.83

79

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

80

Interior Noise Foam

512060343

$20.99

81

Upper Exterior Noise Foam

512060344

$10.33

82

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

83

Heat Shield

512060574

$7.79

84

Heat Shield

512060575

$8.59

85

Hex.Flange Screw M5 X 20

207652044

$1.90

86

Panel Nut M5 X 0.8

250000958

$4.23

87

Adhesive Patch

518325560

$4.69
