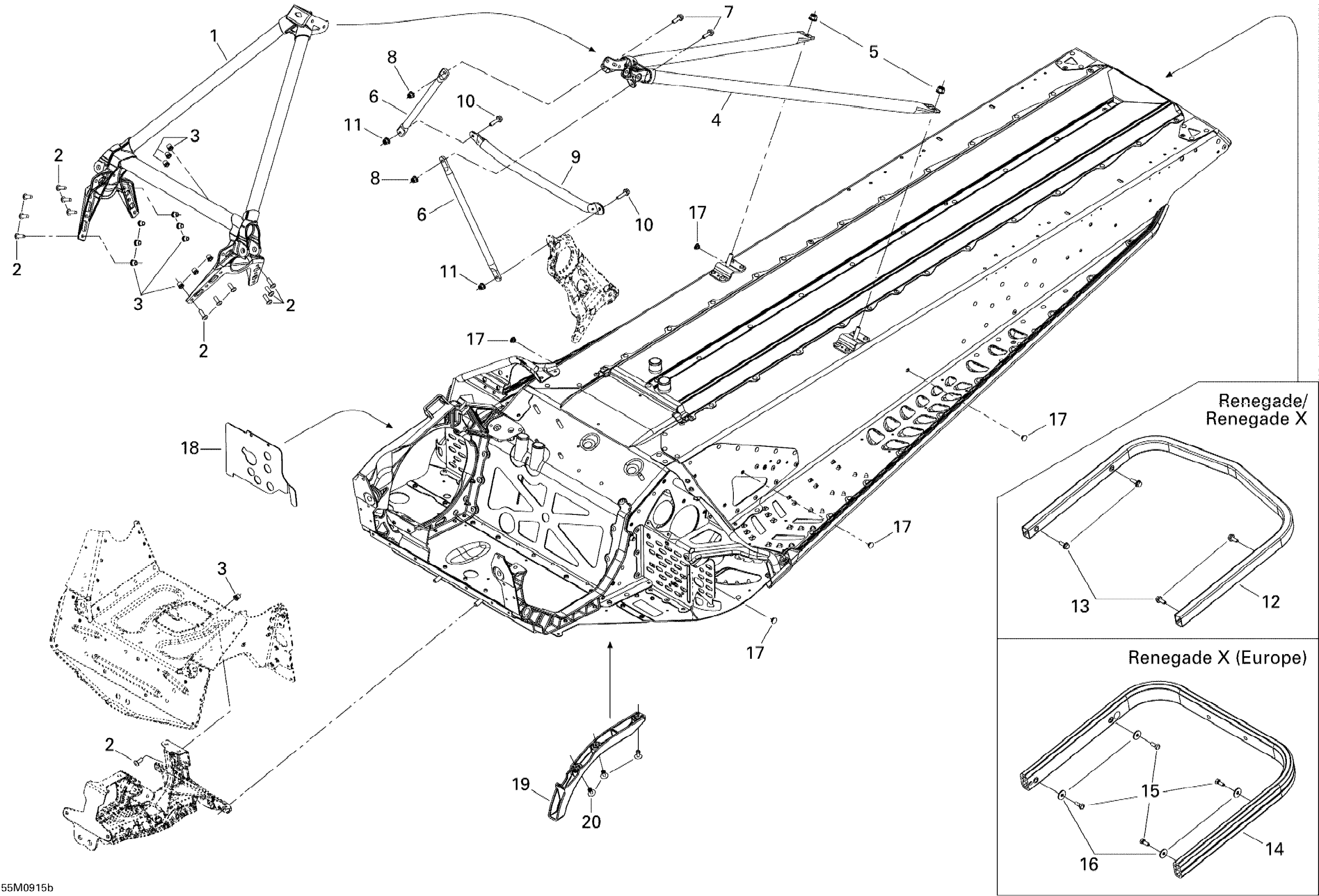

Ski-Doo MX Z Renegade 1200 4-TEC, 2009 Frame and Components Renegade Diagram

#

Description
Price

1

Front Member

518326970

$276.12

2

Hex. Flange Screw M6 X 20

207662044

$1.66

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4

Rear Member

518326559

$244.58

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Upper Lateral Column Support

518325114

$20.74

7

Hex. Flange Screw M6 X 20

207662044

$1.66

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

9

Center Column Support

518326657

$18.43

10

Hex. Flange Screw M6 X 25

207662544

$0.53

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

Clear Rear Bumper

518324980

$96.89

13

Hex. Flange Screw M6 X 16

207661644

$0.61

14

Not Available As Spare Parts

XXX

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Full Moon Dart 8 mm

293730041

$2.12

18

HEAT SHIELD - Call your local BRP dealership

518325418

Unavailable

19

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.66

20

Pop Rivet 3/16”

293150108

$1.23
