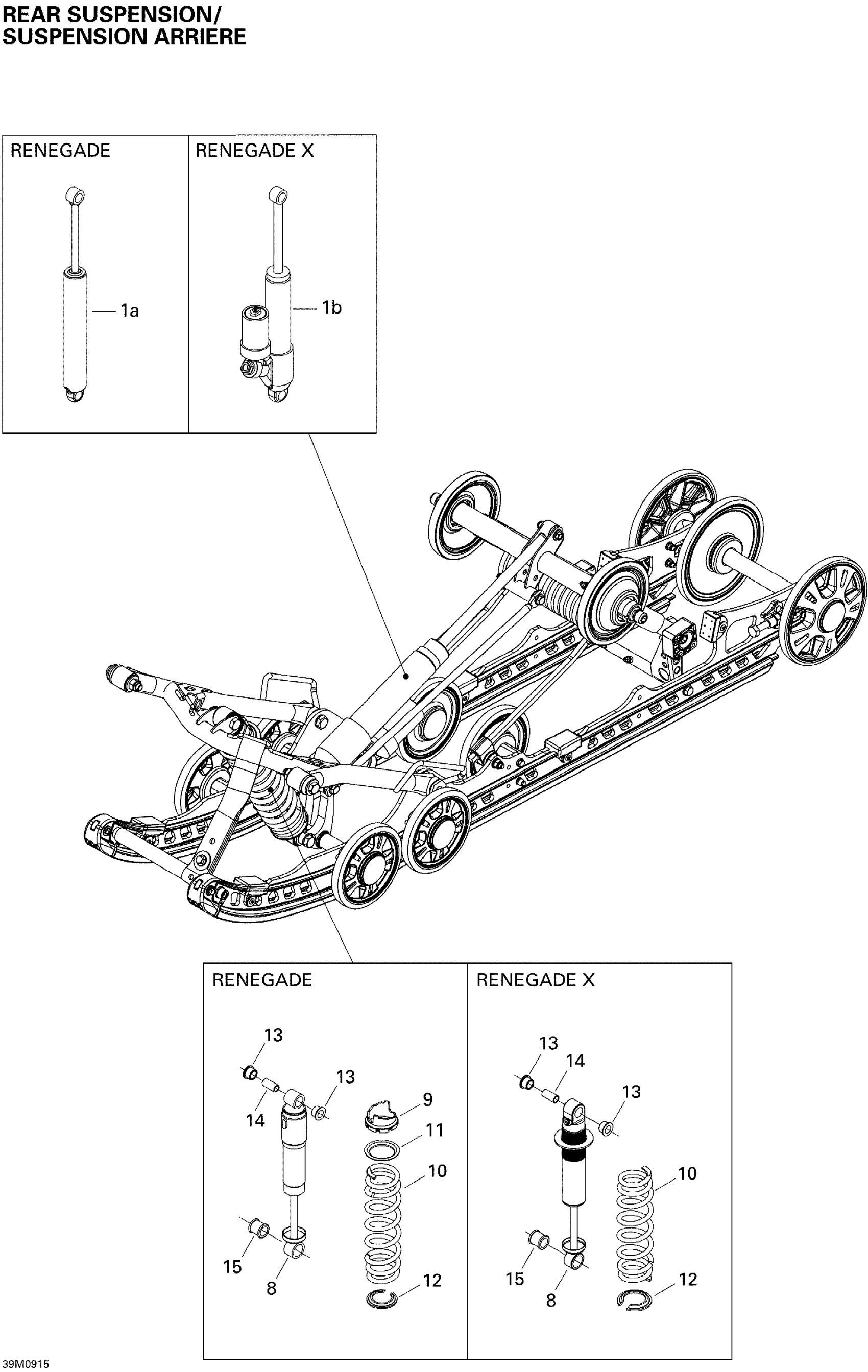

Ski-Doo MX Z Renegade 1200 4-TEC, 2009 Rear Suspension Shocks Renegade Diagram

#

Description
Price

1a

Rear Shock

503194137

$238.43

1b

Not Available As Spare Parts

XXX

Unavailable

8

CENTER SHOCK - Call your local BRP dealership | Renegade Adrenaline

503192984

Unavailable

9

Adjustment Cam

505073625

$12.18

10

Black, Spring 242MM

503191880

$66.89

11

Spring Guide

503191872

$2.18

12

Spring Stopper

503194270

$16.89

13

Urethane Bushing

503189117

$6.88

14

Bushing | Includes 240d to 240d1

503189282

$4.18

15

Bushing

503189271

$10.46
