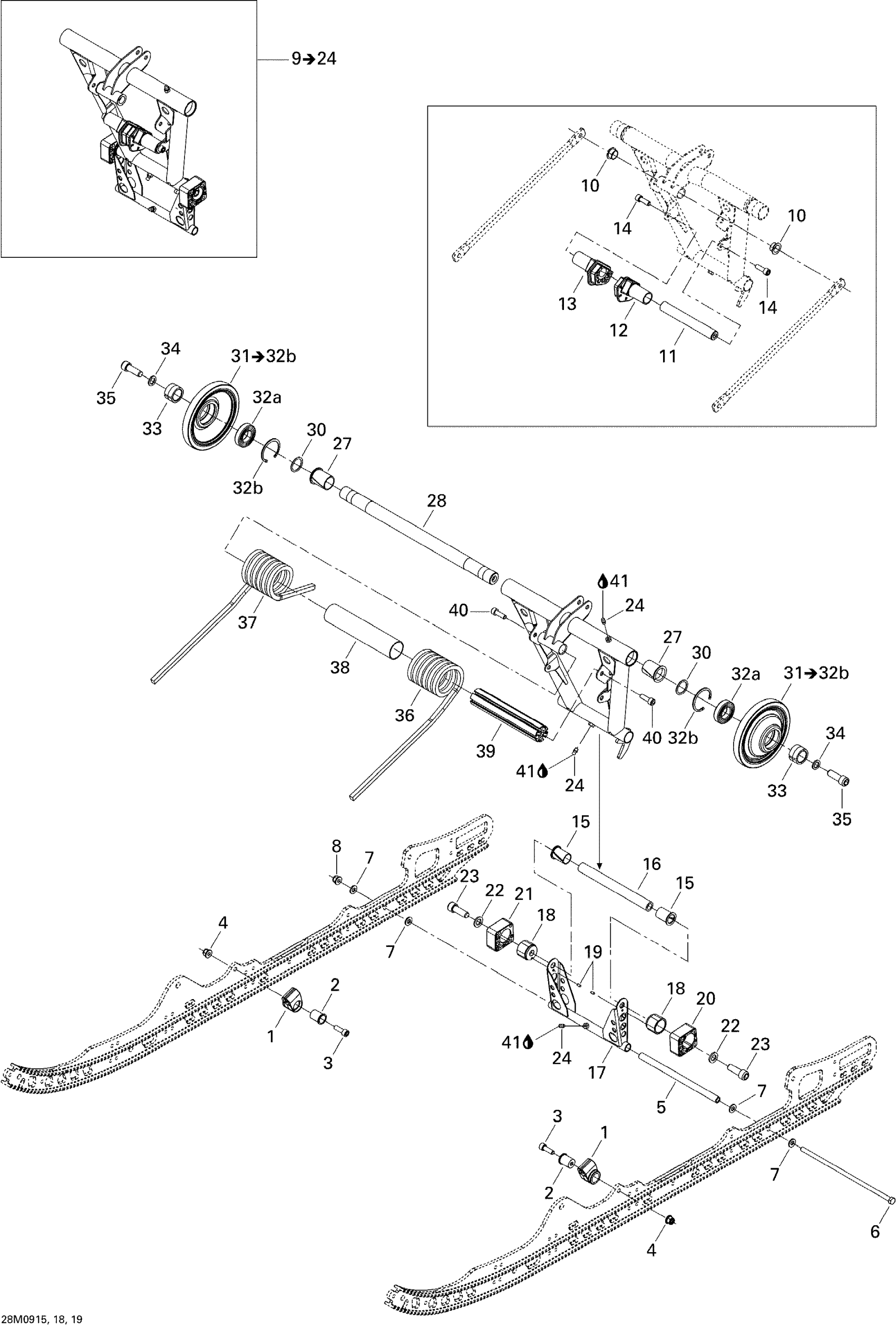

Ski-Doo MX Z Renegade 1200 4-TEC, 2009 08- Rear Arm Diagram

#

Description
Price

1

Spring Support Kit

861805547

$10.49

2

Spring Support Kit

861805547

$10.49

3

Socket Head Screw M8 X 25

205082544

$1.15

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Pivot Arm Axle

503189156

$21.99

6

Bolt M8 X 248mm

503192440

$30.49

7

Washer

503189157

$3.28

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

REAR ARM ASS'Y - Call your local BRP dealership

503191967

Unavailable

10

Swivel Bushing

503191555

$7.83

11

Spring Cam Axe

503191178

$28.99

12

LH Spring Cam

503191191

$15.79

13

RH Spring Cam

503191190

$15.29

14

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

15

Cushion

503191640

$5.93

16

Lower Shaft

503192330

$45.99

17

Pivot Arm

503191302

$124.99

18

Block Guide

503189488

$39.99

19

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

20

LH Block, 4 Positions

503191563

Unavailable

21

RH Block, 4 Positions

503191562

Unavailable

22

Washer | 7415/7416. 7417/7418.

503189148

$2.85

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

24

Grease Fitting

408200700

$3.49

27

Cushion

503191451

$14.15

28

UPPER SHAFT - Call your local BRP dealership

503191233

Unavailable

30

Washer

503190328

$12.65

31

WHEEL 144 MM ASS'Y - Call your local BRP dealership

503191739

Unavailable

31

WHEEL 144 MM ASS'Y - Call your local BRP dealership

503191739

Unavailable

32a

Ball Bearing

503193548

$17.99

32b

Retaining Ring

415129371

$12.01

33

Retaining Ring

503191099

$8.29

34

Washer

503189276

$3.28

35

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

36

LH SPRING, SQUARE - Call your local BRP dealership

503191188

Unavailable

37

RH SPRING, SQUARE - Call your local BRP dealership

503191186

Unavailable

38

Plastic Bushing

503191345

$7.83

39

Spring Axle

503191344

$36.99

40

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

41

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
