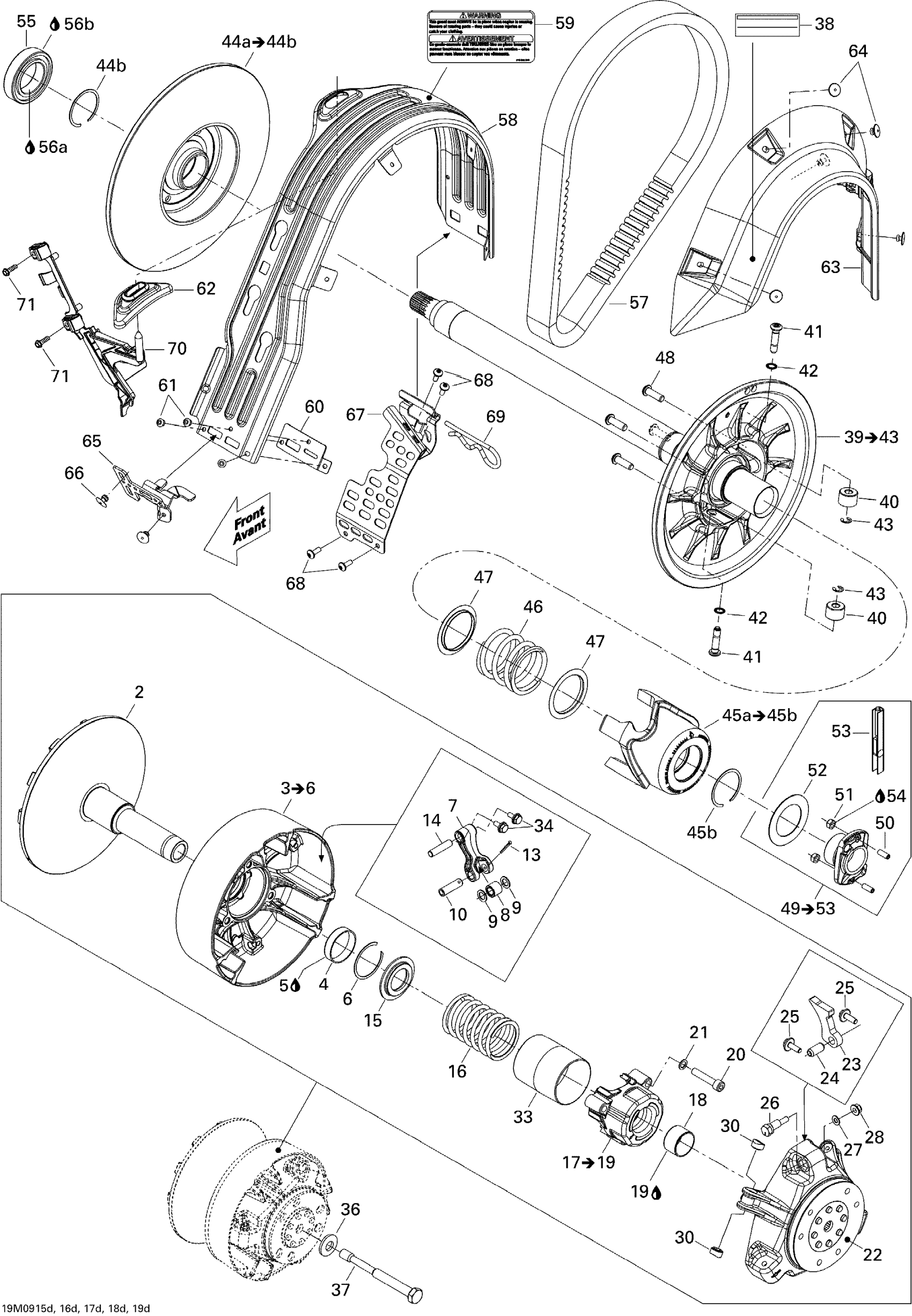

Ski-Doo MX Z Renegade 1200 4-TEC, 2009 05- Pulley System Diagram

#

Description
Price

2

FIXED FLANGE ASS'Y - Call your local BRP dealership

417223233

Unavailable

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

4

Bushing

417222758

$22.49

5

Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118.

219702967

Unavailable

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Roller

417222947

$21.99

9

Stopper Washer

417004302

$15.90

10

Pin

417222594

$14.99

13

Cotter Pin

250400060

$2.00

14

Lever Axle

417223164

$4.49

15

Spring Seat

417222312

$9.59

16

Spring (Blue/Blue)

414689400

$41.49

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

18

Bushing

417009204

$17.49

19

Loctite 609, 10 ml

413703100

$26.99

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

21

Lock Washer 8 mm

250200009

$2.11

22

Governor Cup

417223147

Unavailable

23

Ramp 617

417223088

$28.99

24

Spring Pin M10 X 22

250400050

$2.99

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

26

CALIBRATION SCREW - Call your local BRP dealership

417223197

Unavailable

27

Washer

417005600

$4.09

28

Hex. Flange Nut M6

233061414

$1.68

30

Slider Shoe

417223133

Unavailable

33

Guard

417009205

$21.99

34

Serrated Hex. Flange Bolt M6

250000416

$4.23

36

Spring Washer 14 mm

250200006

$6.99

37

Drive Pulley Bolt

417120000

$65.49

38

DECAL, NOTICE, DRIVE PULLEY BOLT - Call your local BRP dealership

516003708

Unavailable

39

Fixe Flange Ass'y | Includes 39 to 43

417127140

Unavailable

40

Pulley Roller

417127016

$24.49

41

Pivot Stud

417127259

$21.99

42

Lock Washer 8 mm

250200009

$2.11

43

Circlip

414753500

$0.71

44a

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

44b

Circlip

293370049

$4.99

45a

CAM ASS'Y - Call your local BRP dealership

417127385

Unavailable

45b

Circlip

293370049

$4.99

46

Beige, Spring

417127242

$21.99

47

Swivel Abutment

417127116

$9.39

48

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

49

ADJUSTMENT KIT - Call your local BRP dealership | Includes 50 to 54

415129409

Unavailable

50

SOCKET SET SCREW M6 X 16 - Call your local BRP dealership This part replaces 206261690.

206261650

$4.09

51

Hex. Nut M6

232061414

$0.53

52

Washer

417127155

$8.26

53

Spacing Tool

529035501

$4.72

54

Loctite 243, 10 ml

293800060

$21.49

55

Ball Bearing

504152574

$35.99

56a

Loctite 609, 10 ml

413703100

$26.99

56b

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

57

Drive Belt

417300551

$179.99

58

Belt Guard

417300382

$90.99

59

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

60

Reinforcement

417300380

$7.29

61

Avex Rivet

390909200

$0.30

62

Guide

417300381

$11.99

63

Side Protector

417300356

$14.76

64

Pop Rivet 3/16"

293150103

$0.55

65

FRONT BELT GUARD BRACKET - Call your local BRP dealership

417300360

$14.49

66

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

67

BELT GUARD BRACKET - Call your local BRP dealership

417300361

Unavailable

68

Torx Screw M5 X 14

250000742

$1.47

69

Hair Pin

114045200

$11.11

70

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

71

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47
