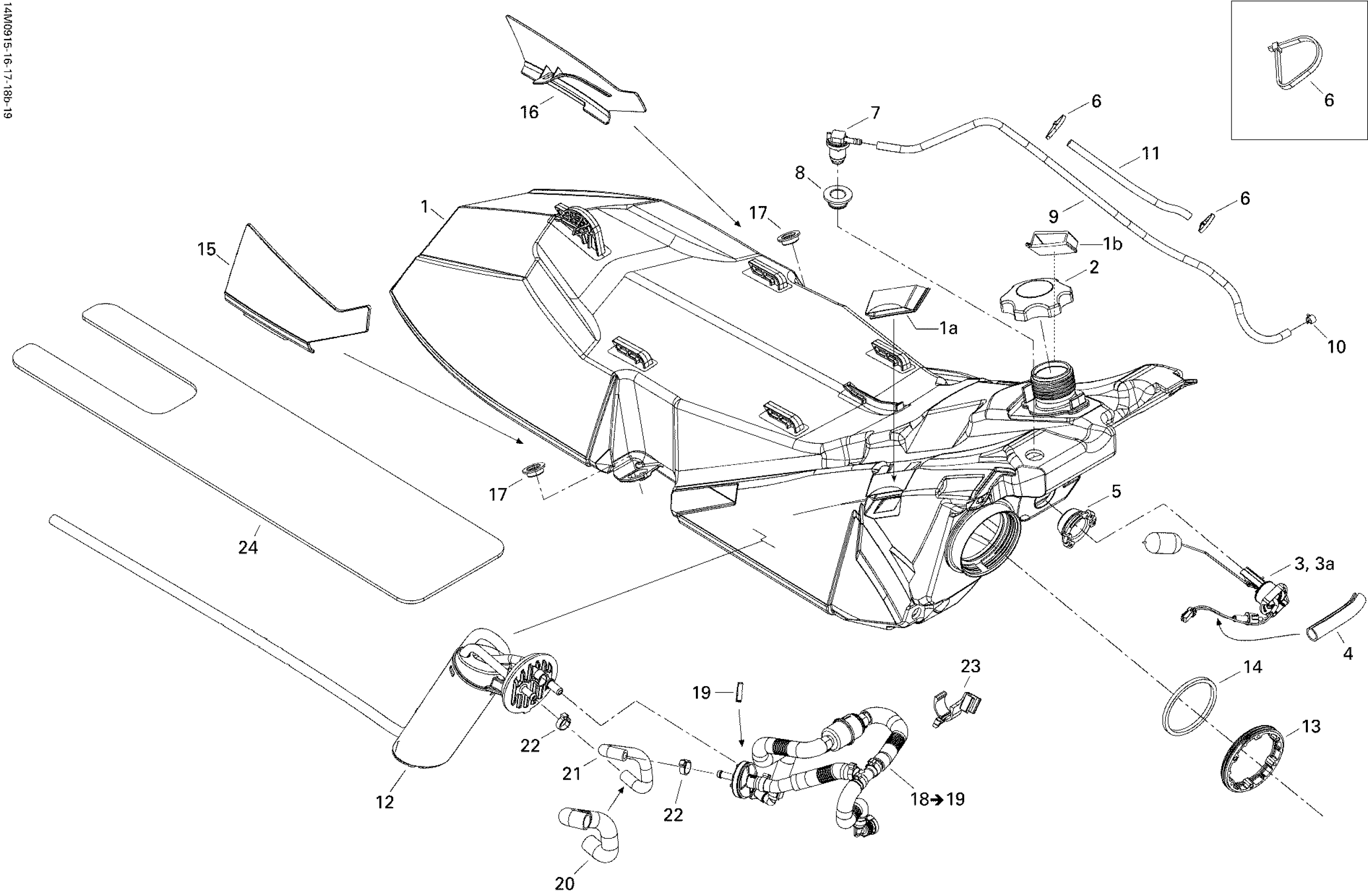

Ski-Doo MX Z Renegade 1200 4-TEC, 2009 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033459

Unavailable

1a

RH Panel Clip

513033471

$7.19

1b

LH Panel Clip

513033472

$5.99

2

Fuel Tank Cap

513033025

$24.49

3

Sensor Level Fuel | Includes 40 to 40a

513033958

$109.99

3a

Fuse, 0.5 Ampère

710001995

$8.32

4

Tubing 16 Mm 1000Mm Long

219704408

$7.49

5

GROMMET - Call your local BRP dealership

513033559

Unavailable

6

Tie-Rap 180 mm

414115200

$0.11

7

Check Valve

513033842

$35.99

8

Grommet

513033596

$21.99

9

Polyurethane Hose 10000Mm Long

219704410

$56.99

10

Spring Clamp

414554800

$0.88

11

Protector Tube

504153074

$14.49

12

PUMP FUEL This part replaces 513033585.

513034262

$259.99

13

Ring

513033180

$19.99

14

Gasket

513033334

$24.49

15

RH Cap

513033418

$14.99

16

LH Cap

513033419

$14.99

17

Shoulder Bushing

513033326

$14.99

18

HOSE ASS'Y - Call your local BRP dealership

513033339

Unavailable

19

Locking Clip

513033135

$5.89

20

Tubing 16 Mm 1000Mm Long

219704408

$7.49

21

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

22

Crimp Clamp, 15.3-706R

293650047

$3.29

23

FILTER CLIP - Call your local BRP dealership

513033336

Unavailable

24

Insulating Foam

513033588

$14.99
