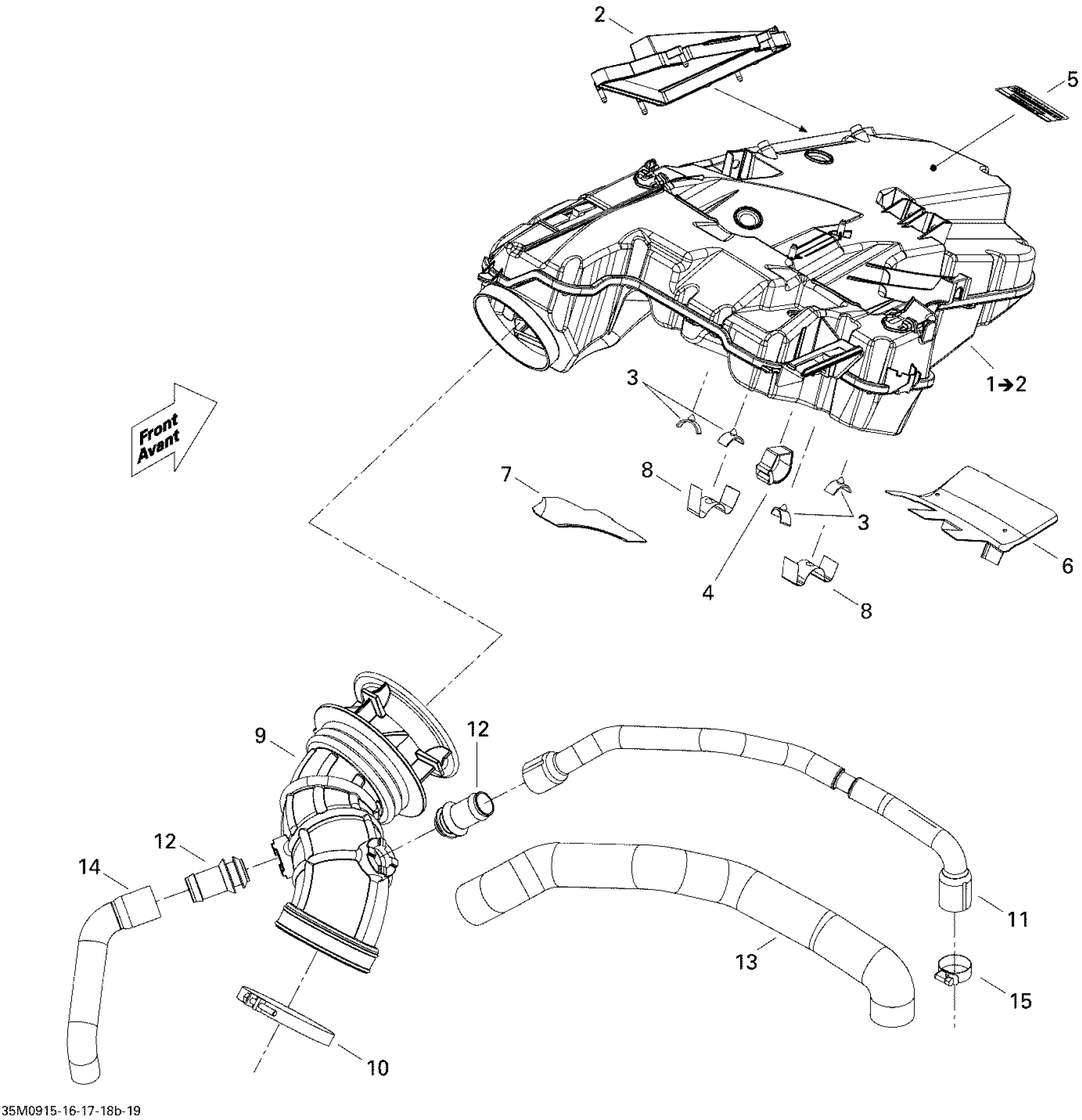

Ski-Doo MX Z Renegade 1200 4-TEC, 2009 02- Air Intake System Diagram

#

Description

Price

1

Secondary Chamber Ass'y

508000778

$204.99

2

Air Filter

508000546

$39.99

3

Stopper

508000537

$7.79

4

Velcro Strip

508000820

$8.59

5

WARNING DECAL, HOT PARTS - Call your local BRP dealership

516002965

Unavailable

6

Heat Shield

508000675

$10.99

7

Reflective Sheet

508000622

$10.99

8

Heat Shield

508000677

$7.79

9

INTAKE HOSE - Call your local BRP dealership

508000549

Unavailable

10

Gemi Clamp

508000346

$10.33

11

VENT HOSE - Call your local BRP dealership

508000615

Unavailable

12

Breather Valve

273000234

$14.49

13

Insulating Tube

508000630

$16.49

14

FORMED HOSE - Call your local BRP dealership

508000616

Unavailable

15

Tridon Gear Clamp

293650172

$3.09
