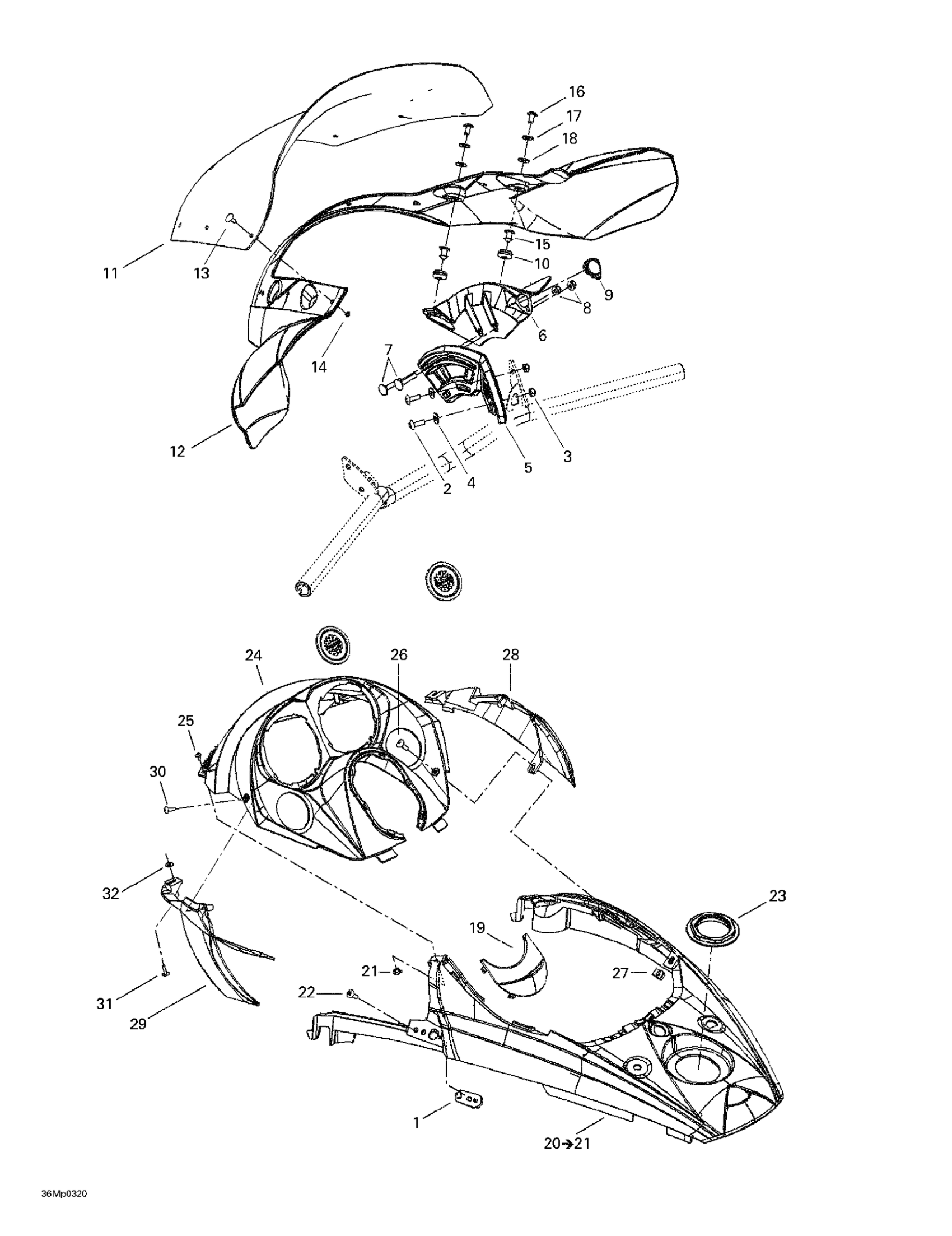

Ski-Doo MX Z Blair Morgan Special Edition, 2003 09- Windshield And Console Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Phillips Screw M6 X 16

250000123

Unavailable

3

Hex. Nut M6

250000135

$0.51

4

Flat Washer 6 mm

234062100

$1.26

5

RH Plate Bracket

517302704

Unavailable

LH Plate Bracket

517302705

Unavailable

6

RH Windshield Support

517302791

Unavailable

LH Windshield Support

517302792

Unavailable

7

Carriage Bolt M6 X 35

207763554

$2.11

8

Hex. Flange Elastic Nut M6

233261494

$1.58

9

CAP - Call your local BRP dealership

517302806

Unavailable

10

Grommet

517302841

$7.89

11

Windshield (low)

517302971

Unavailable

12

Air Deflector

517302816

$99.99

13

Windshield Dart

517303070

$1.09

14

Push Nut

250100034

$1.29

15

Knob

517303439

$4.55

16

PHILLIPS SCREW M5 X 14 - Call your local BRP dealership

208651481

Unavailable

17

Washer M5

250200025

$0.74

18

Rubber Washer 5 mm

250200024

$2.19

19

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

20

CENTER CONSOLE, BLACK - Call your local BRP dealership | Includes 10 to 11, (Black/Yellow)

517302795

Unavailable

21

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

22

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

250000122

Unavailable

23

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

24

Support

517302796

Unavailable

25

Phillips Screw M4 X 8

250000121

Unavailable

26

PHILLIPS SCREW M5 X 20 - Call your local BRP dealership

250000124

Unavailable

27

Panel Nut M5 X 0.8

250000958

$4.23

28

RH AIR DEFLECTOR - Call your local BRP dealership

517302546

Unavailable

29

LH AIR DEFLECTOR - Call your local BRP dealership

517302547

Unavailable

30

Phillips Screw K40 X 16

250000723

$0.98

31

Screw M4 X 16

250000725

$3.49

32

Flat Washer 4 mm, Stainless

234042600

$1.15
