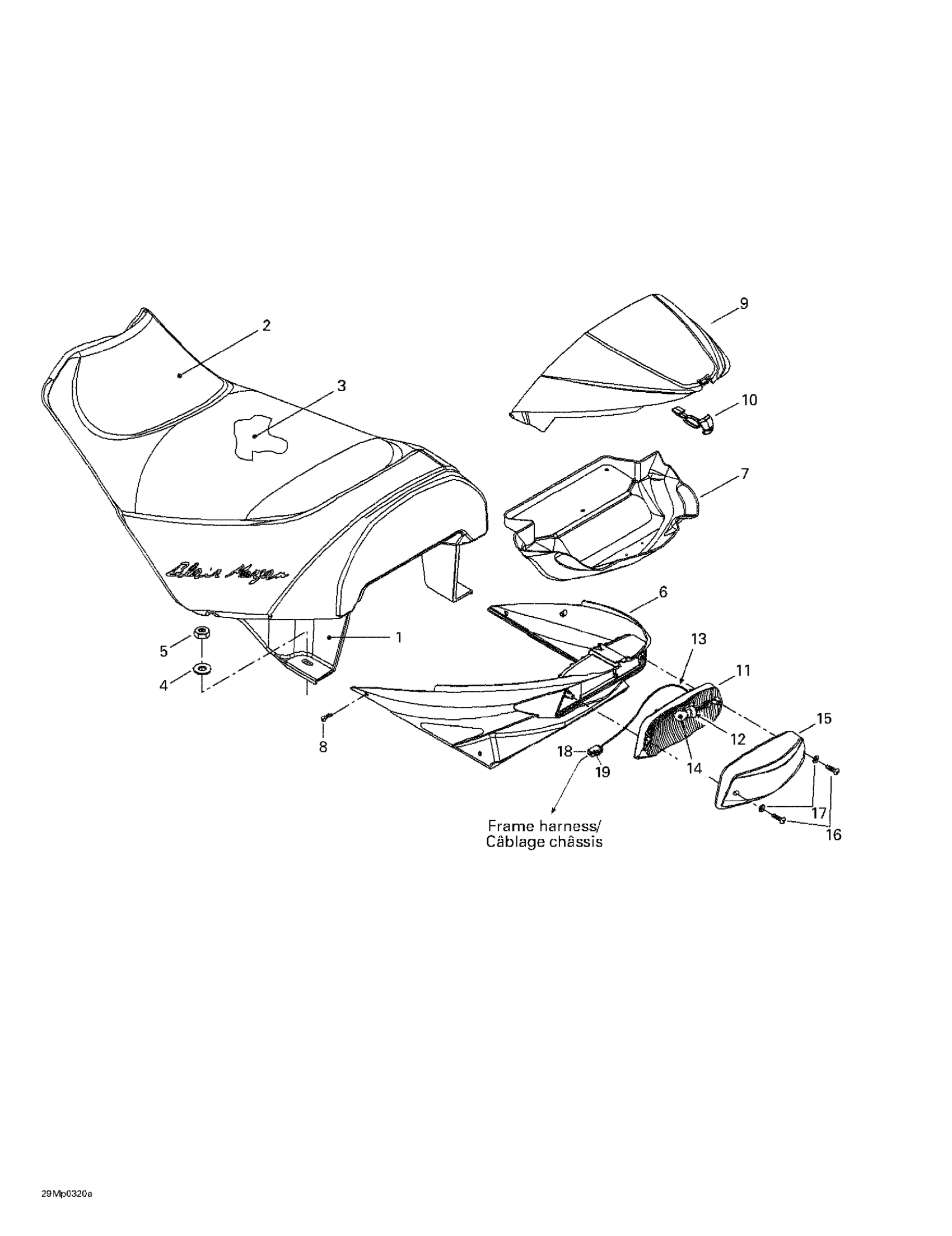

Ski-Doo MX Z Blair Morgan Special Edition, 2003 09- Seat Diagram
#
Description
Price
1
Seat Base
510003819
Unavailable
2
Seat cover
510004176
Unavailable
3
Seat Foam
510003821
Unavailable
6
TRUNK - Call your local BRP dealership
510004138
Unavailable
7
BOX LINER - Call your local BRP dealership
510004021
Unavailable
8
Phillips Screw M6 X 16
250000123
Unavailable
9
Rear trunk lid, yellow(REV)
510004160
Unavailable
10
Bracket
510003917
Unavailable
11
REFLECTOR - Call your local BRP dealership
510004018
Unavailable
12
Rubber Damper
414979411
Unavailable
13
Fitting
515175940
Unavailable
16
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership
209632580
Unavailable
17
Washer - Call your local BRP dealership
414516400
Unavailable
