Description

Price

1

Front bottom pan

502006704

Unavailable

2

BOTTOM PAN GRILL - Call your local BRP dealership

502006687

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

Pop Rivet 3/16”

293150108

$1.19

5

Pop Rivet 3/16"

293150103

$0.55

6

Washer

517124300

$0.19

7

Nut Welded, M6

293100003

$9.12

8

RH Bottom Pan

502006606

Unavailable

9

LH Bottom Pan

502006678

Unavailable

10

Hex. Screw M6 X 14

207161444

$0.58

11

Bumper, Yellow

502006680

$158.99

12

Lock Washer M6, Black

234161471

$0.53

13

Flat Washer

224061121

$0.53

14

Support

502006772

$38.99

15

Black, Nylon Cap

414916600

$4.69

16

LH Foam

502006683

Unavailable

17

RH Foam

502006684

Unavailable

18

Protection plate

502006705

Unavailable

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

20

Pop Rivet 3/16”

293150108

$1.19

21

Washer

517124300

$0.19

22

Rubber Stopper

415018100

$2.49

23

Rubber Washer 5 mm

250200024

$2.19

24

WASHER - Call your local BRP dealership

293150007

Unavailable

25

Pop Rivet 1/8" | SM5

390401600

$5.69

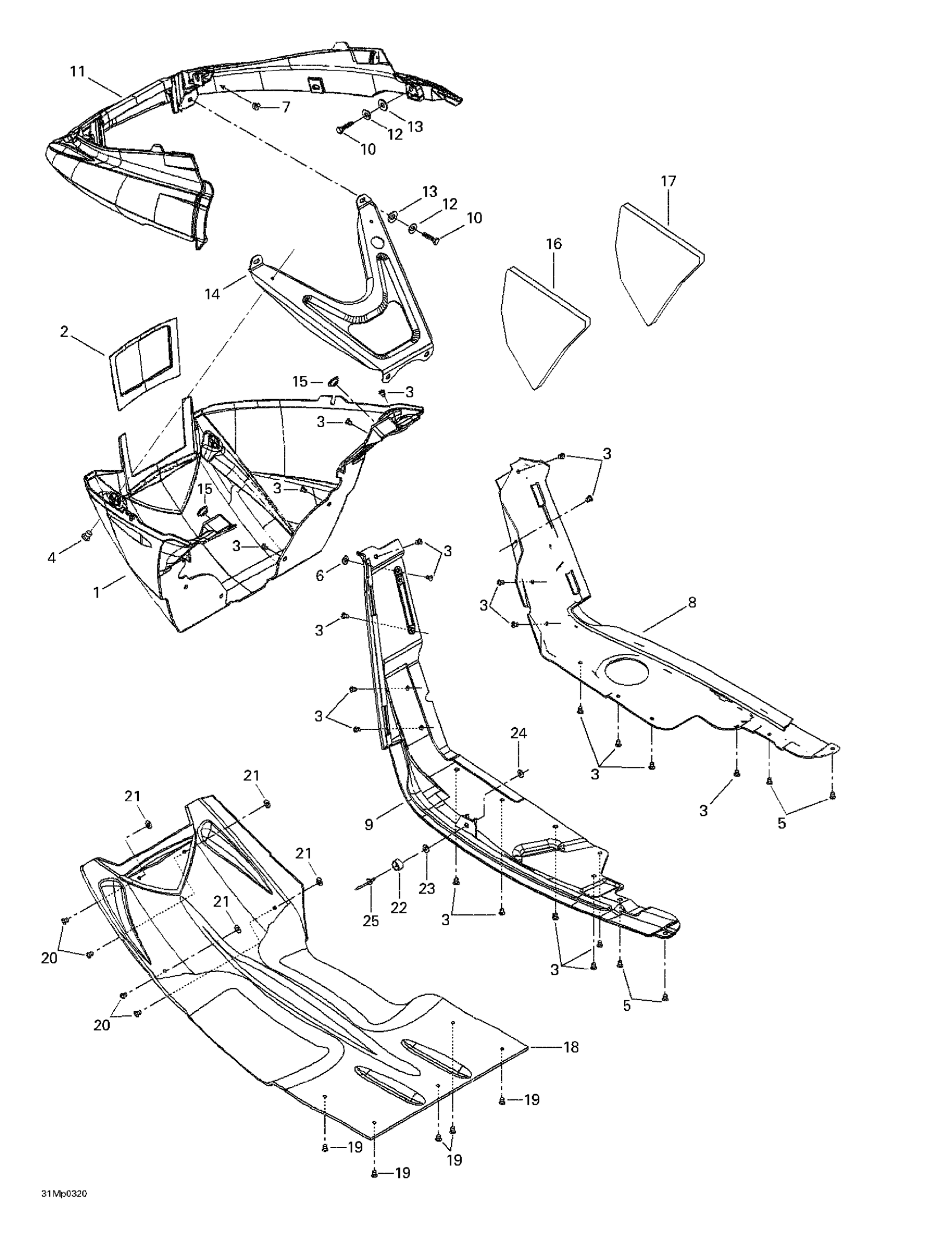

Ski-Doo MX Z Blair Morgan Special Edition, 2003 Bottom Pan Diagram

Front bottom pan

BOTTOM PAN GRILL - Call your local BRP dealership

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16”

Pop Rivet 3/16"

Washer

Nut Welded, M6

RH Bottom Pan

LH Bottom Pan

Hex. Screw M6 X 14

Bumper, Yellow

Lock Washer M6, Black

Flat Washer

Support

Black, Nylon Cap

LH Foam

RH Foam

Protection plate

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16”

Washer

Rubber Stopper

Rubber Washer 5 mm

WASHER - Call your local BRP dealership

Pop Rivet 1/8" | SM5
