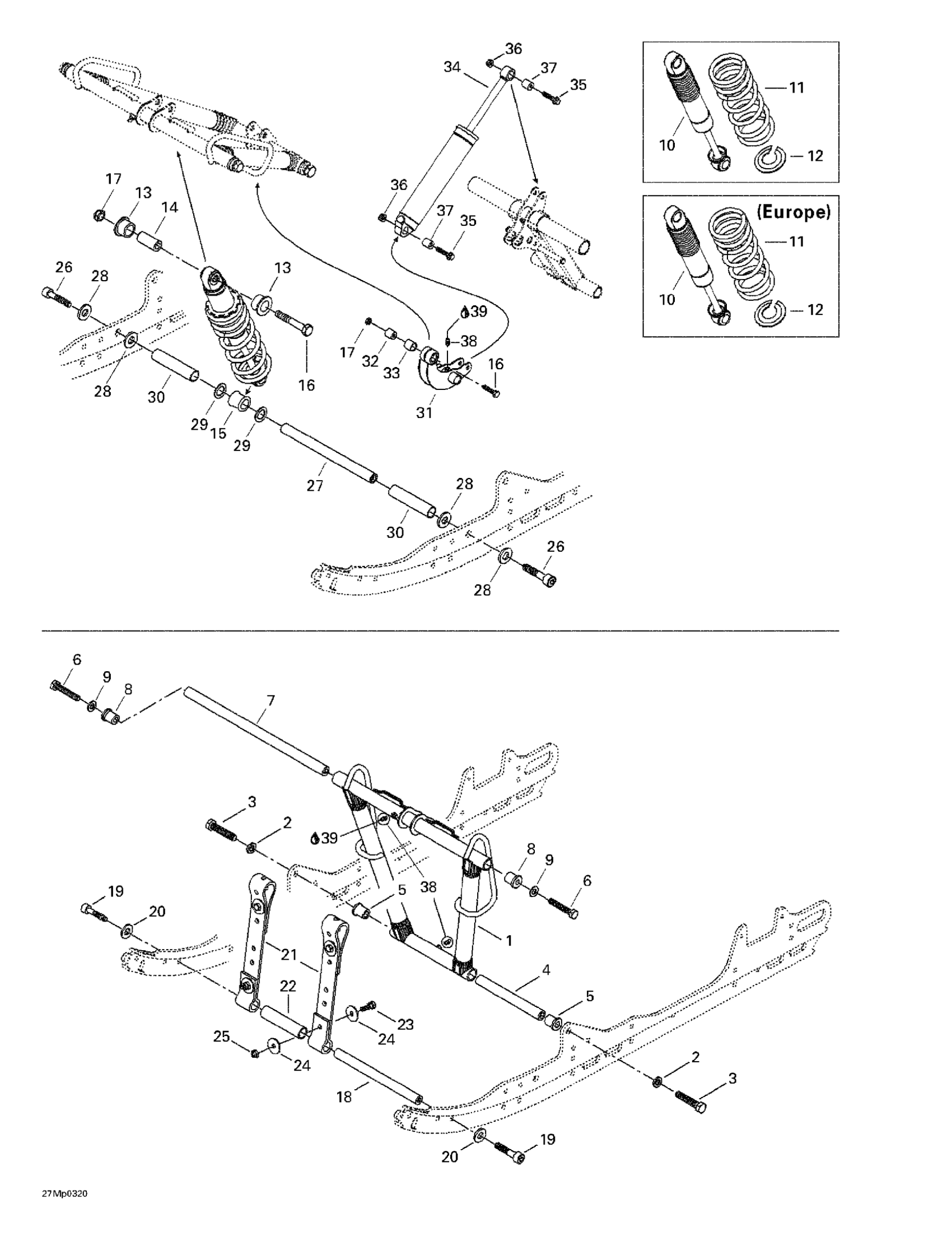

Ski-Doo MX Z Blair Morgan Special Edition, 2003 08- Front Arm Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

$3.28

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

7

SHAFT - Call your local BRP dealership

503190387

Unavailable

8

Bushing

503189324

$14.15

9

Washer

732900049

$0.58

10

Center Shock

503190016

Unavailable

Center Shock

503190247

Unavailable

11

SPRING - Call your local BRP dealership

503189659

Unavailable

Spring

503190283

Unavailable

12

Spring Stopper

503189912

$10.99

13

Urethane Bushing

503189117

$8.19

14

Bushing | Includes 240d to 240d1

503189282

$4.34

15

Bushing

503189271

$13.99

16

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

17

Elastic Locking Nut M10 X 1.5

233601416

$1.69

18

AXLE - Call your local BRP dealership

503189562

Unavailable

19

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

20

Washer

503189564

$0.74

21

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

22

Spacer

503189265

$4.99

23

Hex. Screw M8 X 25

207182544

$0.90

24

Flat Washer

224081301

$0.88

25

Hex. Elastic Stop Nut M8

232581414

$0.56

26

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

27

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

28

Washer

503189276

$3.28

29

Washer

503189273

$3.28

30

SPACER - Call your local BRP dealership

503189274

Unavailable

31

Rocker

503189845

Unavailable

32

Rocker Axle

503189388

Unavailable

33

CUSHION - Call your local BRP dealership

503189626

Unavailable

34

Rear Shock

503190013

Unavailable

Rear Shock

503190248

Unavailable

35

Hex. Flange Screw M8 X 40

207684044

$1.48

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Bushing

414936000

$13.99

38

Grease Fitting

408200700

$3.49

39

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
