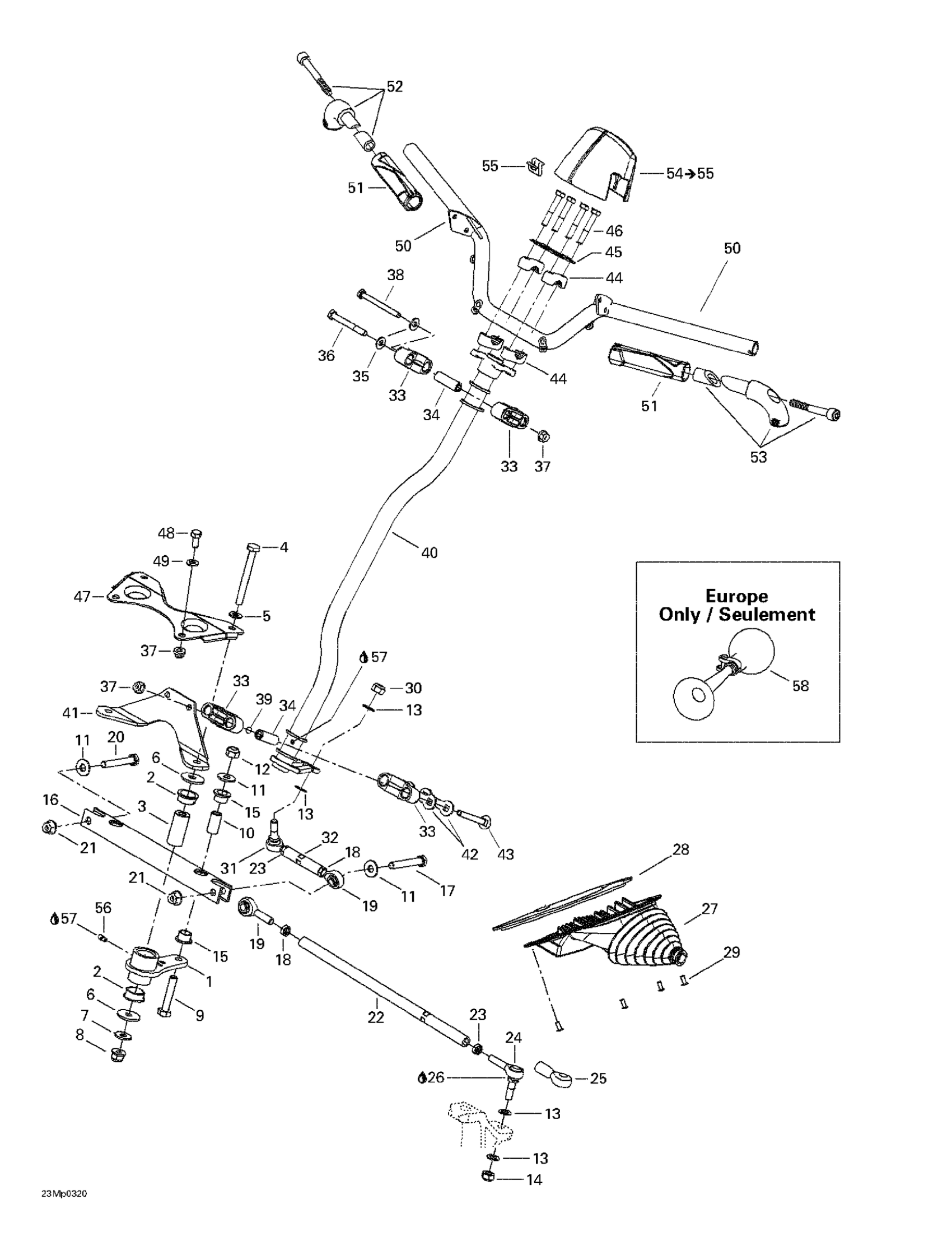

Ski-Doo MX Z Blair Morgan Special Edition, 2003 07- Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506151651

Unavailable

LH SWIVEL ARM - Call your local BRP dealership

506151652

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.28

6

Washer 10 mm

506150000

$2.74

7

Flat Washer M10 | 4X4

250200014

$1.49

8

Flange Nut M10

732610084

$6.79

9

Hex. Screw M10 X 55

207005544

$2.22

10

Pivot Bar

506151273

$15.99

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.69

13

Washer

503175800

$3.28

14

Elastic Flange Nut M10

232501416

$1.48

15

Swivel Bushing

503191555

$7.83

16

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

17

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

18

LH Threaded Hex. Jam Nut M10

250100016

$0.74

19

LH Ball Joint

506151810

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Hex. Flange Elastic Nut M10

233201414

$1.58

22

TIE-ROD - Call your local BRP dealership

506151340

Unavailable

23

RH Threaded Hex. Jam Nut M10

732610010

$0.74

24

RH Ball Joint

506151326

Unavailable

25

Protection Cap

570151000

$21.99

26

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

27

RH Tie-Rod Cap

506151725

$43.99

LH Tie-Rod Cap

506151726

$43.99

28

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

29

Pop Rivet 3/16"

390402200

$0.35

30

Elastic Flange Nut M10

232501416

$1.48

31

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

32

Tie-Rod

506151619

Unavailable

33

Housing Half

506150400

$7.62

34

Housing Bushing

506150500

$7.99

35

Washer

503189157

$3.28

36

Hex. Screw M8 X 70

207087044

$2.19

37

Hex. Flange Elastic Nut M8

233281414

$1.47

38

Hex. Screw M8 X 80

207088044

$1.68

39

O-RING - Call your local BRP dealership

506151140

Unavailable

40

Main Tube

506151334

Unavailable

41

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

Unavailable

42

Stopper Plate

506150600

$4.39

43

Carriage Bolt M8 X 70

207787044

$1.37

44

Steering Support

709400919

$22.49

45

REINFORCEMENT - Call your local BRP dealership

506151547

Unavailable

46

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

47

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

48

Hex. Screw M8 X 20

207182044

$0.74

49

Flat Washer 8 mm

234081410

$0.83

50

Handlebar

506151701

Unavailable

51

Handle Grip | MX Z 600. MX Z 800.

506151717

Unavailable

52

Black Hook

506151596

Unavailable

53

J-Hook

506151593

Unavailable

54

CAP - Call your local BRP dealership | Includes 29 to 30

506151660

Unavailable

55

Edge Clip

517302785

$0.88

56

Grease Fitting

408200700

$3.49

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

58

Horn

549011291

$35.99
