- Partiron
- OEM Parts
- Ski-Doo
- 2003
- MX Z
- MX Z Blair Morgan Special Edition, 2003
07- Front Take Apart Shocks

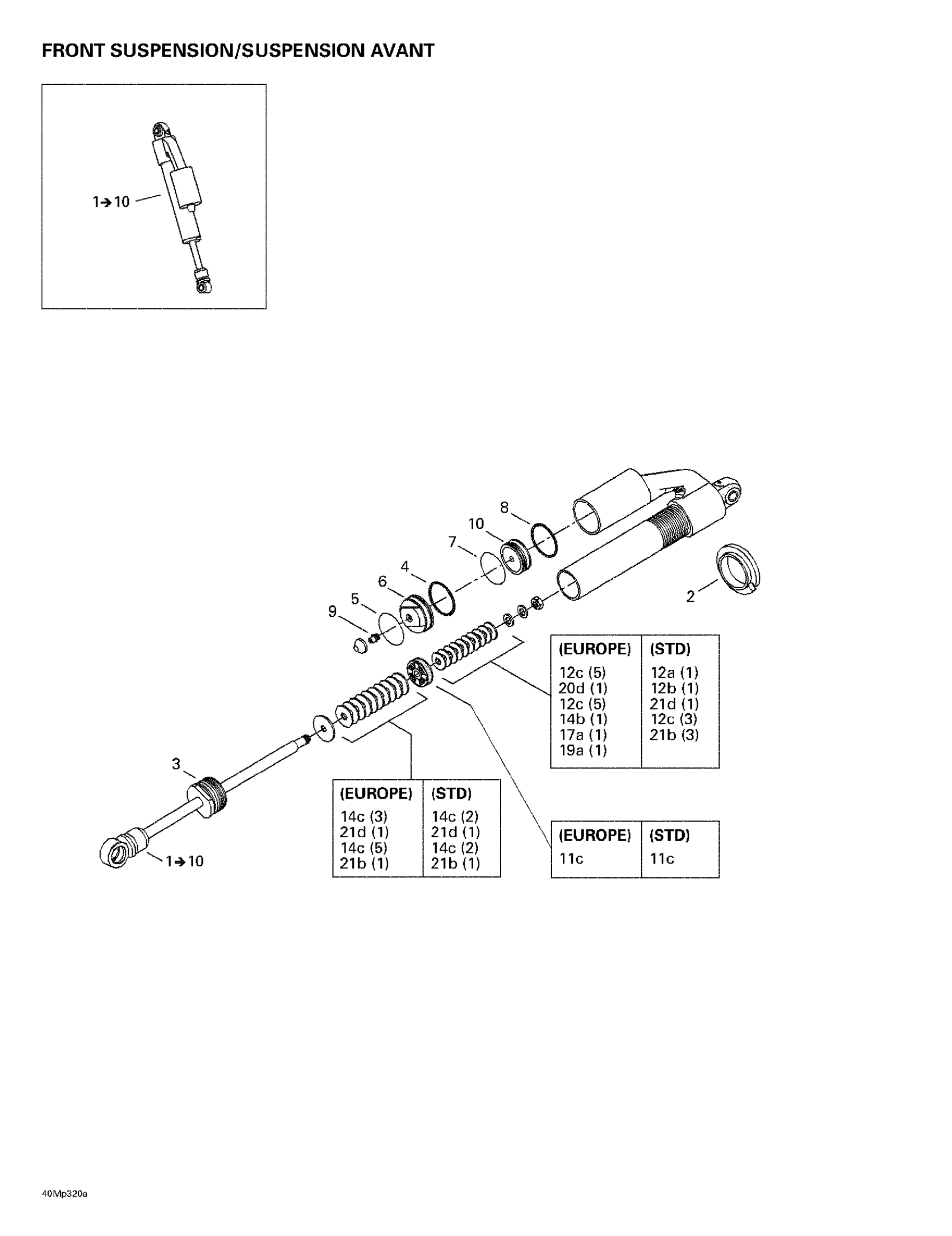

Ski-Doo MX Z Blair Morgan Special Edition, 2003 07- Front Take Apart Shocks Diagram
#
1
LH Front Shock
505070903
Unavailable
1
RH Front Shock
505070904
Unavailable
1
LH Front Shock
505070937
Unavailable
1
RH Front Shock
505070938
Unavailable
2
SPRING PLASTIC SEAT - Call your local BRP dealership
505071167
Unavailable
3
Sealing Cap
415093819
Unavailable
5
STOP RING - Call your local BRP dealership
415093805
Unavailable
6
Guide
415093808
Unavailable
9
AIR VALVE - Call your local BRP dealership
414888314
Unavailable
10
FREE PISTON - Call your local BRP dealership
415093812
Unavailable
11A
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
11B
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
11C
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
11D
Piston (C36)
414888304
Unavailable
12A
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
12B
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
12C
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
13A
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
13B
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
14A
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
14B
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
14C
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
15A
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
15B
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
16A
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
17A
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
17B
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
17C
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
18A
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
18B
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
19A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
19B
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
19C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
19D
Leaf Valve Ø16 X 0.114 (C36)
415083900
Unavailable
20A
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
20B
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
20C
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
20D
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
21A
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
21B
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
21C
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
21D
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
