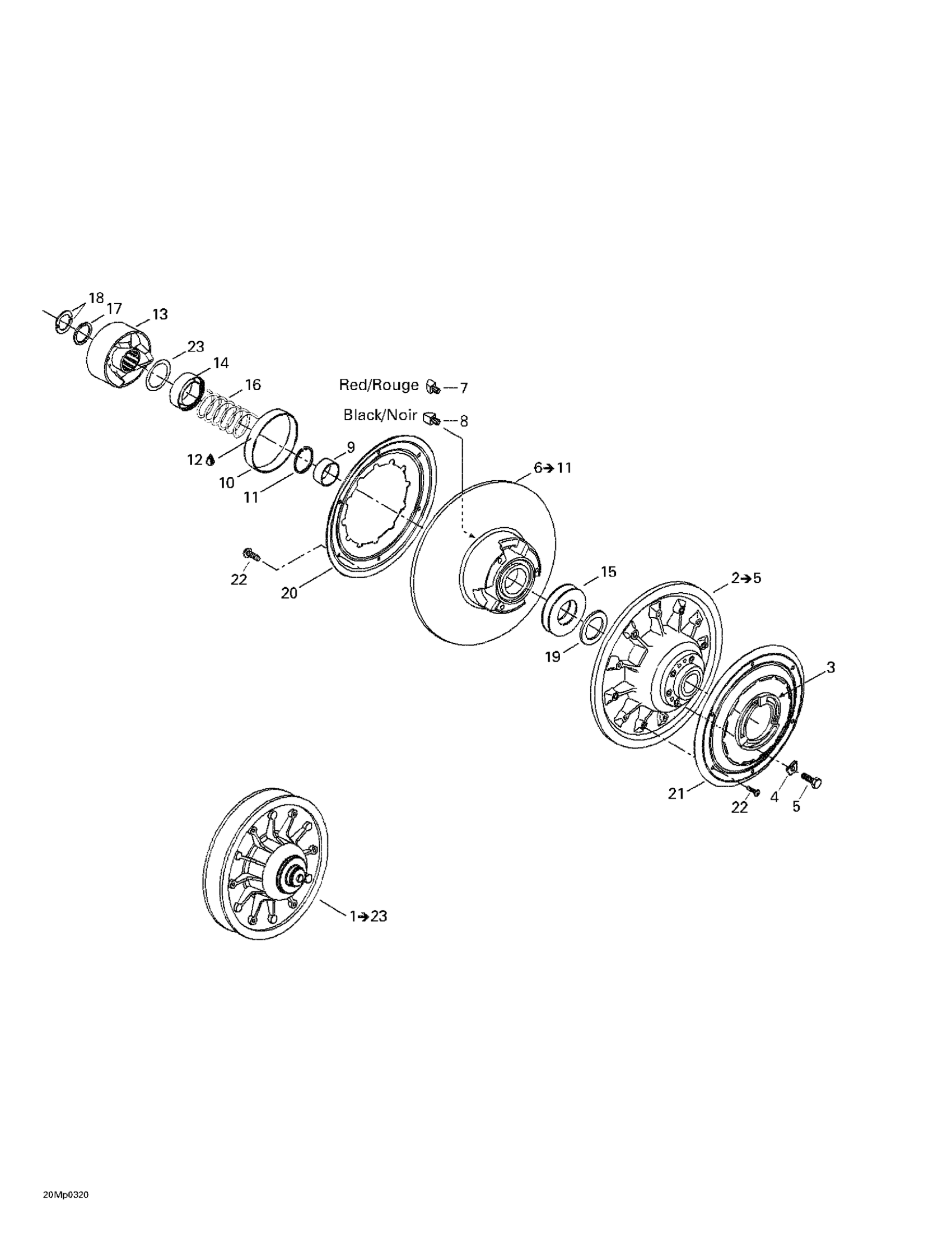

Ski-Doo MX Z Blair Morgan Special Edition, 2003 05- Driven Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y | Includes 40 to 44

417126603

Unavailable

3

Adjustment Ring

415005800

Unavailable

4

Adjustment Shim

415005900

Unavailable

5

Hex. Screw M6 X 25

207162544

$1.15

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

6

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

7

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

8

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

9

Not Available As Spare Part - Friction Washer

Unavailable

10

BUSHING - Call your local BRP dealership

417126902

Unavailable

11

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

12

Loctite 609, 10 ml

413703100

$26.99

13

Cam Ass'y

417126385

Unavailable

14

GUARD - Call your local BRP dealership

417126381

Unavailable

15

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

16

SPRING, BLACK - Call your local BRP dealership

417126687

Unavailable

17

Spacer

417126375

Unavailable

18

HALF KEY - Call your local BRP dealership

371911000

Unavailable

19

SHIM - Call your local BRP dealership

504112300

Unavailable

20

COVER - Call your local BRP dealership

417126698

Unavailable

21

AERODYNAMIC COVER - Call your local BRP dealership

504151831

Unavailable

22

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

23

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable
