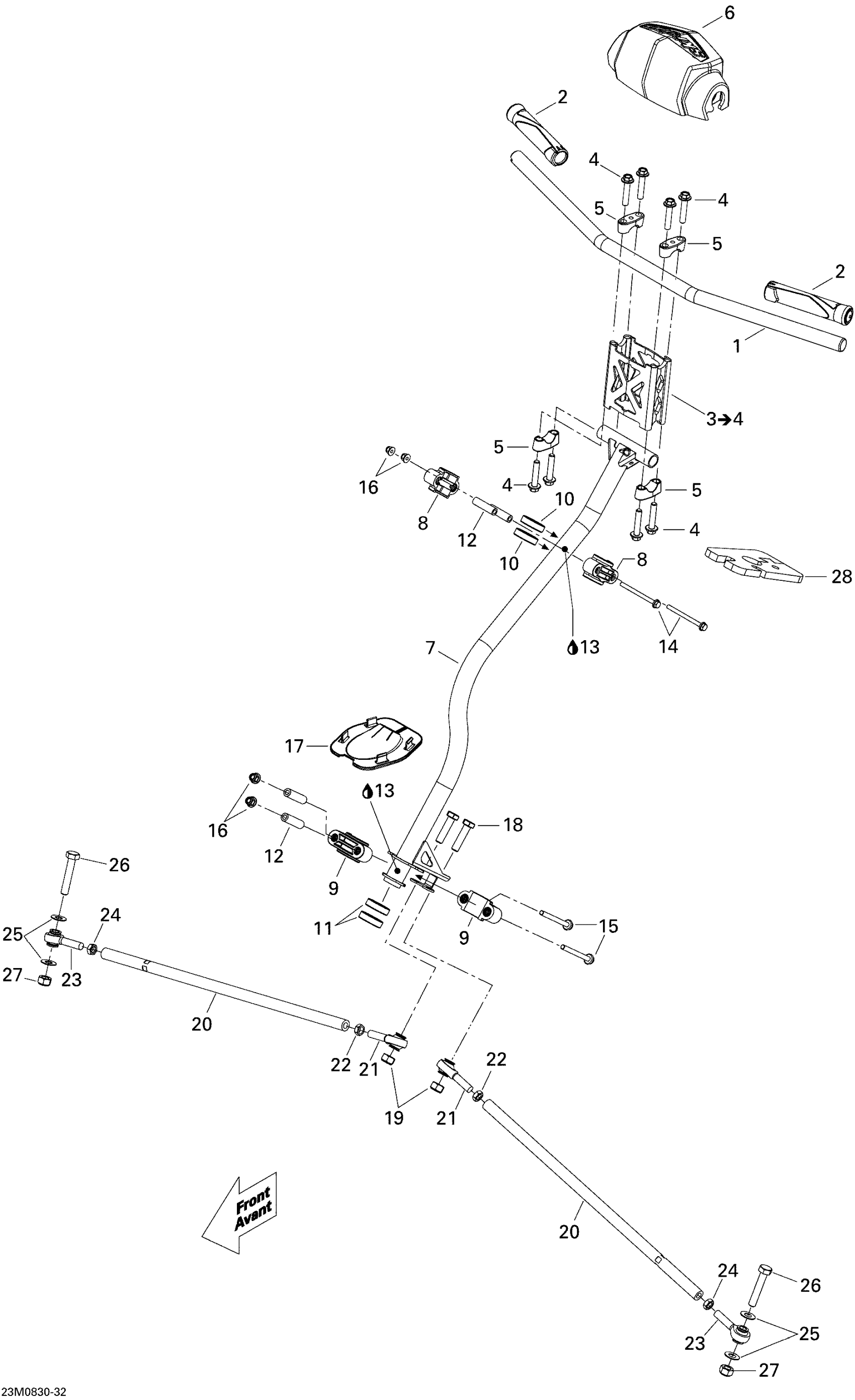

Ski-Doo MX Z ADRENALINE 600 HO SDI, 2008 07- Steering Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152203

Unavailable

2

Heated Handle Grip

506152211

$81.49

3

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

$67.99

4

Hex. Flange Screw M8 x 40

250000285

$0.82

5

Steering Support | Includes 40 to 40a

506152751

$13.99

6

Steering Pad

506152192

$58.99

7

Steering Column

506152964

$199.99

8

Upper Half Housing

506152219

$1.79

9

Lower Half-Housing

506152217

$7.62

10

Upper Vibration Ring

506152292

$0.74

11

Lower Vibration Ring

506152518

$4.79

12

Housing Bushing

506152297

$12.99

13

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

14

Hex. Flange Screw M6 X 70

207667056

$4.44

15

HEX. FLANGED SCREW M6 X 65 - Call your local BRP dealership

207666534

$2.11

16

Elastic Flange Nut M6 X 1.0

233261416

$2.11

17

Plate

506152163

$12.99

18

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

19

Elastic Stop Nut M10

232500416

$1.90

20

Tie-Rod Ass'y

506152496

$62.49

21

LH Thread Ball Joint

506152081

$41.49

22

LH Threaded Hex. Jam Nut M10

250100016

$0.74

23

RH Threaded Ball Joint

506152019

$41.49

24

RH Threaded Hex. Jam Nut M10

732610010

$0.74

25

Washer

506152194

$4.55

26

Hex. Screw M10 X 55

207005544

$2.22

27

Elastic Stop Nut M10

232500416

$1.90

28

CUSHION - Call your local BRP dealership

506152334

Unavailable
