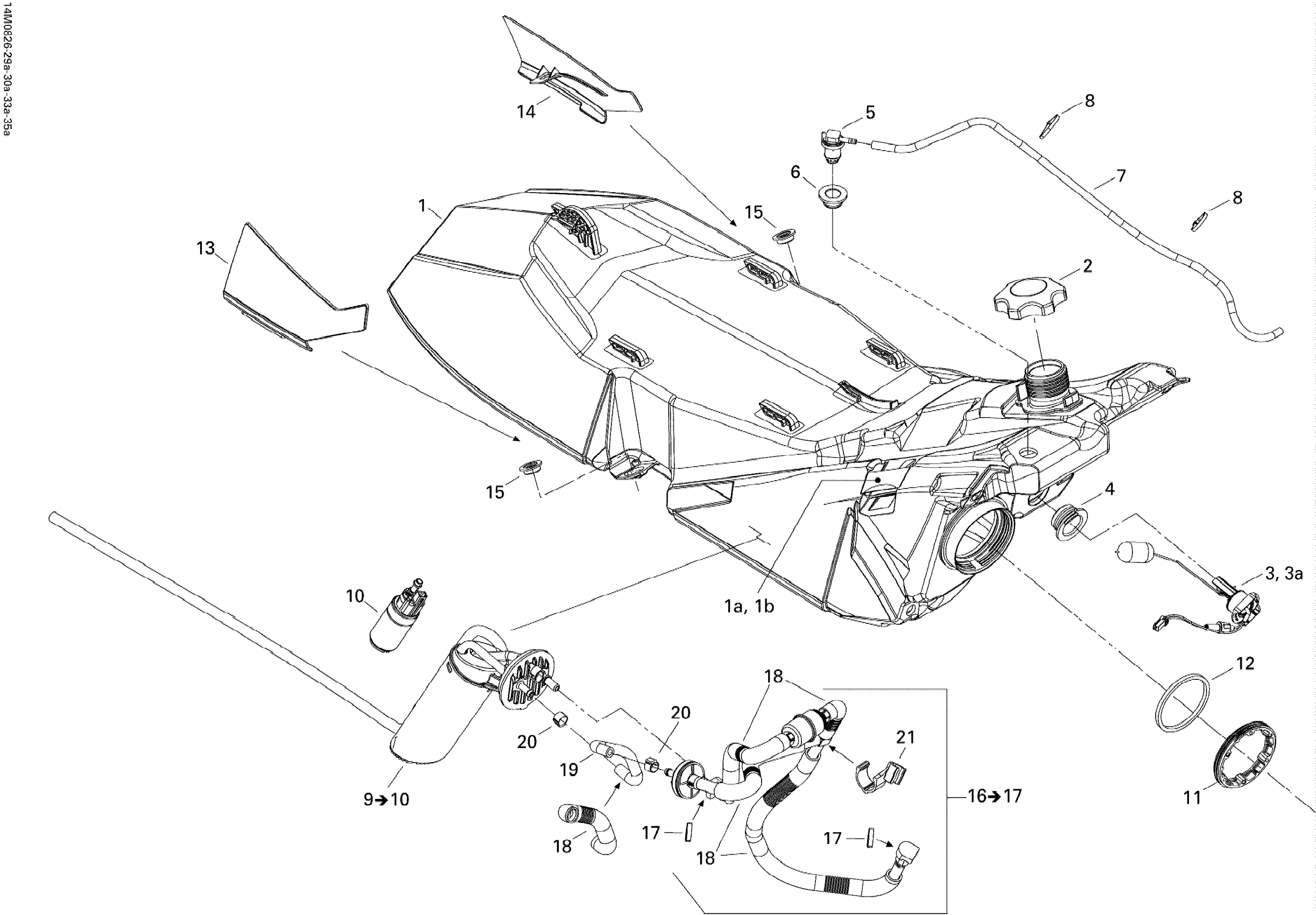

Ski-Doo MX Z ADRENALINE 600 HO SDI, 2008 02- Fuel System 600HO SDI Diagram

Fuel Tank

513033514

Unavailable

RH Panel Clip

513033471

$7.19

LH Panel Clip

513033472

$5.99

Fuel Tank Cap

513033025

$24.49

Sensor Level Fuel | Includes 40 to 40a

513033958

$109.99

Fuse, 0.5 Ampère

710001995

$8.32

GROMMET - Call your local BRP dealership

513033193

Unavailable

Check Valve

513033842

$35.99

Grommet

513033596

$21.99

Polyurethane Hose 10000Mm Long

219704410

$56.99

Tie-Rap 180 mm

414115200

$0.11

PUMP FUEL This part replaces 513033585.

513034262

$259.99

Not Available As Spare Part - Friction Washer

Unavailable

Ring

513033180

$19.99

Gasket

513033334

$24.49

RH Cap

513033418

$14.99

LH Cap

513033419

$14.99

Shoulder Bushing

513033326

$14.99

HOSE ASS`Y FUEL DELIVERY - Call your local BRP dealership

513033430

Unavailable

Locking Clip

513033135

$5.89

Tubing 16 Mm 1000Mm Long

219704408

$7.49

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

Crimp Clamp, 15.3-706R

293650047

$3.29

FILTER CLIP - Call your local BRP dealership

513033336

Unavailable
