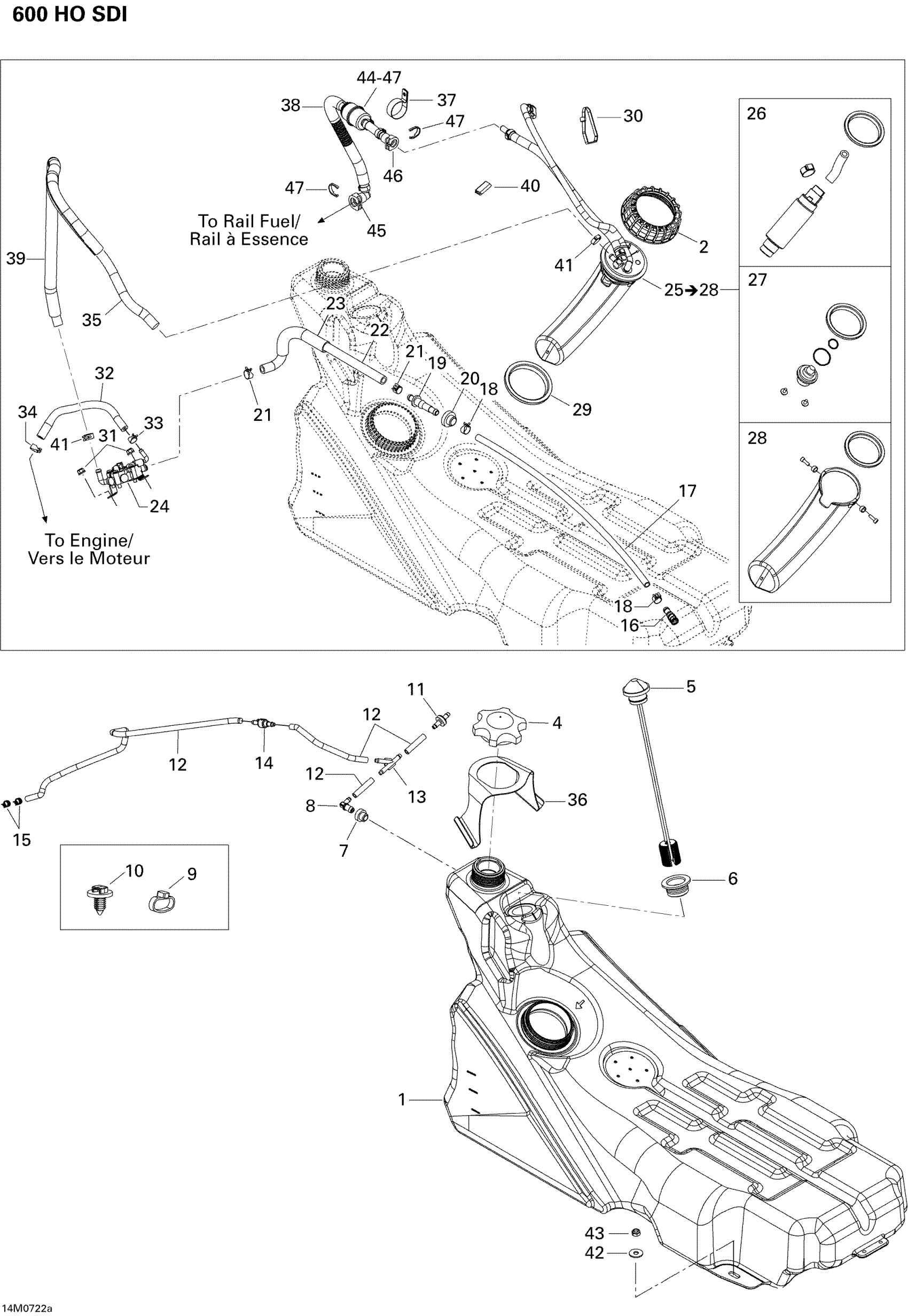

Ski-Doo MX Z Adrenaline 600 HO SDI, 2007 Fuel System 600 HO SDI Diagram

#

Description
Price

1

Fuel Tank | Includes 1 to 2, Sport

513033154

Unavailable

2

Nut, Fuel Pump Module

513033040

$26.84

4

Fuel Tank Cap

513033025

$22.36

5

FUEL GAUGE - Call your local BRP dealership

513033358

Unavailable

6

Grommet

293720058

$10.67

7

Grommet

513032908

$8.48

8

Male Connector

414580700

$3.88

9

Tie-Rap 180 mm

414115200

$0.10

10

Mount Dart

293730040

$0.99

11

Check Valve

275500398

$9.84

12

Polyurethane Hose 10000Mm Long

219704410

$52.96

13

Y-Fitting

293710059

$9.40

14

Check Valve

275500505

$29.07

15

Spring Clamp

414554800

$0.81

16

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

17

Hose

513033070

$12.24

18

Norma Spring Clamp

513033010

$8.42

19

Male Connector

414872700

Unavailable

20

Grommet | Europe

707800347

$8.70

21

Crimp Clamp

293650053

$2.78

22

Formed Hose

513033374

$28.33

23

Tubing 16 Mm 1000Mm Long

219704408

$7.15

24

Fuel Pump

403901812

$84.99

25

FUEL PUMP MODULE - Call your local BRP dealership | Includes 25 to 27

513033120

Unavailable

26

PUMP KIT - Call your local BRP dealership

861302700

Unavailable

27

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

28

Réservoir Kit

861302800

Unavailable

29

SEAL - Call your local BRP dealership

513033039

Unavailable

30

Tie-Rap 180 mm

414115200

$0.10

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

32

HOSE - Call your local BRP dealership

513033035

Unavailable

33

Spring Clamp

414415200

$0.81

34

Universal Spring Clamp

513033029

$4.96

35

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

36

SUPPORT - Call your local BRP dealership

513033066

Unavailable

37

Open Clamp

513033047

$4.73

38

Tubing 16 Mm 1000Mm Long

219704408

$7.15

39

Tubing 16 Mm 1000Mm Long

219704408

$7.15

40

Was 271000110 Protection Trim

219704353

$14.58

41

Crimp Clamp, 15.3-706R

293650047

$3.03

42

Flat Washer 8 mm

234082410

$1.27

43

Hex. Elastic Stop Nut M8

232581414

$0.54

44

Fuel Filter Ass'y | Includes 44 to 47

513033133

$84.30

45

Quick Fitting 90° Ass'y

415128965

$10.07

46

Female Quick Fitting Ass'y

709000125

$12.76

47

Locking Clip

513033135

$4.96
