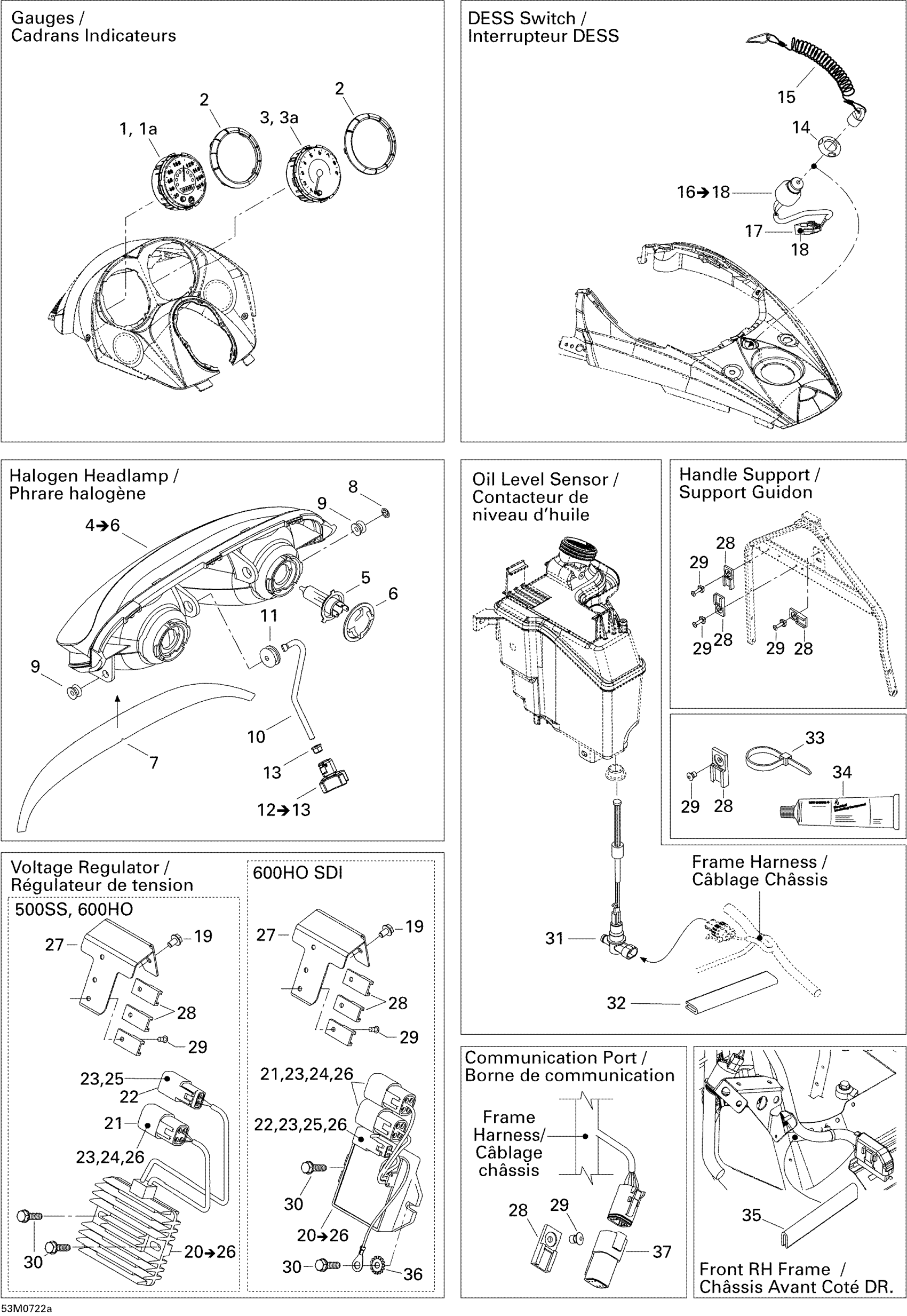

Ski-Doo MX Z Adrenaline 500SS, 2007 Electrical Accessories 1, 500 SS, 600 HO Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1a

515176477

$331.51

1a

REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership

415128938

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$12.69

3

TACHOMETER - Call your local BRP dealership

515176478

$129.97

3a

Lens

415129320

$23.05

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$288.43

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

6

BULB HOLDER - Call your local BRP dealership

515176385

$9.57

7

HEADLAMP DECAL - Call your local BRP dealership

516001328

$3.82

8

Push Nut

732610072

$1.72

9

HEADLAMP BUSHING - Call your local BRP dealership

515175760

$5.51

10

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

11

Grommet - Call your local BRP dealership

415100800

$3.97

12

HANDLE - Call your local BRP dealership

515175975

$7.60

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Safety Nut (DESS Switch)

278002963

$2.72

15

DESS

515178284

$81.51

16

DESS Switch

515177249

$106.12

17

Male Terminal

515175232

$1.49

18

Male Housing, 3 Circuits

515175494

$15.35

19

Hex. Forming Screw M6 X 10

210261050

$1.42

20

Voltage Regulator

515175968

$233.05

21

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

$29.20

22

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

23

Male Terminal

515175568

$7.48

24

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

$2.86

25

Male Lock, 2 Circuits

278001672

$3.02

26

Sealing Cap

293000052

$2.55

27

HOUSING SUPPORT - Call your local BRP dealership

515176191

Unavailable

28

Clip

270000141

$8.33

29

Avdel Rivet 3/16"

293150037

$0.47

30

Hexagonal Head Screw

210262050

$1.74

31

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

32

TRIM - Call your local BRP dealership

509000263

$5.35

33

Tie Wrap 368 mm

293750008

$0.85

34

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

35

Was 271000110 Protection Trim

219704353

$15.03

36

Not Available As Spare Parts

XXX

Unavailable

37

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

$10.63
