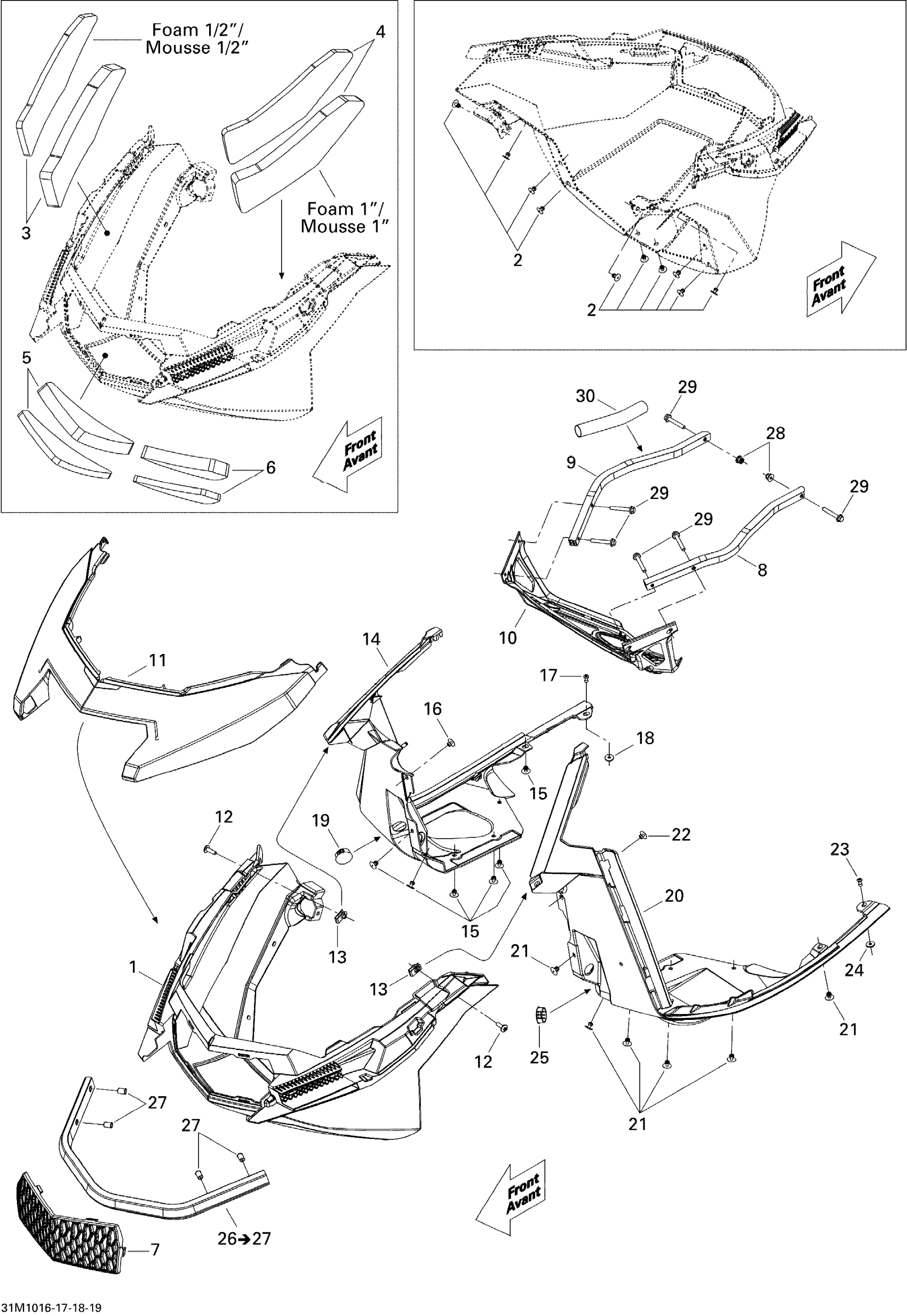

Ski-Doo MX Z Adrenaline 1200, 2010 09- Bottom Pan Adrenaline Diagram

#

Description
Price

1

Deep Black Front Bottom Pan

502006873

$114.99

2

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3

RH UPPER HULL FOAM - Call your local BRP dealership

502007217

Unavailable

4

LH UPPER HULL FOAM - Call your local BRP dealership

502007219

Unavailable

5

RH MIDDLE HULL FOAM - Call your local BRP dealership

502007220

$18.49

6

LH MIDDLE HULL FOAM - Call your local BRP dealership

502007223

Unavailable

7

Botton Pan Grille

502006887

$27.99

8

LH Support

502007357

$31.99

9

RH Support

502006926

$28.99

10

Bracket

502006938

$21.99

11

Black Bottom Pan Cap

502006898

$98.99

12

Torx Screw M6 X 20

250000722

$1.68

13

Panel Nut M6 X 1.0

250100198

$2.11

14

RH BOTTOM PAN - Call your local BRP dealership

502006877

Unavailable

15

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

16

Pop Rivet 3/16"

293150103

$0.55

17

Pop Rivet 3/16"

390402300

$0.75

18

Washer

517124300

$0.19

19

Black, Nylon Cap

414916600

$4.69

20

LH Bottom Pan

502006878

$67.99

21

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

22

Pop Rivet 3/16"

293150103

$0.55

23

Pop Rivet 3/16"

390402300

$0.75

24

Washer

517124300

$0.19

25

Black, Nylon Cap

414916600

$4.69

26

Black Bumper

502006939

$158.99

27

Insert

293450275

$12.99

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Hex. Flange Screw M6 X 40

207664044

$2.22

30

Tubing 25 MM 1000MM Long

219704402

$15.99
