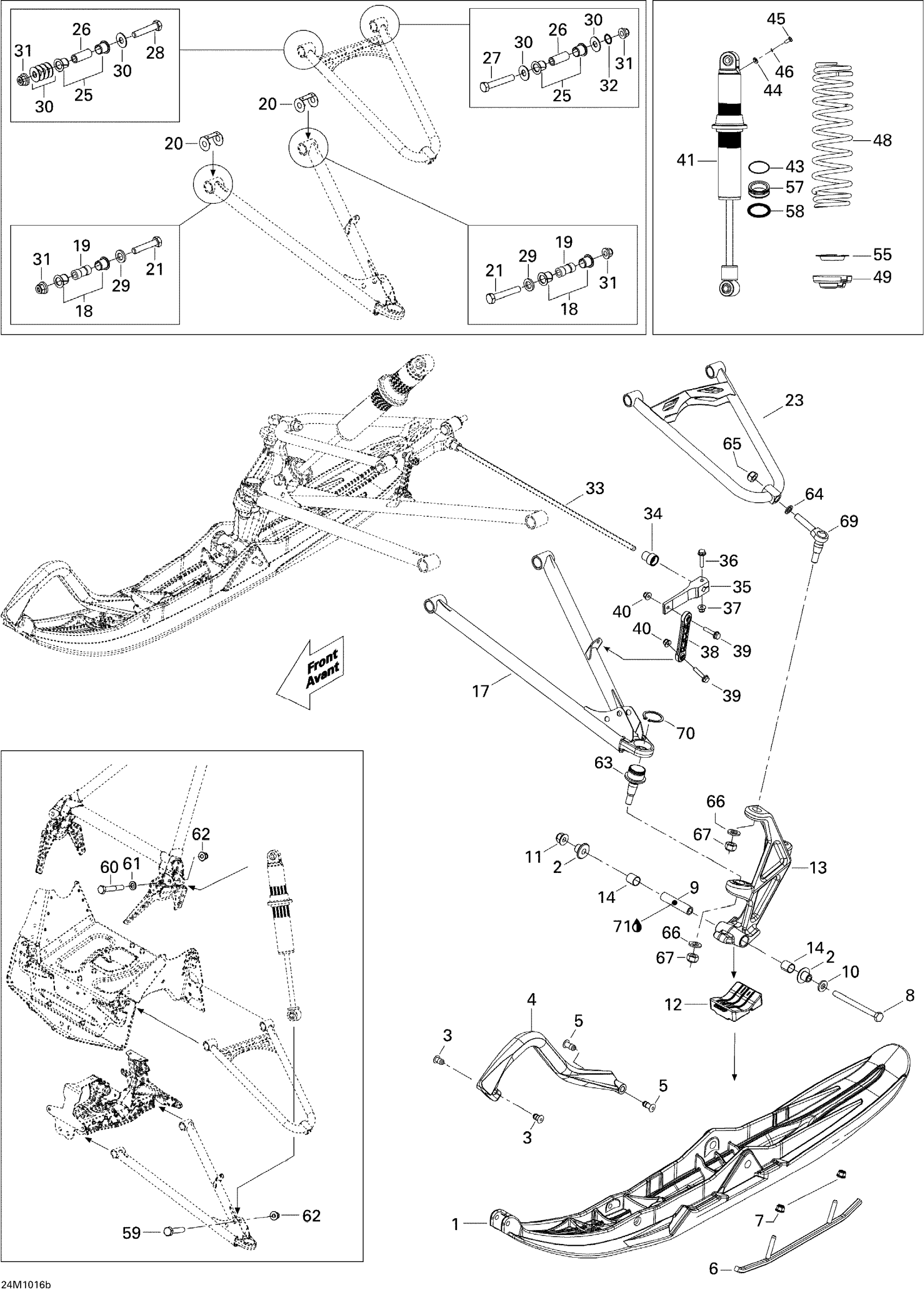

Ski-Doo MX Z Adrenaline 1200, 2010 Front Suspension And Ski ADR Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$155.94

1

Deep Black, LH Pilot 5.7 Ski

505072854

$170.12

2

Ski Bushing

505071781

$14.90

3

Retainer 17mm long

505071812

$4.30

4

Black, Handle

505070963

$34.30

5

Retainer 23mm Long

505072133

$4.88

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

9

Spacer

506133300

$19.37

10

Washer

732900049

$0.55

11

Hex. Flange Elastic Nut M10

233201414

$1.45

12

Ski Stopper

505071779

$15.64

13

Clear, LH Ski Leg

505073007

$226.09

13

Clear, RH Ski Leg

505073008

$220.12

14

Leg Bushing

505072690

$5.75

17

Black, RH Lower Arm

505072664

$184.30

17

Black, LH Lower Arm

505072665

$184.30

18

Bushing

505072208

$3.04

19

Sleeve

505072209

$13.96

20

Wear Plate

505072634

$4.31

21

Screw Hex. M10 X 70

250001024

$2.00

23

Upper Arm | SE White/White Models

505072374

$138.03

25

Bushing

505072250

$3.04

26

Sleeve

505072143

$8.36

27

Screw Hex. M10 X 60

250001023

$2.00

28

Screw Hex. M10 X 50

250001022

$1.63

29

Washer

503189564

$0.70

30

Washer

505072392

$4.51

31

Hex. Flange Elastic Nut M10

250100165

$0.81

32

O-Ring

505072448

$2.18

33

Stabilisator

505072602

$70.12

34

Bushing

505072064

$2.15

35

Stabilisator Lever

505072394

$15.64

36

Hex. Flange Screw M6 X 30

207663046

$1.63

37

Elastic Flange Nut M6 X 1.0

233261416

$2.00

38

Sway Bar Double Joint Link

505072204

$18.63

39

Hex. Flange Screw M6 X 30

207663046

$1.63

40

Elastic Flange Nut M6 X 1.0

233261416

$2.00

41

Front Shock | Model-Europe

505073237

$403.70

43

Piston Ring

503189308

$75.34

44

Air Valve

505070398

$17.13

45

Screw | Not Shown

505070399

$3.88

46

O-Ring

505070400

$4.25

48

YELLOW SPRING - Call your local BRP dealership | RENEGADE ADR 1000

505072514

Unavailable

49

Spring Stopper

706200881

$11.82

55

Cap

706200785

$4.28

57

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

58

O-Ring

414888312

$15.64

59

Hex. Screw M10 X 55

207005544

$2.12

60

Hex. Screw M10 X 1.5 X 65

207006544

$2.63

61

Washer

503189564

$0.70

62

Hex. Flange Elastic Nut M10

233201414

$1.45

63

Ball Joint

505073636

$48.48

64

Washer

503189276

$3.10

65

Hex. Elastic Hex. Nut M12

250100089

$0.45

67

Hex. Elastic Hex. Nut M12

250100089

$0.45

69

Upper Ball Joint

505072257

$16.39

70

Circlip

293370035

$2.48

71

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
