2002 Ski-Doo MX Z 800 Rev Driven Pulley Diagram

← All diagrams

Find the part on the Driven Pulley diagram for your 2002 Ski-Doo MX Z 800 Rev, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

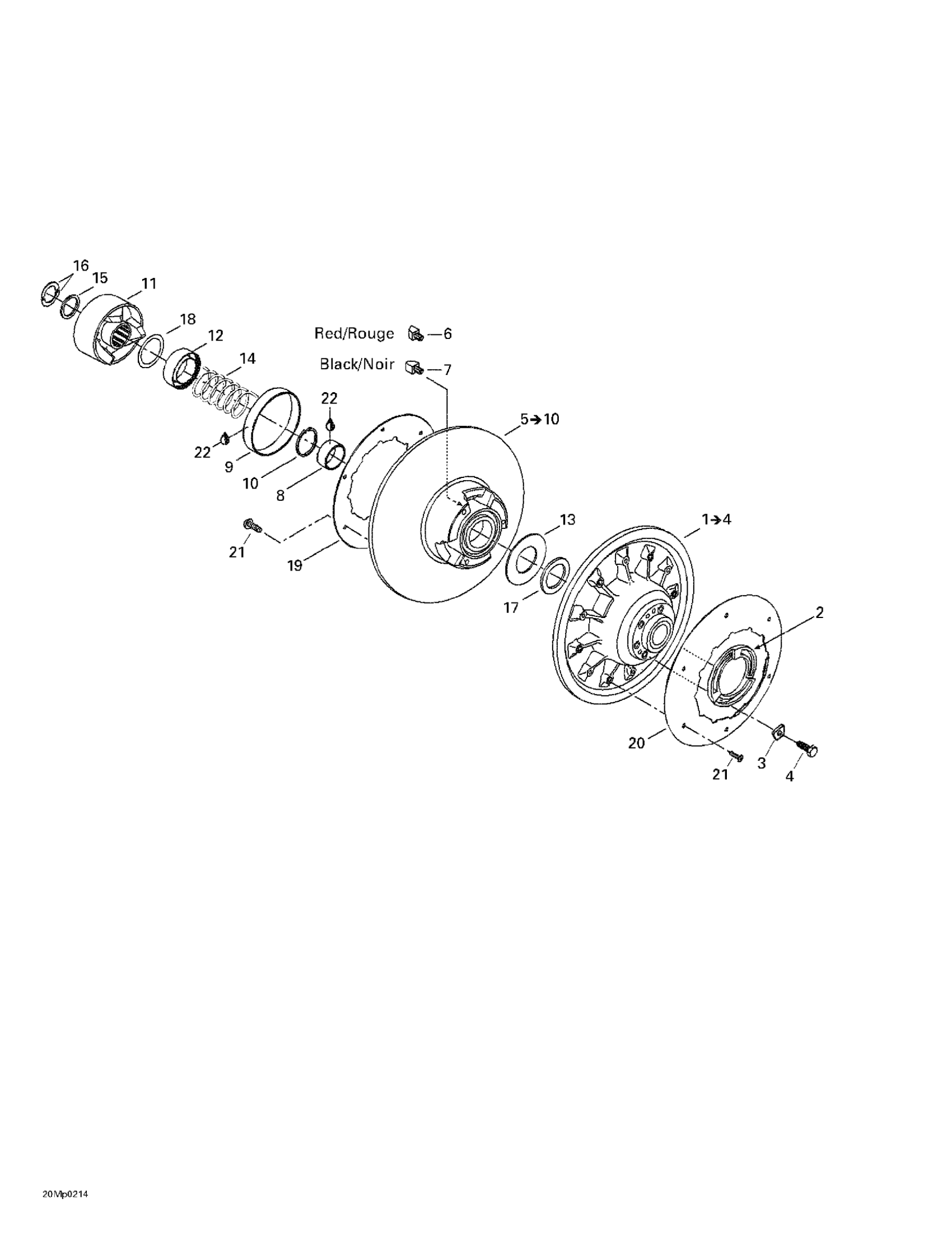

2002 Ski-Doo MX Z 800 Rev Driven Pulley Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Fixed Flange Ass’Y | INCLUDES ITEMS 39 TO 42

417126527

—
Out of stock

2

Adjustment Ring

415005800

—
Out of stock

3

Adjustment Shim

415005900

—
Out of stock

4

Hex. Screw M6 X 25

207162544

1

$1.05

In stock

5

Sliding Flange Ass’Y | INCLUDES ITEMS 43 TO 48

417126318

—
Out of stock

6

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

3
Out of stock

8

Not Available As Spare Part - Friction Washer

—
Out of stock

9

BUSHING - Call your local BRP dealership

417126902

—
Out of stock

10

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

—
Out of stock

11

Cam Ass'y

417126385

—
Out of stock

12

—

$6.62

In stock

13

STOPPER WASHER - Call your local BRP dealership

504099600

—
Out of stock

14

Release Spring, Purple | North America

414978300

1
Out of stock

15

Spacer

417126368

—
Out of stock

16

HALF KEY - Call your local BRP dealership

371911000

—
Out of stock

17

SHIM - Call your local BRP dealership

504112300

—
Out of stock

18

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

—
Out of stock

19

Aerodynamic Cover

504149700

—
Out of stock

20

AERODYNAMIC COVER - Call your local BRP dealership

504151831

—
Out of stock

22

Loctite 609, 10 ml

413703100

1
Out of stock
