2002 Ski-Doo MX Z 800 Rev Fuel System Diagram

← All diagrams

Find the part on the Fuel System diagram for your 2002 Ski-Doo MX Z 800 Rev, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

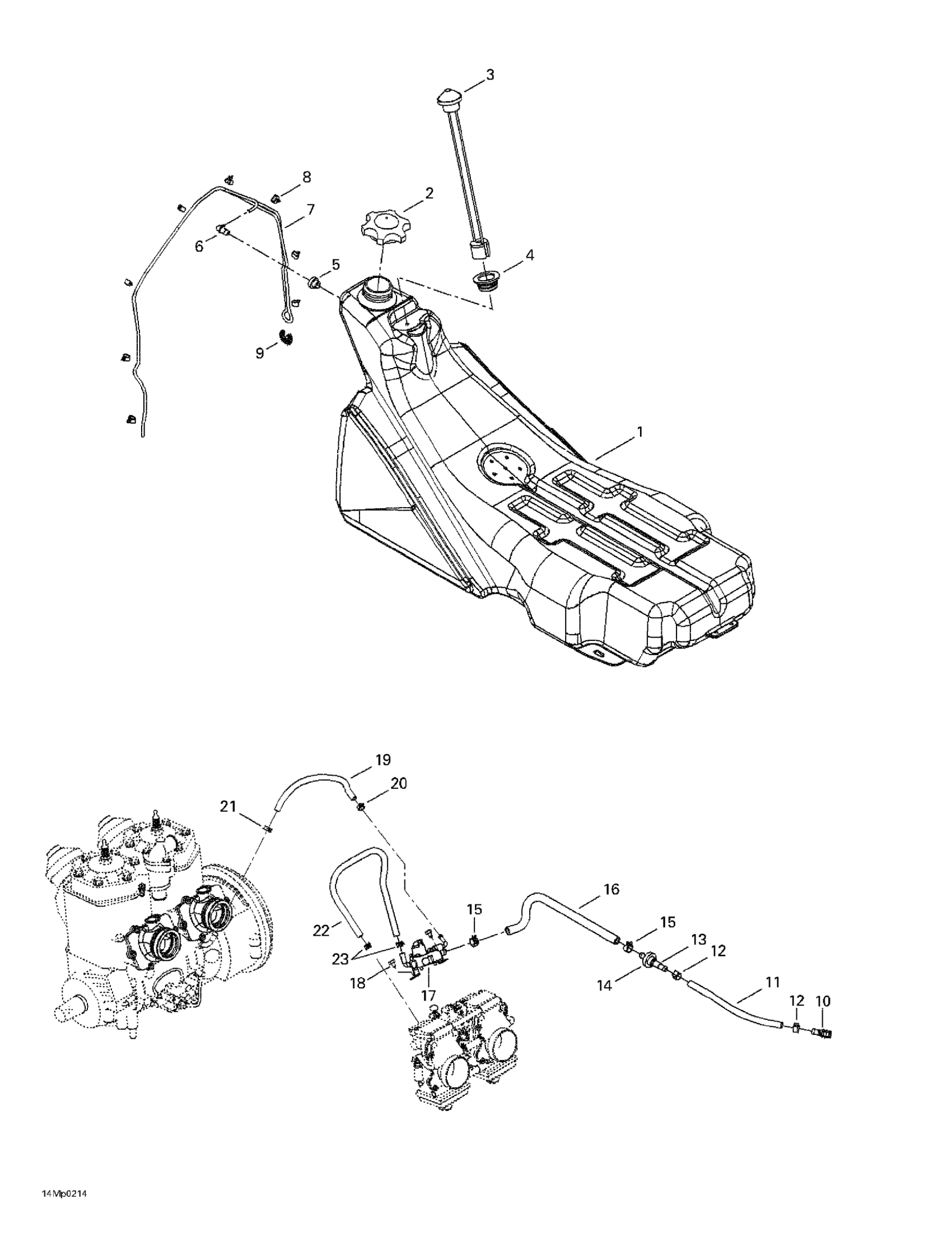

2002 Ski-Doo MX Z 800 Rev Fuel System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Fuel Tank

513032991

—
Out of stock

2

Fuel Tank Cap

513033025

1

$19.47

In stock

3

FUEL GAUGE - Call your local BRP dealership

513033358

1
Out of stock

4

Grommet

293720058

1
Out of stock

5

Grommet

513032908

1

$8.74

In stock

6

Male Connector

414814100

1
Out of stock

7

1

$9.15

In stock

8

TUBE CLAMP - Call your local BRP dealership

513032923

—
Out of stock

9

SPRING - Call your local BRP dealership

414818200

—
Out of stock

10

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

1
Out of stock

11

Hose

415005700

1

$5.49

In stock

12

Norma Spring Clamp

513033010

2
Out of stock

13

Male Connector

414872700

1
Out of stock

14

Grommet | Europe

707800347

1

$7.58

In stock

15

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

—
Out of stock

16

Formed Hose

513033374

1

$29.20

In stock

17

Fuel Pump | Manuel Start

403901811

1
Out of stock

18

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

—
Out of stock

19

HOSE - Call your local BRP dealership

513033035

—
Out of stock

20

Spring Clamp

414415200

1
Out of stock

21

Universal Spring Clamp

513033029

1
Out of stock

22

Tube

415117800

—
Out of stock

23

Spring Clamp

414420700

1
Out of stock
