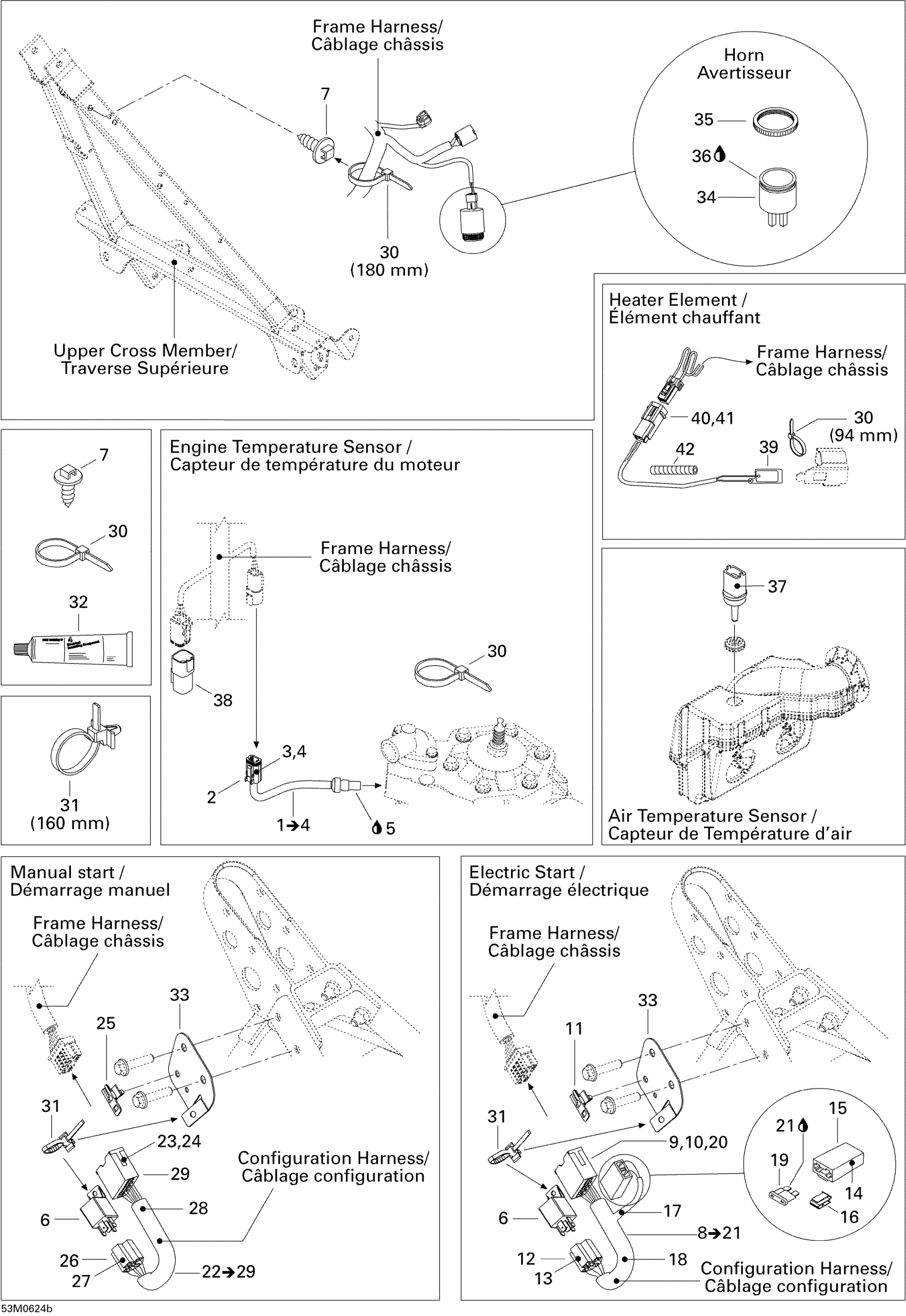

Ski-Doo MX Z 800 HO Renegade & Renegade X, 2006 10- Electrical Accessories 2 Diagram

#

Description
Price

1

Temperature Sensor This part replaces 515176043.

515177835

$92.99

2

Male Connector, 4 Circuits | CE

278000739

$19.49

3

Female Terminal

278000632

$2.09

4

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

5

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

6

Relay | DS 650 X

710010053

$23.49

7

Mount Dart

293730040

$1.04

8

Configuration Harness Ass'y | Includes 13 to 27

515175721

$61.99

9

Male Terminal

515175232

$1.58

10

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

11

Housing Support

515175283

$9.19

12

Female Housing, 5 Circuits

409209900

$9.59

13

Female Terminal

561503100

$2.41

14

Female Terminal

409011600

$5.39

15

Fuse Holder

409004000

$8.09

16

CLIP - Call your local BRP dealership

409014200

Unavailable

17

Tubing 6 Mm 3000Mm Long

219704425

$13.75

18

Was 409901800 Tubing (13 mm)

219704400

$14.49

19

Fuse, 5 Amperes | CE

278000344

$3.28

20

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

21

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

22

CONFIGURATION HARNESS - Call your local BRP dealership | Manual Start, Includes 22 to 29

515176175

Unavailable

23

Male Terminal

515175232

$1.58

24

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

25

Housing Support

515175283

$9.19

26

Female Housing, 5 Circuits

409209900

$9.59

27

Female Terminal

561503100

$2.41

28

Was 409901800 Tubing (13 mm)

219704400

$14.49

29

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

30

Tie-Rap 180 mm

414115200

$0.11

30

Tie Wrap 94 mm | 4X4

293750001

$1.03

31

Tie-Rap 173 mm

293750009

$1.04

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

HARNESS SUPPORT - Call your local BRP dealership

515176020

Unavailable

34

HORN - Call your local BRP dealership

515176035

Unavailable

35

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

38

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

39

Heater Element

515176256

Unavailable

40

Male Terminal Housing, 2 Circuits

515175654

$9.12

41

Male Terminal

515175232

$1.58

42

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99
