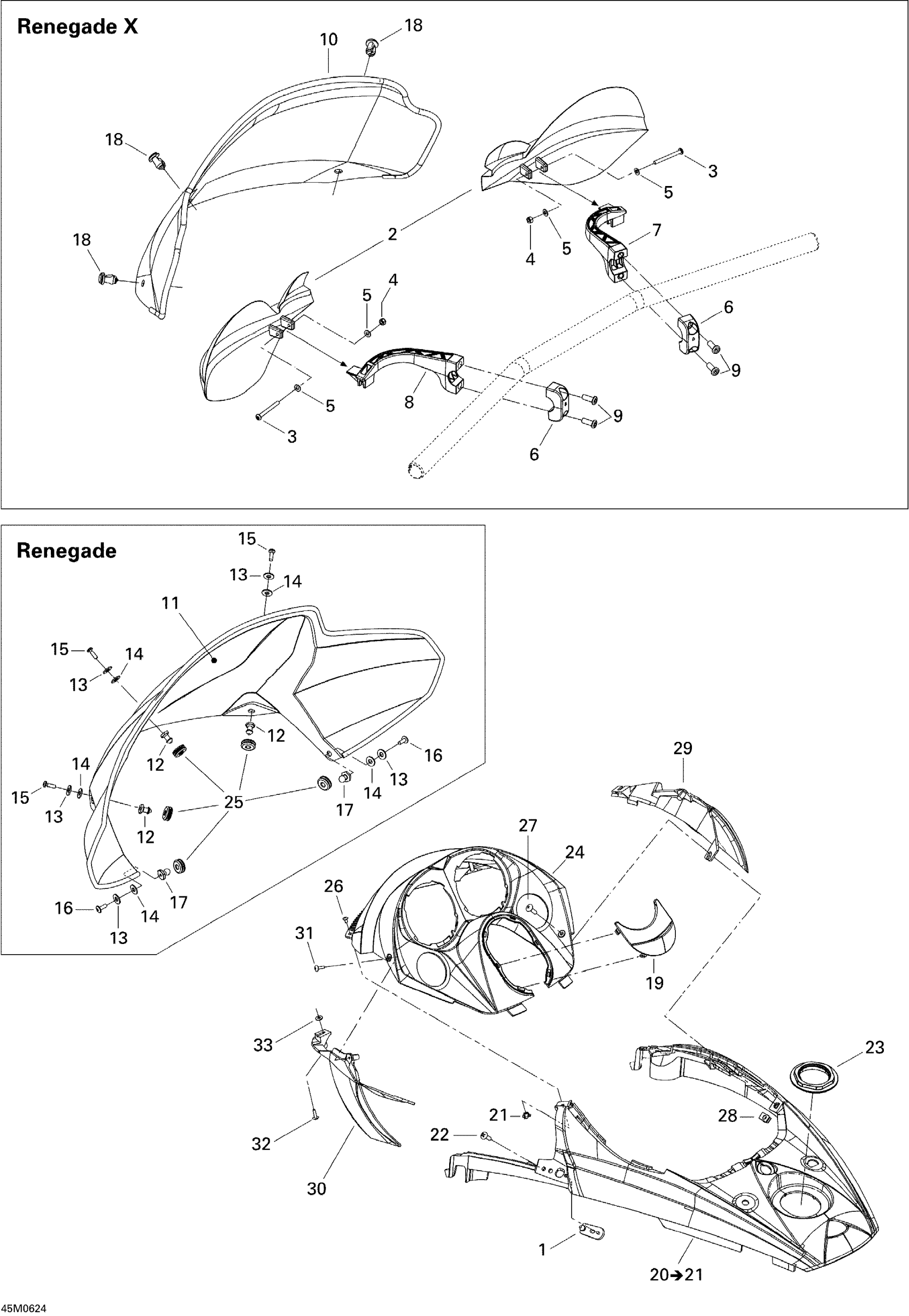

Ski-Doo MX Z 800 HO Renegade & Renegade X, 2006 Windshield And Console Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Air Deflector Kit, Yellow

415128768

Unavailable

3

Socket Head Screw M4 X 40 | X

205444086

$1.63

4

Elastic Stop Nut M4

232541484

$0.70

5

Flat Washer 4 mm

234041480

$0.70

6

U-Clamp | XT

517303264

$11.09

7

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

8

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

9

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

10

LOW WINDSHIELD - Call your local BRP dealership

517303045

Unavailable

11

Windshield With Trim, Medium

517303511

$120.12

12

Knob

517303439

$4.28

13

Washer M5

250200025

$0.70

14

Rubber Washer 5 mm

250200024

$2.03

15

Torx Screw K50 X 16

250000720

$1.60

16

Torx Screw M5 X 14

250000742

$1.37

17

Knob

517245800

$10.51

18

Tuflok Plastic Rivet

293150230

$1.39

19

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

20

CENTER CONSOLE, BLACK - Call your local BRP dealership | Includes 10 to 11, (Black/Yellow)

517302795

Unavailable

20

CENTER CONSOLE, YELLOW - Call your local BRP dealership | Includes 10 to 11

517302845

Unavailable

21

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

21

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

22

Torx Screw M6 X 20

250000722

$1.54

23

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

24

INDICATOR SUPPORT - Call your local BRP dealership

517303472

Unavailable

24

INDICATOR SUPPORT - Call your local BRP dealership

517303538

Unavailable

25

Grommet

517302841

$2.55

26

Torx Screw M4 X 8

250000127

$1.06

27

Torx Screw M5 X 20

250000724

$1.60

28

Panel Nut M5 X 0.8

250000958

$4.00

29

RH Air Deflector

517302798

Unavailable

29

RH AIR DEFLECTOR - Call your local BRP dealership

517303413

Unavailable

30

LH AIR DEFLECTOR - Call your local BRP dealership

517302799

Unavailable

30

LH AIR DEFLECTOR - Call your local BRP dealership

517303414

Unavailable

31

Phillips Screw K40 X 16

250000723

$0.93

32

Screw M4 X 16

250000725

$3.30

33

Flat Washer 4 mm, Stainless

234042600

$1.06
