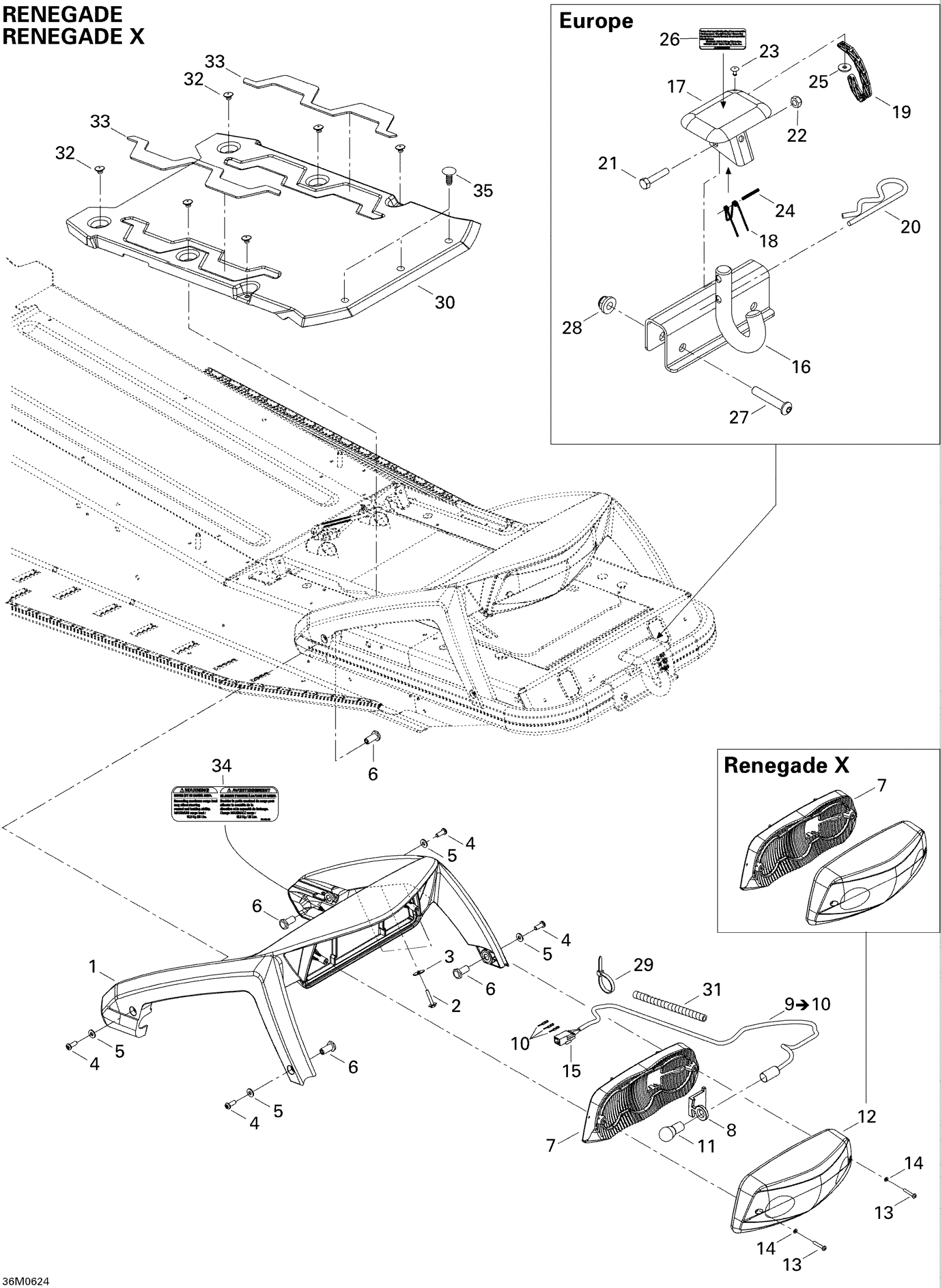

Ski-Doo MX Z 800 HO Renegade & Renegade X, 2006 09- Luggage Rack Diagram

#

Description
Price

1

Luggage Rack

511000425

Unavailable

2

Self Tapping Screw #8 X 5/8

250000202

$1.48

3

Flat Washer

250200040

$1.90

4

Torx Screw M6 X 20

250000722

$1.68

5

Flat Washer

250200039

$0.74

6

INSERT - Call your local BRP dealership

511000398

Unavailable

7

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

8

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

9

BULB SOCKET - Call your local BRP dealership | Includes 9 to 10

511000466

Unavailable

10

Male Terminal

515175232

$1.58

11

Bulb

520000758

$9.10

12

Lens

511000315

$36.99

12

Lens And Reflector Kit | LTD

861509300

Unavailable

13

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

14

Washer - Call your local BRP dealership

414516400

Unavailable

15

Male Housing, 3 Circuits

515175494

$16.18

16

HITCH, BLACK - Call your local BRP dealership | Europe

511000354

Unavailable

17

Hitch Protector | Europe

517152700

Unavailable

18

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Hair Pin

114045200

$11.11

21

Hex. Screw M6 X 30

207063044

$1.26

22

Elastic Stop Nut M6

232561414

$0.55

23

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

24

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

27

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Tie Wrap 94 mm | 4X4

293750001

$1.03

30

RADIATOR COVER - Call your local BRP dealership

511000436

Unavailable

31

Tubing 6 Mm 3000Mm Long

219704425

$13.75

32

Pop Rivet 3/16"

293150103

$0.55

33

Carpet

511000396

Unavailable

34

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable

35

Black, Dart

293730006

$0.99
