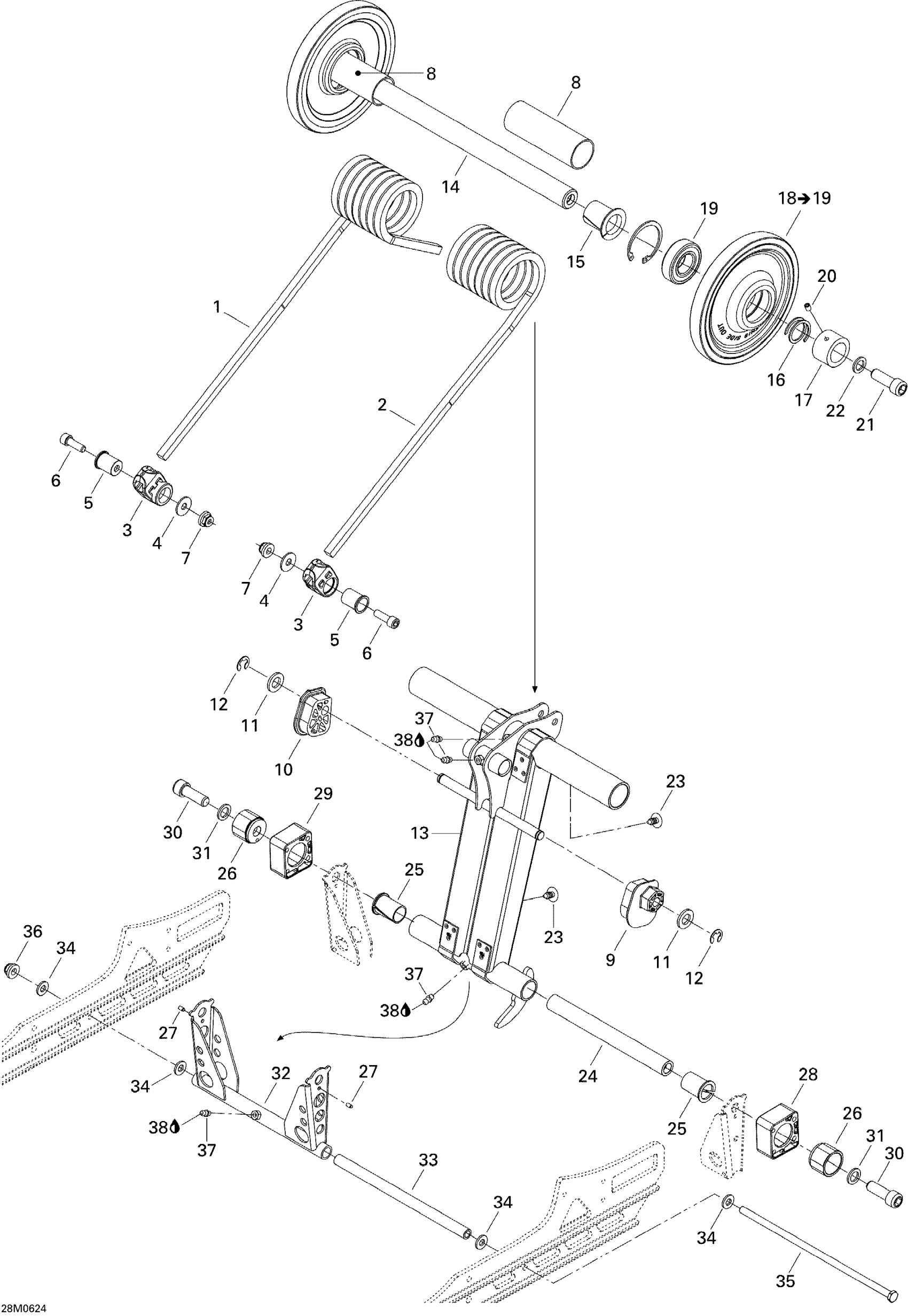

Ski-Doo MX Z 800 HO Renegade & Renegade X, 2006 Rear Arm Diagram

#

Description
Price

1

RH Spring

503191287

$75.34

2

LH Spring

503191289

$75.34

3

SPRING SUPPORT - Call your local BRP dealership

503190583

Unavailable

4

Flat Washer 8 mm

234082410

$1.27

5

Spring Support Kit

861805547

$7.90

6

Socket Head Screw M8 X 25

205082544

$1.06

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Plastic Bushing

503191041

Unavailable

9

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

10

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

11

Flat Washer 12 mm

234021410

$0.66

12

E-Circlip

293370013

$0.60

13

Rear Arm

503191119

Unavailable

14

Upper Shaft

503190569

Unavailable

15

CUSHION - Call your local BRP dealership

503190619

$4.01

16

Axle Spring

503189146

$7.31

17

RETAINER RING - Call your local BRP dealership

503190570

Unavailable

18

WHEEL 155 ASS'Y - Call your local BRP dealership | Includes 28 to 29

503191046

Unavailable

19

Ball Bearing

293350115

$10.82

20

Socket Set Screw M6 X 8

206260844

$1.43

21

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

22

Washer

503189276

$3.10

23

Black, Dart

414644300

$0.90

24

Lower Shaft

503192330

$44.75

25

Cushion

503191640

$5.54

26

Block Guide

503189488

$36.54

27

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

28

LH Block, 4 Positions

503191563

Unavailable

29

RH Block, 4 Positions

503190622

Unavailable

30

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

31

Washer | 7415/7416. 7417/7418.

503189148

$2.64

32

PIVOT ARM - Call your local BRP dealership

503191091

Unavailable

33

Pivot Arm Axle

503189156

$20.12

34

Washer

503189157

$3.10

35

Bolt M8 X 248mm

503192440

$29.07

36

Hex. Flange Elastic Nut M8

233281414

$1.31

37

Grease Fitting

408200700

$3.21

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
