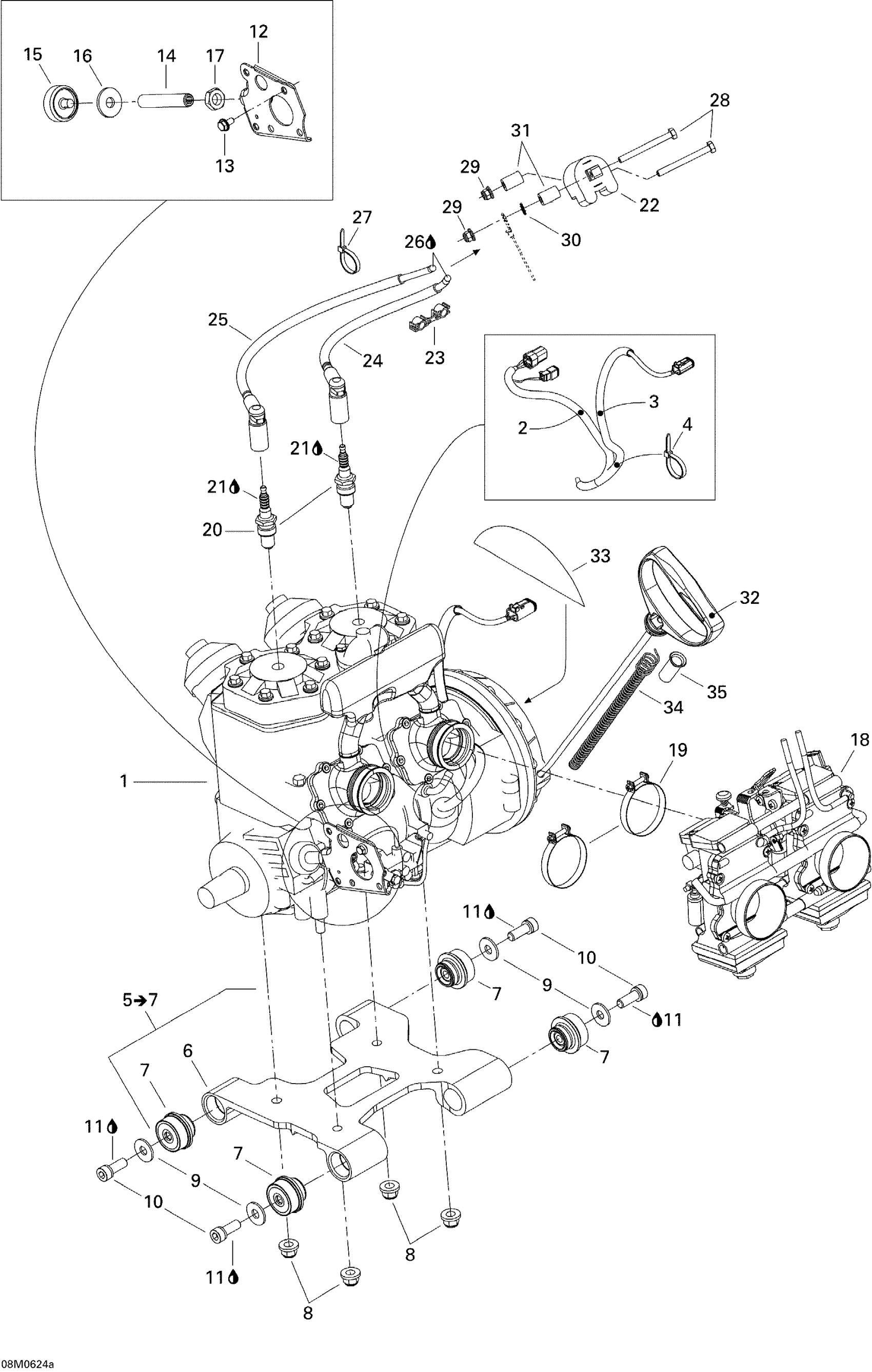

Ski-Doo MX Z 800 HO Renegade & Renegade X, 2006 Engine 1 Diagram

#

Description
Price

1

Engine 793 HO | 800 H.O.

400702632

Unavailable

2

Was 409901800 Tubing (13 mm)

219704400

$10.79

3

Tubing 10 MM 1000MM Long

219704407

$2.52

4

Tie Wrap 142 mm

293750002

$1.01

5

Engine Support Ass'y | Includes 2 to 4

512060050

Unavailable

6

ENGINE SUPPORT - Call your local BRP dealership

512060051

Unavailable

7

Rubber Mount

512059691

$43.25

8

Hex. Flange Elastic Nut M10

233201414

$1.45

9

Flat Washer M10 | 4X4

250200014

$1.34

10

Socket Head Screw M10 X 25

205002544

$1.43

11

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

12

PLATE - Call your local BRP dealership

512059840

Unavailable

13

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

14

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

15

STOPPER - Call your local BRP dealership

512059610

Unavailable

16

WASHER - Call your local BRP dealership

512059057

Unavailable

17

Hex. Jam Nut M14

232170411

$1.43

18

Carburetor Kit TM40-B322

403138778

Unavailable

19

Gemi Clamp

512059835

$10.21

20

Spark Plug NGK BR9ECS

415128524

$11.13

21

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

22

Ignition Coil

512059968

$48.48

23

Plastic Clip, Spark Plug Wire

410914600

$5.30

24

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

Unavailable

25

Cable Ass’y, 375 mm

512059696

$82.06

26

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

27

Tie-Rap 180 mm

414115200

$0.10

28

Hex. Screw M6 X 60

207066044

$0.64

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

30

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

31

Spacer

517203200

$14.90

32

Starter Grip

572084400

$14.10

33

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

34

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

35

TUBE - Call your local BRP dealership

512059536

Unavailable
