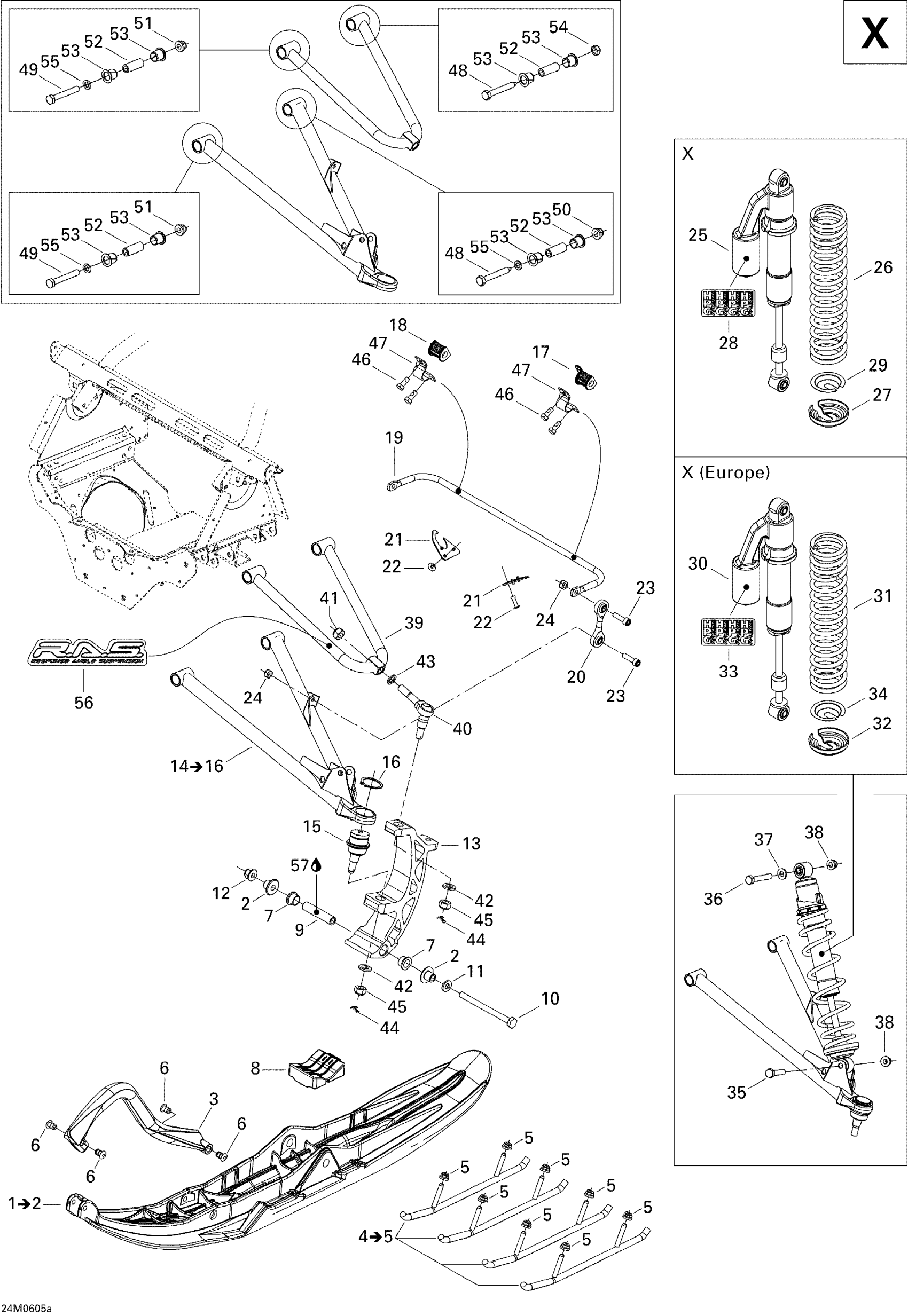

Ski-Doo MX Z 800 HO Adrenaline & X, 2006 07- Front Suspension And Ski X Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$164.49

1

Deep Black, LH Pilot 5.7 Ski

505072854

$179.99

2

Ski Bushing

505071781

$16.18

3

Yellow Handle | Model-MX-Z TNT

505070917

$42.49

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$92.99

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Retainer 17mm long

505071812

$5.95

7

Leg Bushing

505072690

$12.49

8

Ski Stopper

505071779

$18.78

9

Spacer

506133300

$23.99

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

11

Washer

732900049

$0.58

12

Flange Nut M10

732610084

$6.79

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16

860512300

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16

860512200

Unavailable

15

Ball Joint

505073636

$51.99

16

Circlip

293370035

$2.64

17

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

18

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

19

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

20

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

21

PLUG - Call your local BRP dealership

505071253

Unavailable

22

Pop Rivet 3/16"

293150103

$0.55

23

Socket Head Screw M8 X 30

205083044

$1.15

24

Hex. Elastic Stop Nut M8

232581414

$0.56

25

RH FRONT SHOCK - Call your local BRP dealership

505071204

Unavailable

25

LH Front Shock

505071205

Unavailable

26

SPRING - Call your local BRP dealership | (Europe)

505071834

Unavailable

27

Spring Stopper

706200881

$12.99

28

Shock Decal | X

516002748

Unavailable

29

Cap

706200785

$4.69

30

RH Front Shock | X Europe

505071949

Unavailable

30

LH Front Shock | X Europe

505071950

Unavailable

31

SPRING - Call your local BRP dealership | (Europe)

505071834

Unavailable

32

Spring Stopper

706200881

$12.99

33

Shock Decal | X

516002748

Unavailable

34

Cap

706200785

$4.69

35

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

36

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

37

Washer

503189564

$0.74

38

Hex. Flange Elastic Nut M10

233201414

$1.58

39

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

40

Upper Ball Joint

505072257

$17.58

41

Hex. Flange Elastic Nut M12

250000047

$1.90

42

Flat Washer 12 mm

234021410

$0.72

43

Washer

503189276

$3.28

44

Cotter Pin

211400017

$0.33

45

Hex. Flange Elastic Nut M12

250000047

$1.90

46

Hex. Screw With Nylon

250000118

Unavailable

47

CLAMP - Call your local BRP dealership

506095800

Unavailable

48

Hex. Screw M10 X 75

250001063

$13.16

49

Hex. Screw M10 X 75

250001063

$13.16

50

Hex. Flange Elastic Nut M10

250100165

$0.85

51

Hex. Flange Elastic Nut M10

250100165

$0.85

52

Bushing

505070567

$24.99

53

Arm Bushing

505070566

$3.28

54

Elastic Flange Nut M10

232501416

$1.48

55

Washer

503189564

$0.74

56

R.a.s. Suspension Decal

516002747

Unavailable

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
