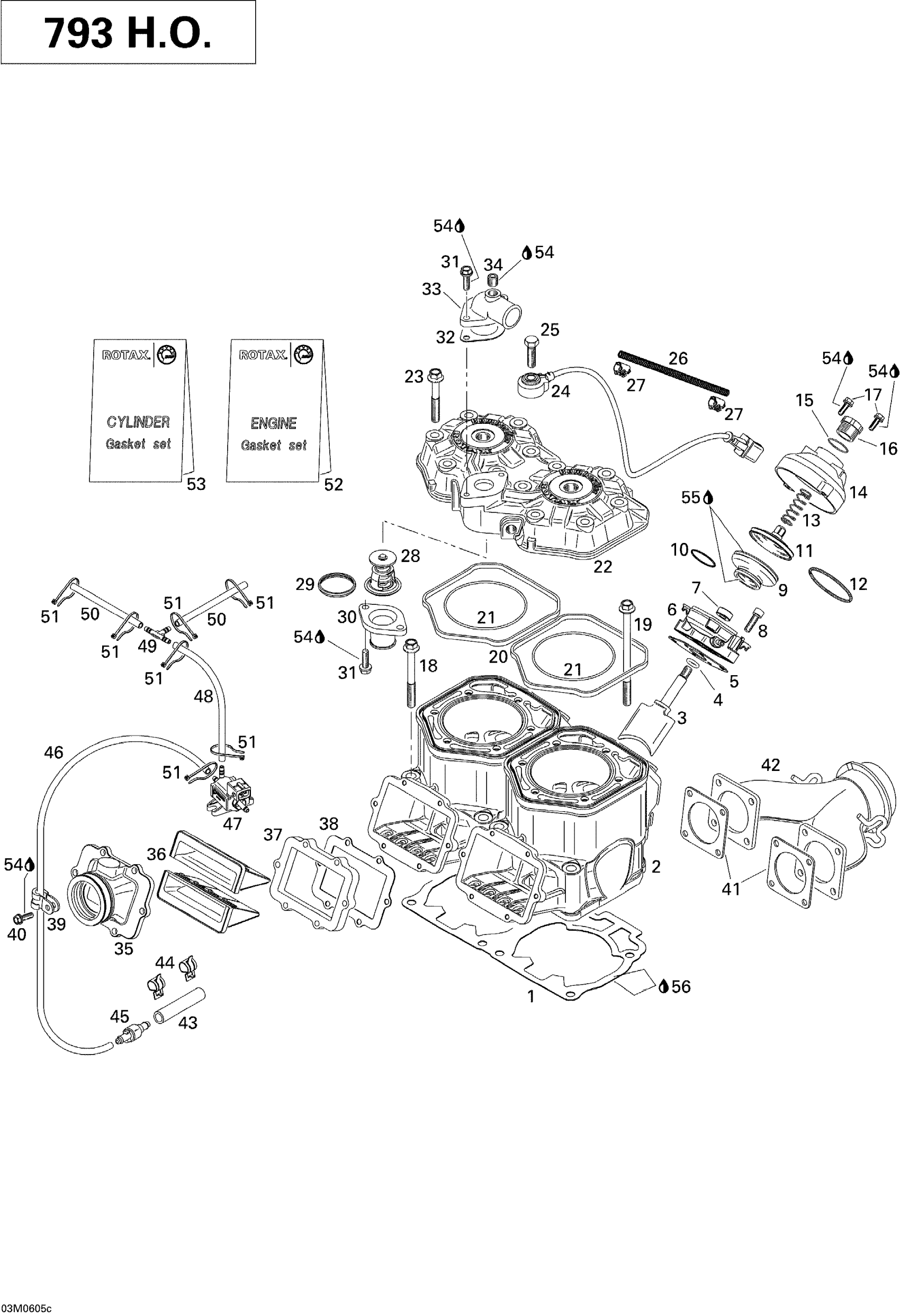

Ski-Doo MX Z 800 HO Adrenaline & X, 2006 Cylinder, Exhaust Manifold And Reed Valve 793HO Diagram

#

Description
Price

1

GASKET 0.5 - Call your local BRP dealership

420931838

Unavailable

1

GASKET 0.6 - Call your local BRP dealership

420931837

Unavailable

1

GASKET 0.7 - Call your local BRP dealership

420931964

Unavailable

1

GASKET 0.8 - Call your local BRP dealership

420931839

Unavailable

2

NICASIL CYLINDER - Call your local BRP dealership

420613852

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854465

Unavailable

4

O-Ring

420430110

$4.15

5

Gasket

420931542

$6.42

6

VALVE HOUSING - Call your local BRP dealership

420854454

Unavailable

7

Oil Seal | Included in gasket kit

420950732

$8.09

8

Socket Head Screw M6 X 25

205062544

$1.01

9

Bellows

420260729

$36.54

10

Hose Spring This part replaces 420838253.

420838255

$7.01

11

Exhaust Valve This part replaces 290253257.

420854449

$34.30

12

Hose Spring This part replaces 420239048.

420939281

$6.88

13

SPRING - Call your local BRP dealership

420239941

Unavailable

14

Valve Cover This part replaces 420911558.

420911559

$27.58

15

O-Ring

420430220

$7.79

16

Adjuster Screw

420241221

$12.15

17

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$1.99

18

Hex. Collar Screw

420640524

$11.18

19

Hex. Collar Screw

420640534

$13.18

20

Rubber Ring

420931590

$5.52

21

O-Ring | Included in gasket kit

420931410

$3.06

22

CYLINDER HEAD COVER - Call your local BRP dealership

420923827

Unavailable

23

Hex. Screw M8 X 56.5

420941627

$8.09

24

Noise Sensor

270000484

$75.34

25

Hex. Screw M8 X 35

207083544

$1.06

26

TUBE - Call your local BRP dealership

420460010

Unavailable

27

CLIP - Call your local BRP dealership

420960890

Unavailable

28

Thermostat This part replaces 414834100.

420922519

$57.43

29

Sealing Ring

420931272

$14.90

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

31

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

32

Gasket

420850338

$9.97

33

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

34

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

35

Intake Socket This part replaces 420667109.

420667276

$70.87

36

Reed Valve Ass'y

420924798

$38.03

37

DISTANCE FLANGE - Call your local BRP dealership

420924820

Unavailable

38

Gasket

420630815

$13.18

39

Open Clamp

414176000

$1.81

40

TAPTITE SCREW M5 X 35 - Call your local BRP dealership

420641840

Unavailable

41

Gasket

420931850

$11.43

42

EXHAUST MANIFOLD - Call your local BRP dealership

420973713

Unavailable

43

High Pressure Air Hose 50 mm

420660561

Unavailable

44

Norma Spring Clamp

293650214

$14.90

45

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

46

Was 420660574 Pressure Hose 280 mm

219704352

$202.21

47

Solenoid Valve

270600005

$45.49

48

High Pressure Air Hose, 180 mm

420660571

$12.18

49

T-Fitting

293710068

$7.57

50

PRESSURE HOSE 120 MM - Call your local BRP dealership

420660573

Unavailable

51

Tie Wrap 94 mm | 4X4

293750001

$0.96

52

Gasket Engine Kit

420888741

$268.63

53

CYLINDER GASKET - Call your local BRP dealership

420888745

Unavailable

54

Loctite 243, 10 ml

293800060

$21.49

55

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

56

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48
