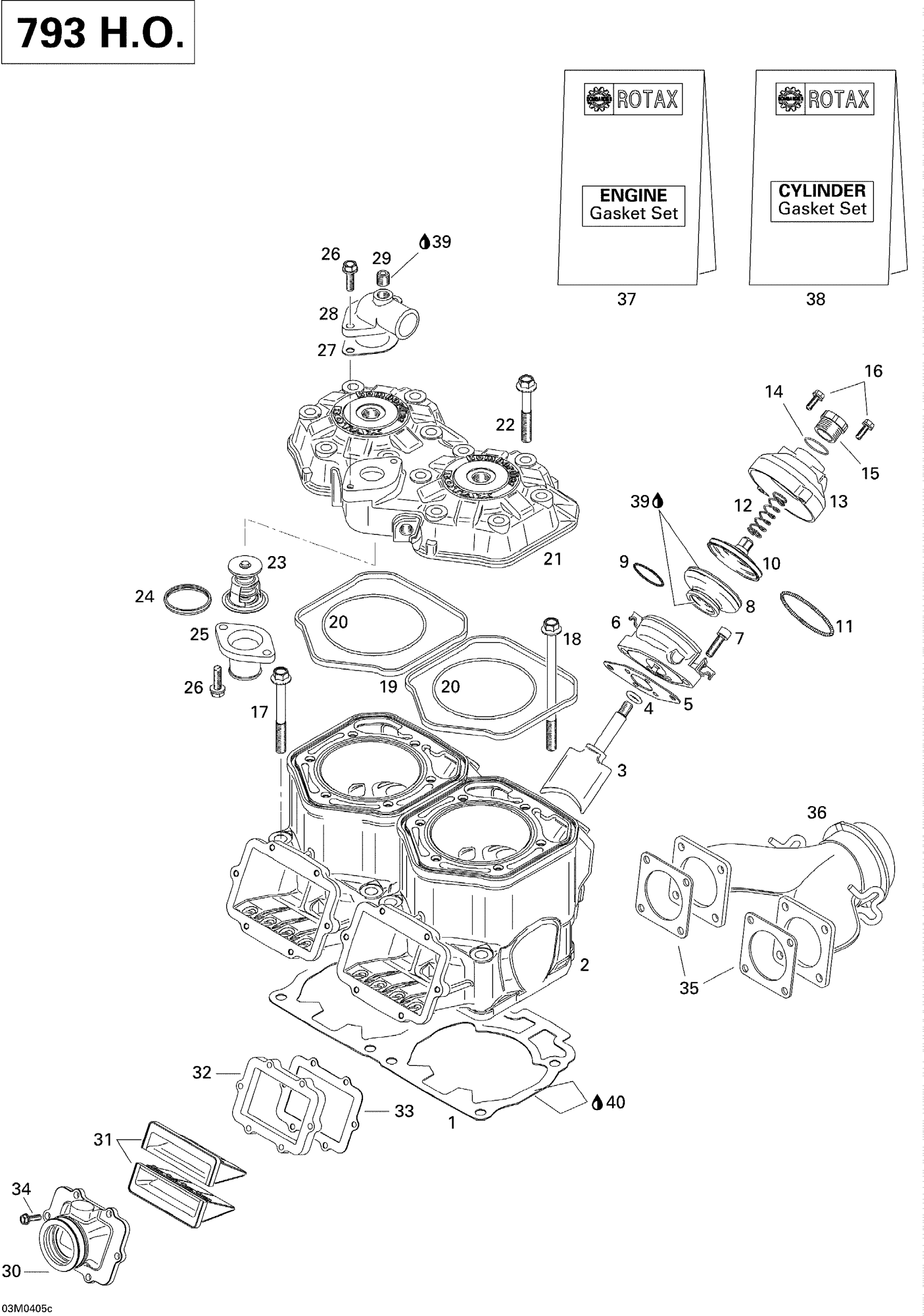

Ski-Doo MX Z 800 HO Adrenaline/X, 2004 Cylinder, Exhaust Manifold, Reed Valve (793 HO) Diagram

#

Description
Price

1

GASKET 0.5 - Call your local BRP dealership

420931838

Unavailable

1

GASKET 0.6 - Call your local BRP dealership

420931837

Unavailable

1

GASKET 0.7 - Call your local BRP dealership

420931964

Unavailable

1

GASKET 0.8 - Call your local BRP dealership

420931839

Unavailable

2

NICASIL CYLINDER - Call your local BRP dealership

420613852

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854465

Unavailable

4

O-Ring

420430110

$3.61

5

Gasket

420931542

$6.62

6

Valve Housing

420854455

$75.99

7

Socket Head Screw M6 X 25

205062544

$0.88

8

Bellows

420260729

$37.66

9

Hose Spring This part replaces 420838253.

420838255

$6.11

10

Exhaust Valve This part replaces 290253257.

420854449

$29.87

11

Hose Spring This part replaces 420239048.

420939281

$5.99

12

SPRING - Call your local BRP dealership

420239941

Unavailable

13

Valve Cover This part replaces 420911558.

420911559

$24.02

14

O-Ring

420430220

$8.03

15

Adjuster Screw

420241221

$12.52

16

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

17

Hex. Collar Screw

420640524

$11.52

18

Hex. Collar Screw

420640534

$13.58

19

Rubber Ring

420931590

$5.69

20

O-Ring | Included in gasket kit

420931410

$2.67

21

Cylinder Head Cover, Silver

420923825

Unavailable

22

Hex. Screw M8 X 56.5

420941627

$8.34

23

Thermostat This part replaces 414834100.

420922519

$59.20

24

Sealing Ring

420931272

$15.35

25

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

26

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

27

Gasket

420850338

$10.28

28

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

29

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

30

Intake Socket This part replaces 420667109.

420667276

$73.05

31

Reed Valve Ass'y

420924798

$39.20

32

DISTANCE FLANGE - Call your local BRP dealership

420924820

Unavailable

33

Gasket

420630815

$13.58

34

TAPTITE SCREW M5 X 35 - Call your local BRP dealership

420641840

Unavailable

35

Gasket

420931850

$11.78

36

EXHAUST MANIFOLD - Call your local BRP dealership

420973713

Unavailable

37

Gasket Engine Kit

420888741

$276.89

38

CYLINDER GASKET - Call your local BRP dealership

420888745

Unavailable

39

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

40

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97
