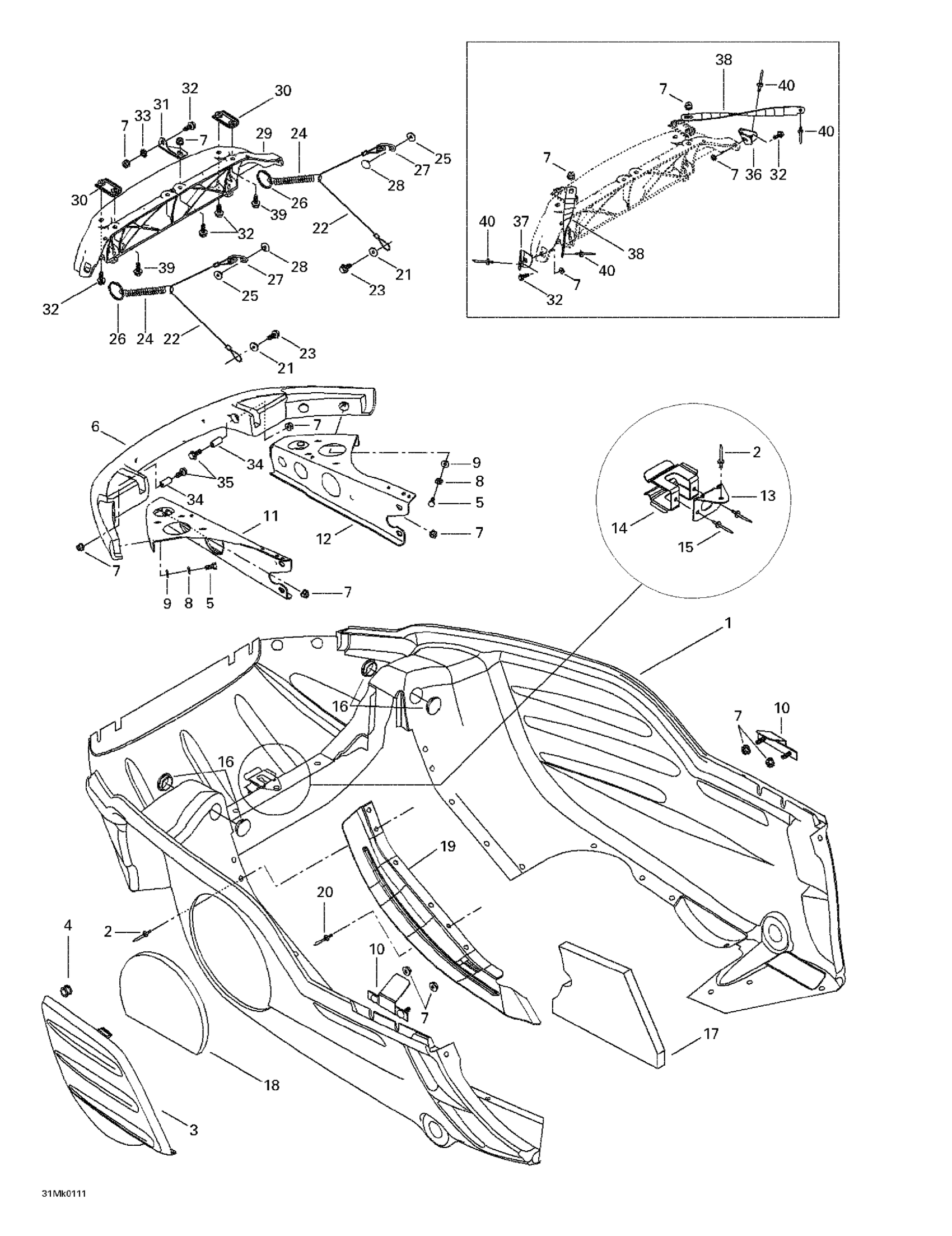

Ski-Doo MX Z 800, 2001 09- Bottom Pan Diagram

#

Description
Price

1

2000 Yellow, Bottom Pan

502006588

Unavailable

Deep Black, Bottom Pan

502006589

Unavailable

Bottom Pan (Red) B-215 | MX-Z 600. MX-Z 700.

502006627

Unavailable

2

Pop Rivet 3/16"

390906800

$0.93

Deep Black, Pop Rivet 3/16

390906700

Unavailable

Pop Rivet 3/16"

390906800

$0.93

3

Bottom Pan Door | B-190 YELLOW

502006511

Unavailable

BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership

502006506

Unavailable

Bottom Pan Door (Red) B-215 | MX-Z 600. MX-Z 700.

502006628

Unavailable

4

Grommet

414036300

$2.79

5

Hex. Screw M6 X 14

207161444

$0.58

6

Bumper

502006535

Unavailable

Bumper, Black

502006719

$101.49

Bumper, Black

502006719

$101.49

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Lock Washer M6, Black

234161471

$0.53

9

Flat Washer

224061121

$0.53

10

Bracket

502006500

Unavailable

11

LH SUPPORT - Call your local BRP dealership

502006597

Unavailable

12

RH Support

502006602

Unavailable

13

Belt Support

502006599

Unavailable

14

Bracket

517281905

$18.49

15

Pop Rivet 3/16"

390402400

$0.35

16

Black, Nylon Cap

414916600

$4.69

17

Bottom Foam

502006558

Unavailable

18

Bottom Pan Door Foam

502006559

Unavailable

19

Bottom Pan Protector | 700 / WITH GRILL

502006593

Unavailable

20

Pop Rivet 3/16"

390402200

$0.35

21

Washer | DS 650 X

391301600

$0.48

22

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Spring

415043300

Unavailable

25

Washer

517124300

$0.19

26

RING - Call your local BRP dealership

415058300

Unavailable

27

Bracket

517262800

Unavailable

28

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

29

Hinge

517302631

$48.99

30

HINGE SIDE PLATE - Call your local BRP dealership

517302176

Unavailable

31

Hinge Center Plate

517302045

Unavailable

32

Hex. Flange Screw M6 X 16

207661654

$2.11

33

Lock Washer Serrated M6

250200041

$1.15

34

BUSHING - Call your local BRP dealership

517302179

Unavailable

35

Hex. Flange Screw M6 X 35

207663544

$0.90

36

RH Corner Support

517302254

Unavailable

37

LH Corner Support

517302255

Unavailable

38

Hood Clamp

517302256

Unavailable

39

Hex. Flange Screw M6 X 25

207662544

$0.64

40

Pop Rivet 3/16"

390406500

$0.88
