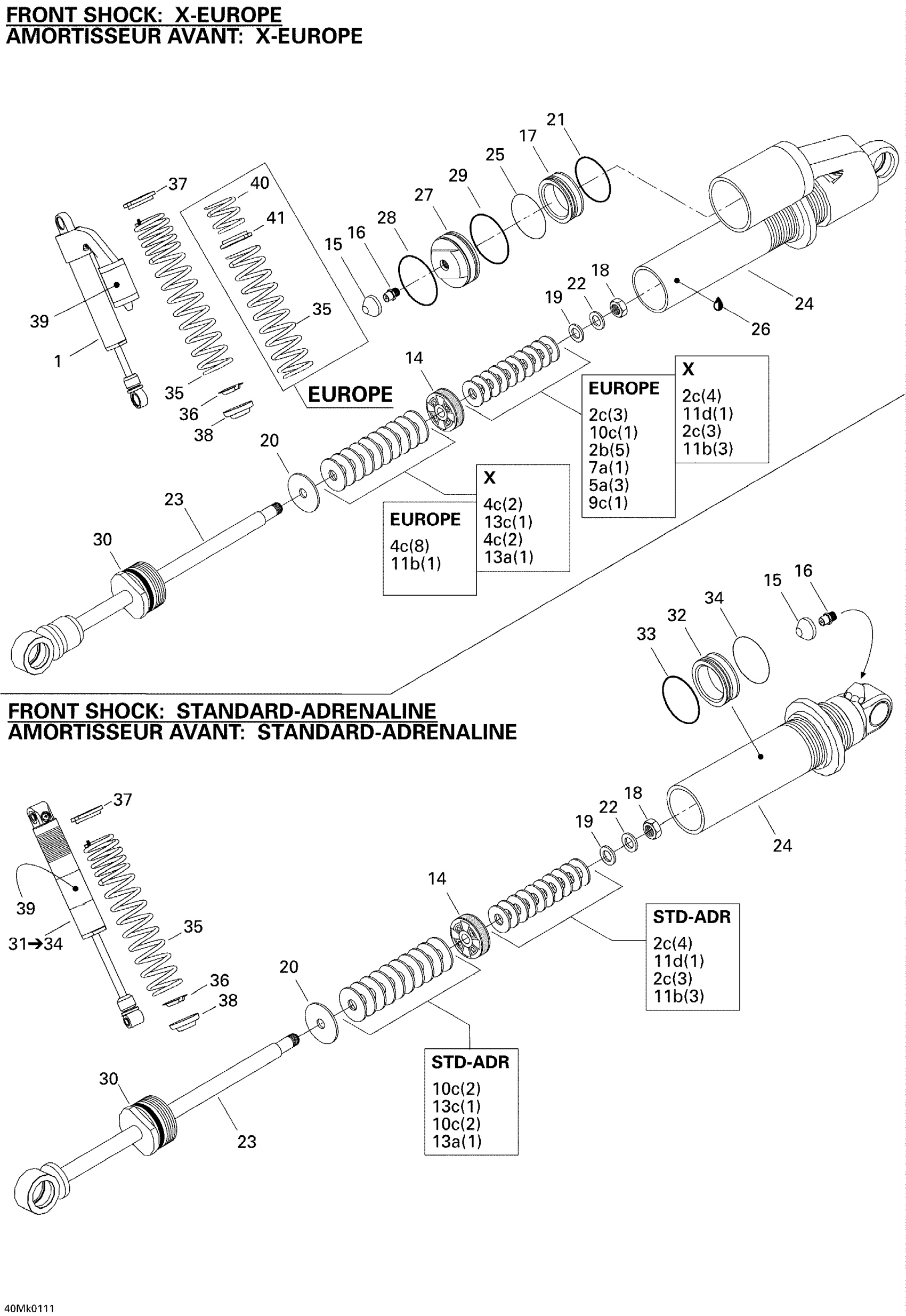

Ski-Doo MX Z 800, 2001 07- Front Take Apart Shocks Diagram
#
1
Front Shock RH (X) | MX-Z 600. MX-Z 700.
505070641
Unavailable
Front Shock RH (EUROPE) | Europe.
505070601
Unavailable
Front Shock LH (X) | MX-Z 600. MX-Z 700.
505070642
Unavailable
Front Shock LH (EUROPE) | Europe.
505070600
Unavailable
2A
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
2B
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
2C
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
3A
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
3B
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
4A
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
4B
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
4C
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
5A
Not Available As Spare Part - Friction Washer
Unavailable
6A
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
6B
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
7A
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
8A
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
8B
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
8C
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
9A
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
9B
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
9C
Not Available As Spare Part - Friction Washer
Unavailable
10A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
10B
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
10C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
10D
Leaf Valve Ø16 X 0.114 (C36)
415083900
Unavailable
11A
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
11B
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
11C
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
11D
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
12A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
12B
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
12C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
12D
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
13A
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
13B
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
13C
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
13D
Leaf Valve Ø12 x 0.114 (mm) | MX Z X 440.
415093824
Unavailable
14
Piston (C36)
414888304
Unavailable
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
15
Air Valve Cap | MX Z X 440.
503189307
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
16
AIR VALVE - Call your local BRP dealership
414888314
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
17
FREE PISTON - Call your local BRP dealership
415093812
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
27
Guide
415093808
Unavailable
28
STOP RING - Call your local BRP dealership
415093805
Unavailable
30
Sealing Cap
415093819
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
31
Front Shock Ass'y (STD-ADR)
505070512
Unavailable
32
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
35
Spring (X) | MX-Z 600. MX-Z 700.
505070692
Unavailable
Spring (STD-ADR)
505070181
Unavailable
Spring
505070575
Unavailable
39
Shock Decal
516000183
Unavailable
40
Short Spring (EUROPE) | Europe.
505070576
Unavailable
41
Spring Spacer
503182200
Unavailable
