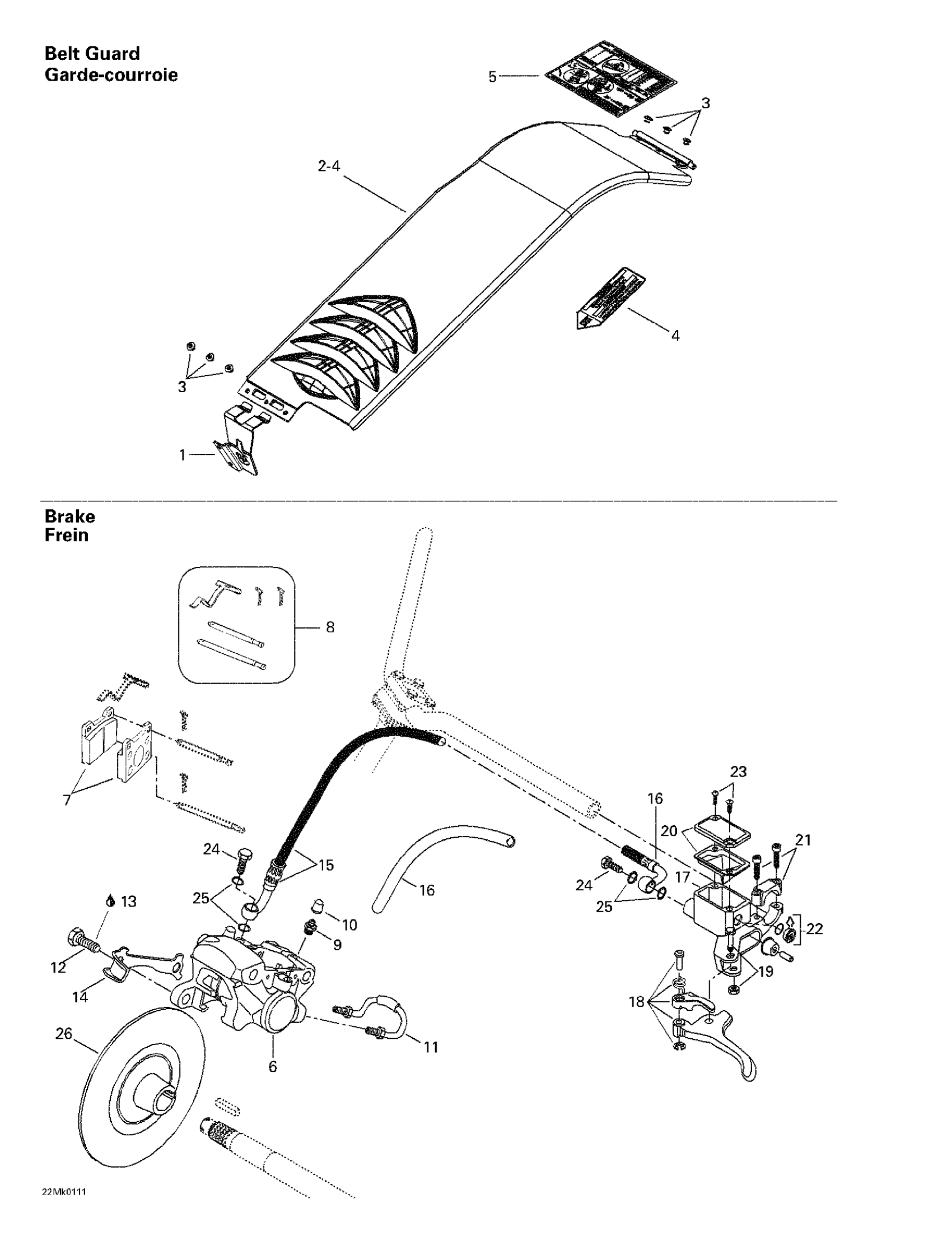

Ski-Doo MX Z 800, 2001 06- Hydraulic Brake And Belt Guard Diagram
#
Description
Price
1
Bracket
417300001
Unavailable
2
Belt Guard Ass'y | Includes 2 - 4.
417300002
Unavailable
4
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership
516002670
Unavailable
5
Calibration Label (X) | MX-Z 600. MX-Z 700.
516000952
Unavailable
Ajustement Decal
516000708
Unavailable
6
Caliper | Includes 10 - 15.
414920000
Unavailable
Caliper (X) | MX Z 600. MX Z 700. MX Z 800.
507032204
Unavailable
8
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
9
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
10
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
11
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
14
Locking Tab
507029900
Unavailable
15
HOSE - Call your local BRP dealership
507032237
Unavailable
HOSE (RACING) - Call your local BRP dealership | MX-Z 700.
415064600
Unavailable
17
Master Cylinder | Includes 1 to 8
507032293
Unavailable
18
BRAKE SHORT LEVER ASSY - Call your local BRP dealership
507032268
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
22
WINDOW - Call your local BRP dealership
414990600
Unavailable
23
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
26
BRAKE DISK - Call your local BRP dealership
507031300
Unavailable
Brake Disk | X & Renegade X
507032301
Unavailable
