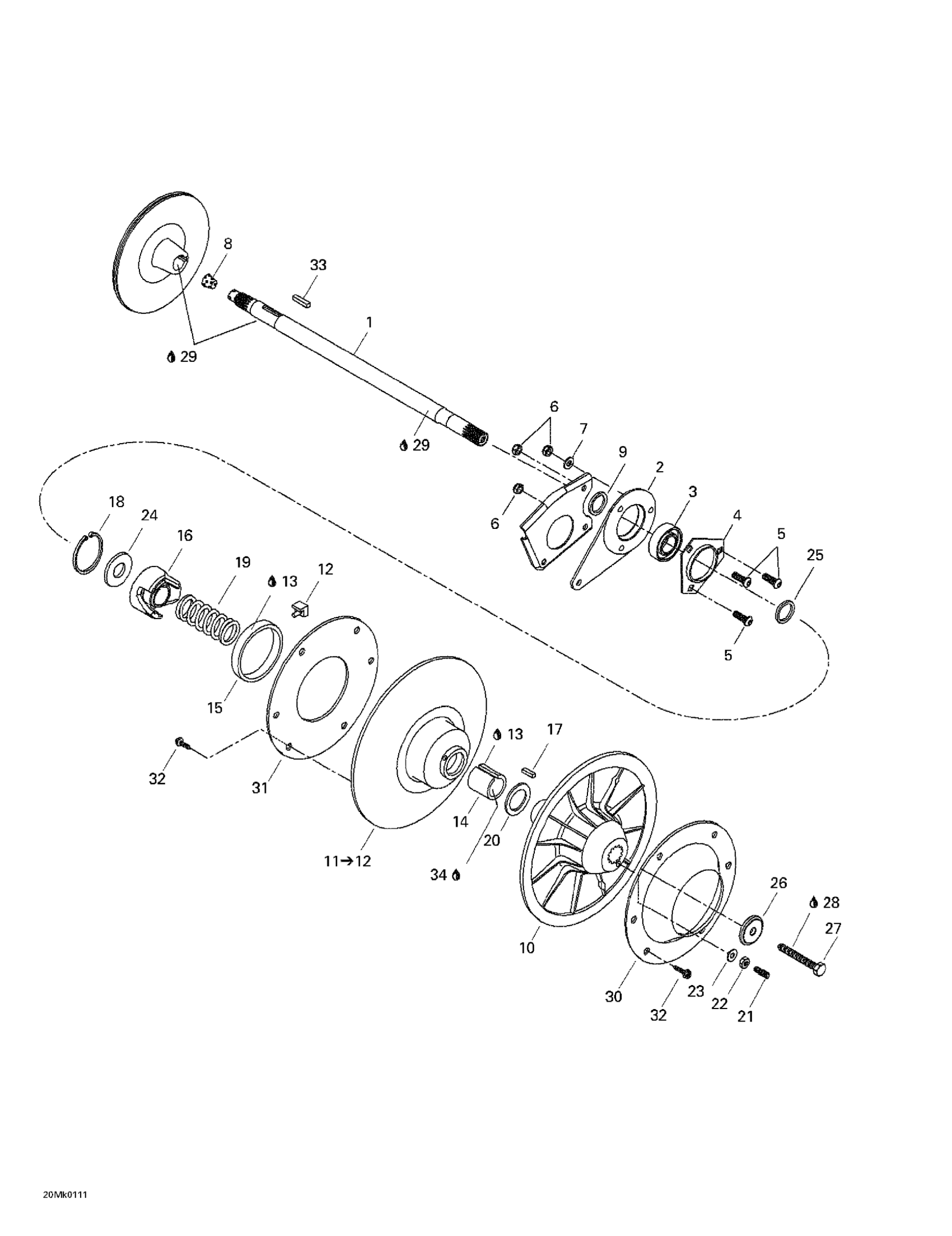

Ski-Doo MX Z 800, 2001 05- Driven Pulley Diagram

#

Description
Price

1

COUNTER SHAFT - Call your local BRP dealership

501026300

Unavailable

2

Spacer (Casting)

080044200

$21.99

3

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

4

FLANGE - Call your local BRP dealership

501025000

Unavailable

5

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205482546

Unavailable

6

Hex. Elastic Stop Nut M8

232581414

$0.56

7

Flat Washer 8 mm

234081410

$0.83

8

CORK - Call your local BRP dealership

414784800

Unavailable

9

Spacer

504149100

$12.99

10

Fixed Flange | 380 F.

417126477

Unavailable

11

Sliding Flange Ass’Y | Includes 3 - 7.

417126486

Unavailable

12

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

13

Loctite 609, 10 ml

413703100

$26.99

14

BUSHING - Call your local BRP dealership

415011200

Unavailable

15

GARLOCK BUSHING - Call your local BRP dealership

414876600

Unavailable

16

Cam

417126380

Unavailable

17

Key

414820800

Unavailable

18

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

19

YELLOW SPRING - Call your local BRP dealership

415092800

Unavailable

20

Thrust Washer

504141900

Unavailable

21

Socket Set Screw M6 X 30

206263044

Unavailable

22

Hex. Nut M6

232061414

$0.53

23

WASHER - Call your local BRP dealership

420245370

Unavailable

24

Washer

504141800

Unavailable

25

Spacer

504149100

$12.99

26

Strength Washer

517302322

$12.63

27

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

28

Loctite 243, 10 ml

293800060

$21.49

29

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

30

CUP - Call your local BRP dealership

504142000

Unavailable

31

Ring

504142100

Unavailable

32

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

33

KEY - Call your local BRP dealership

507021300

Unavailable

34

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
