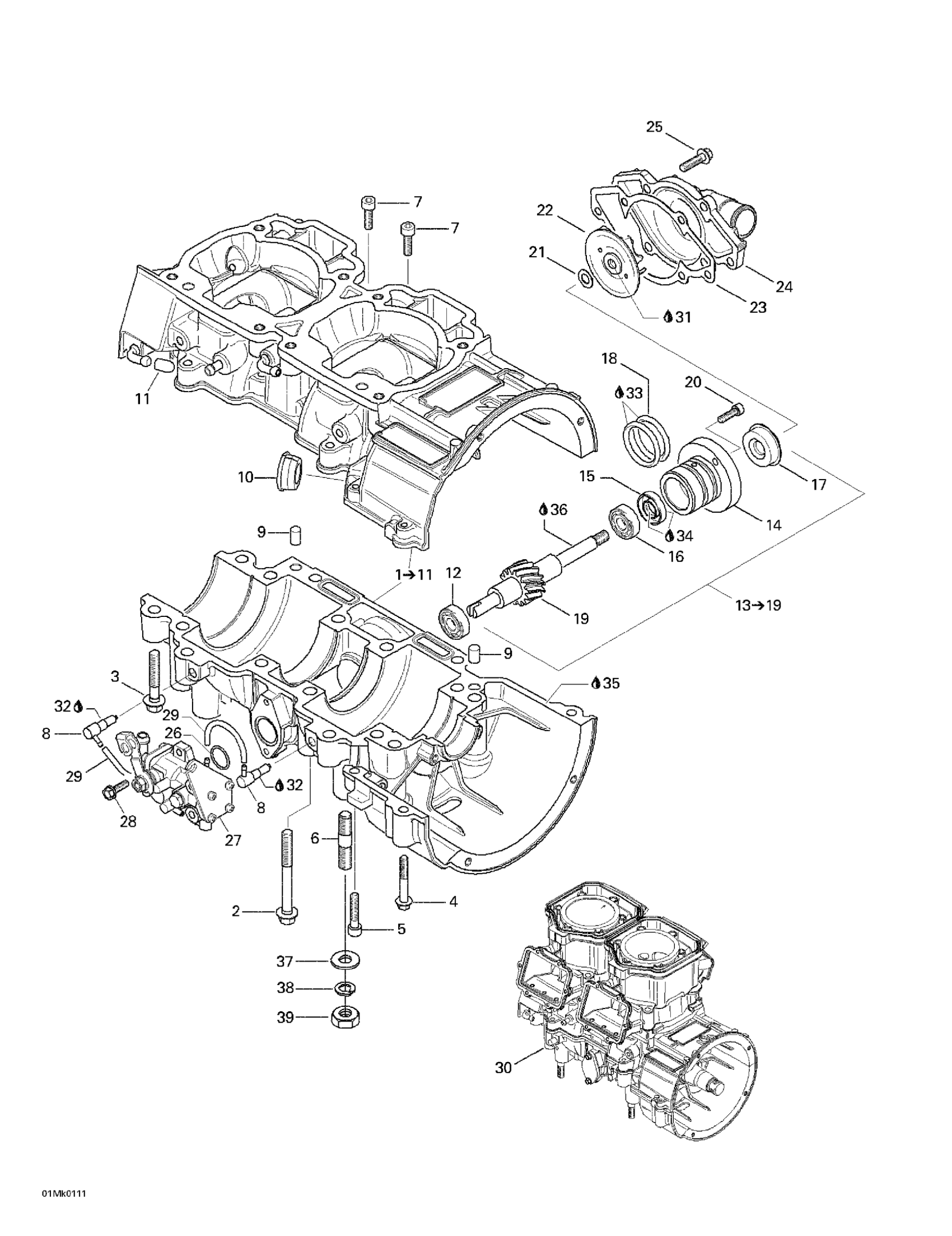

Ski-Doo MX Z 800, 2001 01- Crankcase, Water Pump And Oil Pump Diagram

CRANKCASE ASS'Y (800) - Call your local BRP dealership | Includes 1 - 11.

420888279

Unavailable

Hex. Collar Screw M8 X 75

420640836

$13.16

Hex. Collar Screw M8 x 45

420640436

Unavailable

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.44

Socket Head Screw M6 X 30

205063044

$1.69

Stud M10 X 23

420941644

Unavailable

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

Check Valve

420956511

$35.99

Center Pin 8 X 12

420632010

$4.01

Cable Grommet

420860965

$14.28

Cap

420960770

$4.12

Ball Bearing

420232100

$20.99

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$369.99

Not Available As Spare Part - Friction Washer

Unavailable

Oil Seal

420230195

$15.36

Ball Bearing

420232100

$20.99

Rotary Seal

420650371

$43.49

O-Ring

420950890

$4.44

Not Available As Spare Part - Friction Washer

Unavailable

Allen Screw M5 x 16

420840514

$1.90

Thrust Washer

420227945

$4.01

Water Impeller

420222505

$19.99

Gasket This part replaces 420931810.

420931811

$13.76

Water Pump Housing

420922630

$61.49

Hex. Screw M6 X 25

420240034

$1.90

O-Ring

293300041

$8.57

Oil Pump Ass'y | Formula Deluxe 700.

420888422

Unavailable

Taptite Screw M5 X 16

420941928

Unavailable

Oil Hose 1500Mm Long

219704404

$17.26

SHORT BLOCK ASS'Y (800) - Call your local BRP dealership

420079302

Unavailable

Loctite 243, 10 ml

293800060

$21.49

Sealant Loctite 648

219703000

$45.99

Dow Corning 111, 150 g

413707000

$59.99

Petamo Grease, GHY133N, 400 g

420899271

$67.99

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

Flat Washer 10 mm

234001410

$1.26

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

Hex. Nut M10 X 1.5

232006414

$1.37
