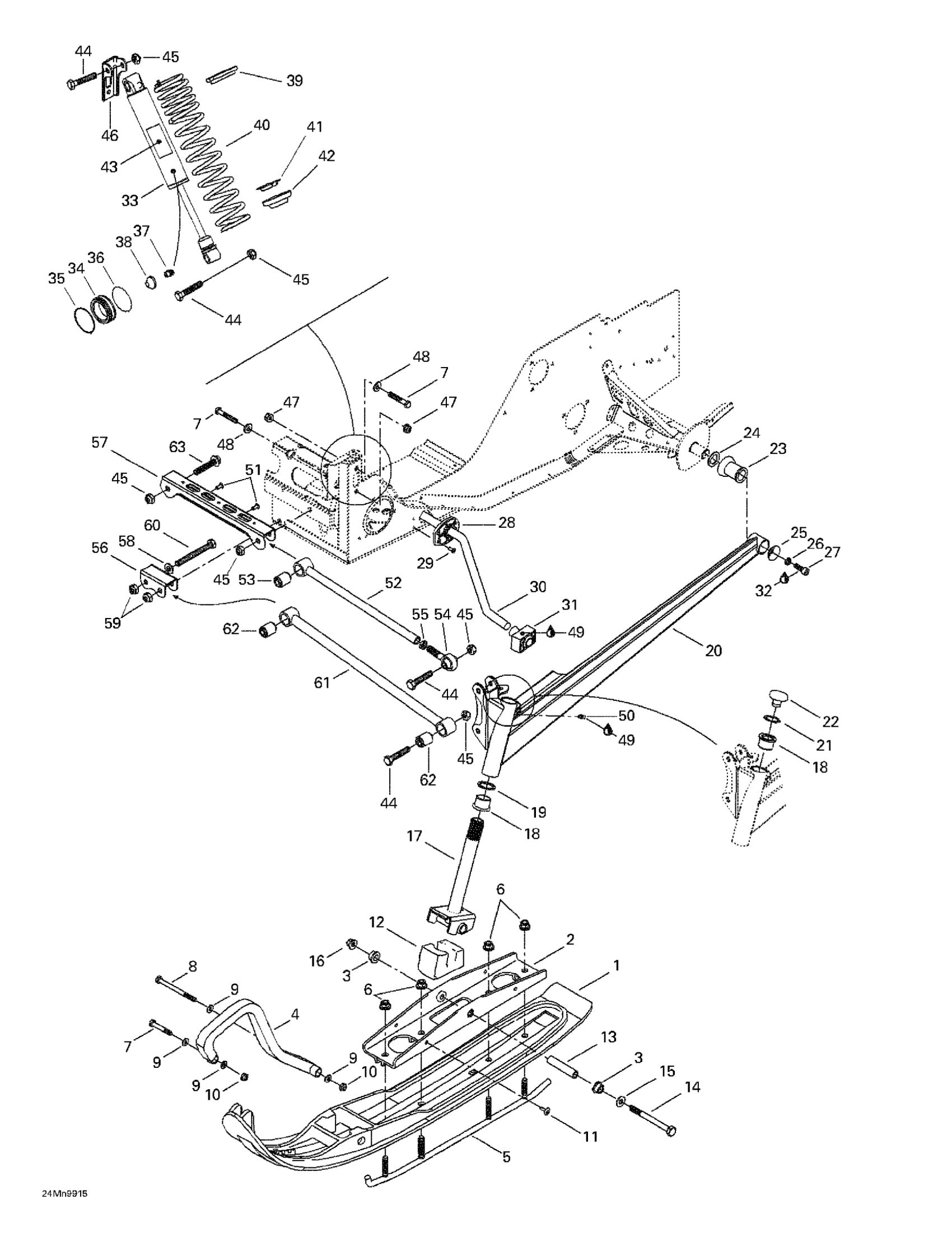

Ski-Doo MX Z 700, 1999 07- Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

$127.99

2

Bridge-ass'y | Includes 2 - 3.

505070055

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

$35.99

5

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

6

Elastic Locking Nut M10 X 1.5

233601416

$1.69

7

Hex. Screw M8 X 50

207085044

$1.48

8

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

9

Flat Washer 8 mm

234081410

$0.83

10

Hex. Elastic Stop Nut M8

232581414

$0.56

11

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

12

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

13

Spacer

506133300

$23.99

14

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

15

Washer

732900049

$0.58

16

Flange Nut M10

732610084

$6.79

17

Ski Leg

506151234

Unavailable

18

Cushion

505070003

$9.23

19

WASHER - Call your local BRP dealership

505070004

Unavailable

20

RH Arm

505070434

Unavailable

LH Arm

505070435

Unavailable

21

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

22

Cap

572091300

$12.99

23

DAMPER - Call your local BRP dealership

570062200

Unavailable

24

WASHER - Call your local BRP dealership

503146700

Unavailable

25

CUP - Call your local BRP dealership

506079600

Unavailable

26

Lock Washer 8 mm

234181401

$0.92

27

Socket Head Screw M8 X 25

205082544

$1.15

28

BUSHING - Call your local BRP dealership

505070139

Unavailable

29

Pop Rivet 3/16"

390402300

$0.75

30

Stabilisator | MXZ 600.

505070216

Unavailable

31

BALL JOINT BLOCK - Call your local BRP dealership

505070121

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Front Shock(USA Only) | Includes 57 - 62.

505070186

Unavailable

34

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

35

O-Ring

414888312

$17.29

36

Piston Ring

503189308

$79.49

37

AIR VALVE - Call your local BRP dealership

414888314

Unavailable

38

Air Valve Cap

415127405

Unavailable

39

Spring Seat | MX Z 700.

505070306

Unavailable

40

Spring (STD-ADR)

505070181

Unavailable

41

Cap

706200785

$4.69

42

Spring Stopper

706200881

$12.99

43

Shock Decal

516000183

Unavailable

44

Hex. Screw M10 X 55

207005544

$2.22

45

Elastic Locking Nut M10 X 1.5

233601416

$1.69

46

RH SHOCK BRACKET - Call your local BRP dealership

518317518

Unavailable

LH Shock Bracket

518317519

Unavailable

47

Hex. Flange Elastic Nut M8

233281414

$1.47

48

Washer

506151245

$0.93

49

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

50

Grease Fitting

408200700

$3.49

51

Pop Rivet 3/16"

390402200

$0.35

52

UPPER ARM ASSY - Call your local BRP dealership | Includes 41 - 42. ADRENALINE & TRAIL

505070214

Unavailable

53

Bushing

505070025

Unavailable

54

Ball Joint

415068400

Unavailable

55

Nut Hexagonal RH.

232026414

$1.48

56

Lower Arm Bracket

505070011

Unavailable

57

Upper Arm Bracket

505070010

Unavailable

58

Flat Washer 10 mm

234001410

$1.26

59

Elastic Locking Nut M10 X 1.5

233601416

$1.69

60

Hex. Screw M10 x 95 | MXZ 600.

222009565

Unavailable

61

Lower Arm Ass'y | Includes 61 - 62. MXZ 600.

505070212

Unavailable

62

Bushing

505070025

Unavailable

63

Hex. Flange Screw M10 X 55

207605544

$3.38
